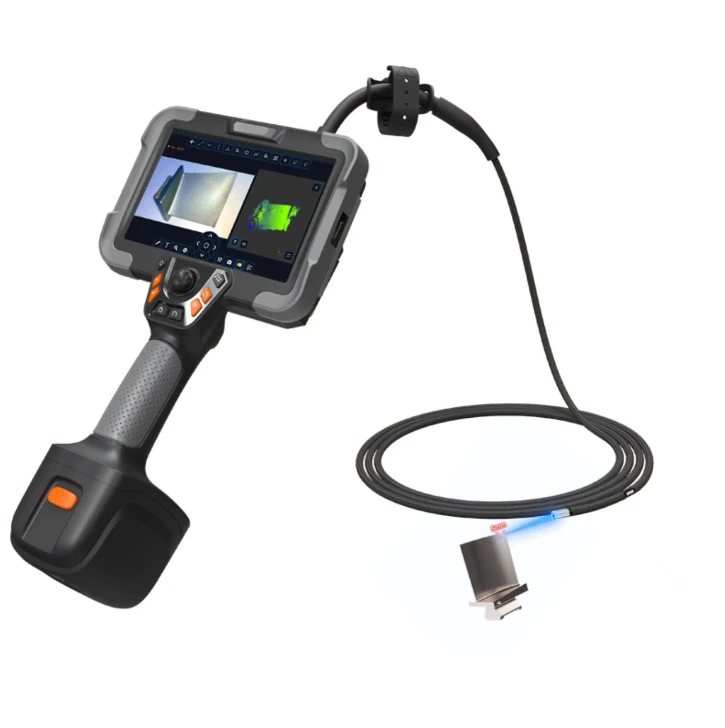

Thanks to core technological breakthroughs, motorized 3D measurement borescopes deliver clear imaging, stable field operation and precise quantitative measurement, reshaping the standard of modern industrial non-destructive testing. Below are four core criteria for equipment selection.
Clear Imaging Performance

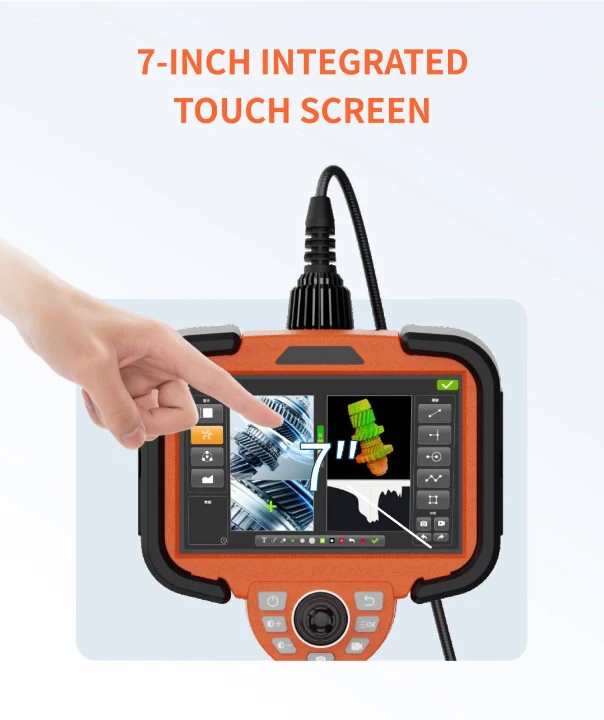

Dual HD binocular lens is the core component for sharp observation and effective 3D reconstruction. Prioritize products with no less than 1MP and full 1080P resolution to capture fine defect details. Configured with dimmable high-brightness LED fill lights plus wide field-of-view and large depth-of-field optical design, the probe keeps clear imaging at variable detection distances. Matched with industrial high-definition touch display, it enables full-view blind-spot-free real-time monitoring throughout inspection.
Stable Inspection Reliability
Premium models adopt industrial durable configurations: tungsten-wire braided insertion tube, titanium alloy housing and anti-abrasion sapphire probe lens, featuring outstanding waterproof, dustproof and wear-resistant performance to steadily cope with complicated harsh working conditions. Modular structural design allows flexible replacement of insertion tubes ranging from 1.0mm to 8.0mm in diameter and optional tube lengths for diversified scene matching. Built-in full 360° motorized articulation with stepping fine-adjustment and positioning lock guarantees stable probe positioning and consistent running performance.
Precise 3D Measuring Capacity
3D quantitative measurement is the core functional advantage of such equipment; purchasers shall check measuring precision, effective measuring range, available measuring modes and 3D modeling performance. Industrial standard precision requires accuracy up to 0.1mm or higher to satisfy high-end quantitative inspection demands. Effective measuring scope is determined by probe size and binocular optical parameters and must fit on-site practical detection needs. Qualified units support multiple measurement options: point-to-point, point-to-line, area calculation and depth reading, alongside real-time 3D point cloud modeling and offline re-analysis to fully restore target geometric features.
Practical Configuration for High Working Efficiency
Humanized functional design directly improves field inspection efficiency. Select models with swappable high-capacity lithium batteries to sustain long-hour continuous inspection. Essential configurations include ample built-in storage, multiple external data export ports, automatic professional inspection report generation and real-time over-temperature early warning function to facilitate later data sorting and equipment safety protection.
