In industrial non-destructive testing, visual inspection and precision measurement of narrow, enclosed cavities have long been prominent industry pain points. Traditional endoscopes can only realize simple visual observation, yet fail to meet high-precision quantitative inspection demands. Nowadays, the motorized 3D measurement borescope perfectly solves this technical difficulty.
What is the Motorized 3D Measurement Borescope
Integrated with 360° electronic steering, 3D modeling and high-precision measuring technology, the motorized 3D measurement borescope is professional 3D measuring equipment dedicated to industrial non-destructive testing, widely applied in aerospace, precision machinery, automobile manufacturing and other core industries. It adopts core binocular stereo vision measurement technology. Dual lenses generate disparity maps to collect 3D geometric data of detected targets and calculate actual defect dimensions. Its measuring accuracy reaches up to 0.1mm or higher, supporting 3D modeling and diverse measuring modes including point-to-point, point-to-line, polyline, area and depth measurement.
Core Components of Motorized 3D Measurement Borescope
This 3D inspection borescope adopts modular structural design. The main unit, insertion tube and power supply system are detachable, allowing fast replacement of probes with different diameters to fit diverse inspection environments.
It is equipped with full 360° motorized articulation system, high-definition binocular lenses for 3D point cloud imaging, industrial LCD touch display and dimmable high-brightness LED fill lights. The insertion tube is woven with high-strength tungsten wire, and the probe head is fitted with wear-resistant sapphire lens. Certain versions come with built-in temperature sensing modules to display real-time ambient temperature and trigger high-temperature safety alerts. The probe features wide temperature resistance and high waterproof dustproof grade.
It is powered by replaceable high-capacity lithium batteries, and built with HDMI, USB and SD card ports for convenient data export and external screen connection.

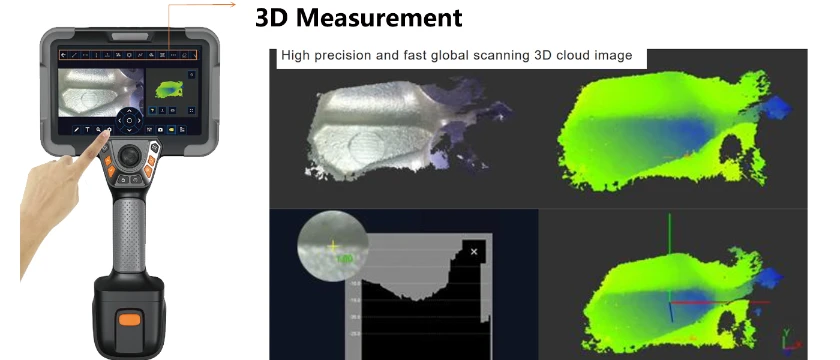

In terms of software system, it is equipped with intelligent file management and powerful image processing functions. Supported by binocular stereo photogrammetry algorithm, it completes 3D cloud scanning and modeling with measuring accuracy over 95%. Some intelligent models are capable of automatically generating standard professional inspection reports.
Thanks to outstanding high precision and high working efficiency, motor-driven 3D measurement videoscopes are widely popular across industrial non-destructive testing fields. They successfully drive industrial endoscopic inspection work from traditional qualitative visual judgment to accurate quantitative data analysis. In the future, motorized 3D measurement borescopes will keep upgrading towards higher definition, stronger intelligence and ultra-high measuring precision.
