Within industrial non-destructive testing, precision visual inspection and dimensional measurement inside narrow closed cavities have long stood as prominent industry challenges. Conventional endoscopes merely deliver visual observation yet fail to fulfill high-precision quantitative inspection demands, while motorized 3D measurement borescopes perfectly tackle such technical bottlenecks.
Definition & Core Working Principle
Integrated with full 360° motorized articulation, real-time 3D modeling and high-precision metering functions, the motorized 3D measurement borescope is dedicated industrial 3D measuring NDT equipment widely deployed across aerospace, precision machinery, automotive manufacturing and related core sectors.

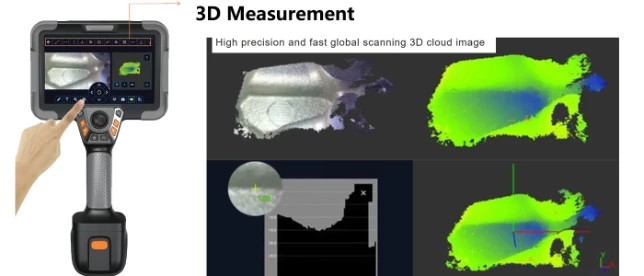

It takes binocular stereo vision as core technology: dual objective lenses generate disparity maps to capture complete 3D geometric data of detected workpieces for accurate defect dimension calculation. Its measuring precision hits 0.1mm or superior, and it supports diversified measuring options including point-to-point, point-to-line, polyline, area and depth measurement alongside full 3D reconstruction.
Core Structural Components
The whole unit follows modular split design; main controller, insertion tube and power unit are detachable for fast swap of different-diameter probes to fit diverse inspection environments.
• Mechanical part: Full 360° electrically controlled articulation structure, HD binocular dual lenses for 3D point cloud capture, dimmable high-luminance LED fill lights, industrial LCD touch display. Insertion shaft is braided with high-strength tungsten fiber, fitted with scratch-resistant sapphire lens on probe tip. Optional built-in temperature sensor realizes real-time ambient temperature readout and overtemperature alarm; the probe boasts wide working temperature range and high IP protection grade.
• Power & data interface: Powered by swappable large-capacity lithium batteries; reserved HDMI, USB and SD card ports for offline data storage and external screen output.
• Software system: Intelligent document management plus robust image processing built on binocular photogrammetry algorithm to finish 3D point cloud scanning & modeling, with overall measuring accuracy over 95%. Premium versions enable one-click auto generation of formal inspection reports.
Summary & Future Prospect
Benefiting from outstanding precision and inspection efficiency, motorized 3D measurement borescopes are extensively adopted for industrial NDT, driving the upgrade of endoscopic inspection from traditional qualitative visual judgment to standardized quantitative data analysis. In the long run, this equipment will keep iterating toward higher resolution, intelligent algorithm and ultra-high measuring accuracy.
