Product Definition & Core Working Principle
It is high-end industrial NDT equipment integrating 360° motorized steering, real-time 3D modeling and high-precision dimensional measurement functions.
Core Imaging Principle: Adopts binocular stereo vision technology; dual lenses simulate human binocular vision to reconstruct 3D spatial contour of internal detected objects.
Core Advantage: Different from traditional borescopes only for visual viewing, it realizes objective numerical measurement of cracks, corrosion and wear with precision up to 0.1mm and measurement accuracy above 95%, replacing subjective empirical estimation with accurate data.
Core Hardware Configuration
• Probe head: Dual high-definition objective lenses protected by wear-resistant sapphire anti-scratch glass.
• Insertion tube: Tungsten wire braided wear-resistant casing, equipped with full 360° electric articulated steering, micro-step fine adjustment and position locking function to avoid over-positioning during manual operation.
• Main controller: Modular quick-replace structure for different specifications of insertion tubes, matched with high-definition LCD touch screen and dimmable high-brightness LED light source, plus long-lasting rechargeable lithium battery.
• Environmental resistance: Standard IP industrial waterproof & dustproof grade; partial models are equipped with built-in temperature sensor for probe overtemperature protection alarm.
Main Industrial Application Fields

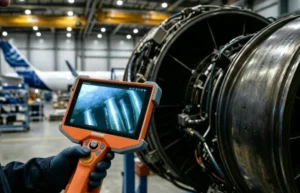

• Aerospace: Quantitative detection of aero-engine turbine blade cracks and coating thickness; accurate measured data avoids unnecessary full-piece replacement and saves massive maintenance costs.
• Energy & Power: Detect steam turbine blade abrasion and boiler pipeline corrosion, promote maintenance mode shifting from breakdown maintenance to predictive maintenance.
• Automotive Manufacturing: Locate subtle defects above 0.3mm inside engine cylinder and gearbox to find hidden problems of production line processing.
• Defense Industry: Inspection of welding dimension of missile shell and internal deformation of ship dedicated pipeline.
• Precision Manufacturing: Dimensional verification of mold inner cavity, circuit board solder joint and medical implant accessories.
• General Industrial Maintenance: Internal hidden condition inspection of large closed equipment such as compressors and heat exchangers.
Core Usage Values
• Simple operation: Joystick electric fine control is easy to learn with low technical threshold and higher positioning precision.
• Accurate data output: Support point-to-point, area, depth measurement and 3D point cloud modeling to get objective defect parameters.
• Standardized document management: One-click generate formal MDI inspection report, support picture annotation and cloud data storage to realize full-process data traceability.
• Cost reduction: Accurate judgment of defect qualification avoids blind replacement of expensive core spare parts and cuts enterprise maintenance expenditure.
Practical Purchase Selection Guide
• Clear imaging performance: Select models with ≥1MP & 1080P resolution and adjustable fill light to guarantee clear shooting at different detection distances.
• Durable probe structure: Prioritize tungsten braided tube and sapphire lens; check joystick smoothness and probe self-locking stability without sagging or shaking after positioning.
• Reliable measuring performance: Standard industrial precision reaches 0.1mm; equipped with smooth-running measurement software supporting area calculation and on-screen real-time 3D modeling.
• Practical auxiliary functions: Prefer hot-swappable batteries, high-temperature early warning and one-click automatic report generation to improve field working efficiency.
Future Industry Development Trends
Probe miniaturization: Develop products with diameter ≤2.0mm to realize inspection of ultra-narrow micro gaps.
Higher measurement precision: Apply liquid lens new technology to upgrade measuring accuracy to 0.01mm ultra-precision level.
AI intelligent iteration: Automatic defect identification + intelligent measurement, reduce dependence on senior inspectors’ working experience.
Lightweight modularization: Quick plug-and-play replacement parts, optimized portable design for high-altitude and complex field operation.
Cloud remote linkage: Real-time synchronous remote expert diagnosis, transform single inspection equipment into industrial digital intelligent inspection terminal.
Summary
Joystick-controlled motorized 3D measurement borescope thoroughly changes traditional inspection mode based on subjective experience, relying on accurate measured data to support industrial safety production and scientific maintenance. It acts as core “industrial electronic eye” for modern manufacturing to control product quality and reduce comprehensive operating costs.
