In industrial inspection fields, motorized 3D measurement borescopes achieve clear viewing, stable detection and precise measurement via core technological upgrades. Here are the key selection points for this high-end non-destructive testing equipment.
Clear Visibility Performance

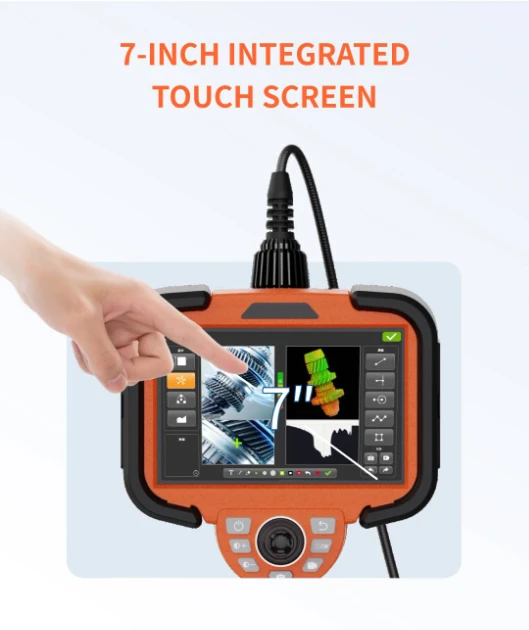

Binocular high-definition lens is the core component of motorized 3D measurement borescope, laying solid foundation for clear imaging and 3D inspection. It is recommended to select models with over 1 million pixels and 1080P high definition resolution to capture delicate and detailed internal conditions. Equipped with dimmable high-brightness LED fill lights, together with wide field of view and great depth of field design, it can present sharp images at different detection distances. Matched with industrial high-definition touch screen, it realizes full-view blind-spot-free observation and real-time image display.
Stable Detection Performance
Adopt industrial durable materials including tungsten wire braided insertion tube, titanium alloy outer shell and wear-resistant sapphire lens head, featuring excellent waterproof, dustproof and anti-abrasion performance for stable operation under various harsh complex working environments. It adopts modular structure design, supporting interchangeable insertion tubes ranging from 1.0mm to 8.0mm in diameter and various customized lengths to fit diverse inspection demands. Built-in full 360° motorized steering system supports fine step adjustment and accurate target positioning, keeping stable running status throughout the whole inspection process.
Precise Measurement Capability
3D measuring function is the most core advantage of this type of endoscope. Buyers need to focus on measuring accuracy, effective measuring range, available measuring modes and 3D modeling effect. Standard industrial grade precision shall reach 0.1mm and higher to satisfy high-precision quantitative detection needs. The effective measuring range is decided by probe size and binocular lens parameters, which must conform to on-site actual inspection conditions. Qualified products shall support point-to-point, point-to-line, area, depth and other multi-dimensional measuring modes, and realize real-time 3D modeling as well as offline secondary measurement analysis to fully restore complete 3D geometric data of detected targets.
High Working Efficiency Configuration
Reasonable practical functions can greatly boost overall inspection efficiency. It shall be fitted with large-capacity removable rechargeable lithium batteries to guarantee long-time continuous working without sudden power failure. Meanwhile, sufficient built-in storage space and multiple external data export interfaces are essential. Additional practical functions such as automatic professional inspection report generation and real-time high temperature overheat warning are also worthy priority choices for on-site industrial inspection work.
