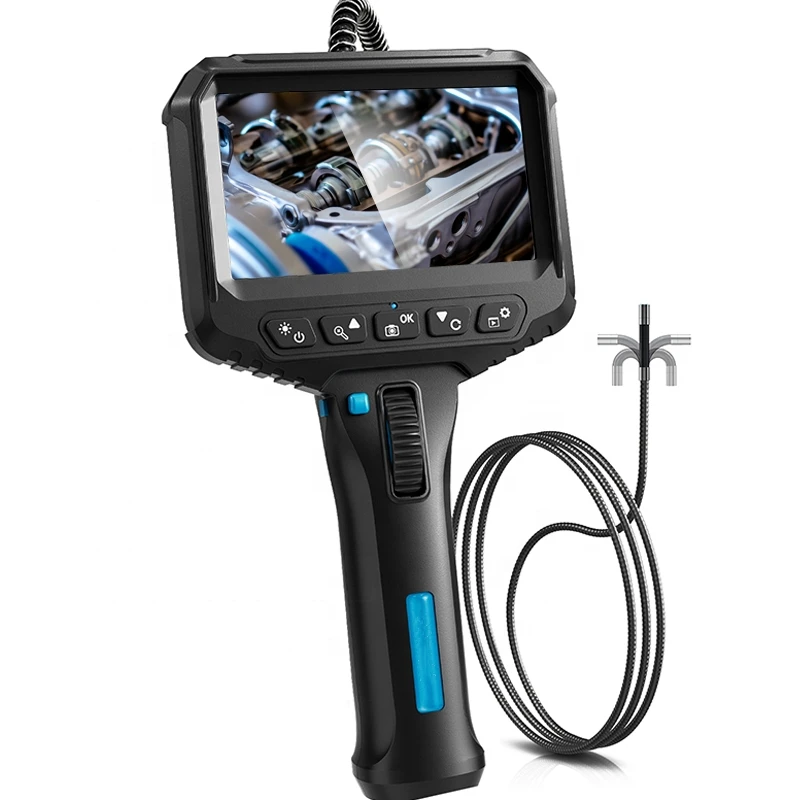

VW Series 4.3” Wheel Control Videoscope
Two-Way Articulating 1080P HD
4.3” Wheel Control Videoscope
- 3inch HD screen
- 1Mega Pixel 1080P HD camera
- Two-way 180°articulating camera
- IP67 Waterproof & Oil-proof
- Wheel control and Probe lock
- One-click photo/Video capture
- High Temperature protection
- 2200mAh Rechargeable Li-battery
The VW Series is a ” 4.3-inch Two-Way Articulating HD Videoscope”. Perfect for automotive maintenance, pipeline and sewer inspection, and appliance repair. It features a two-way 180°articulating (up to 210°single direction) HD camera, inspecting hard-to-reach corners effortless. With 6 adjustable LEDs delivers crystal-clear visuals—even in dim, cramped spaces. Equipped with high-temperature protection (auto-shutdown above 90°C) and IP67 waterproof rating ensures safety use in heated or wet environments. 4.3-inch HD display, silicone wheel control, one-click photo/video capture and a one-button probe lock design to instantly record inspection details and keep the probe steady. And a 2200mAh battery supports up to 3 hours of continuous work—turning narrow, inaccessible spaces into easy-to-inspect areas.
- 3inch HD screen
- Two-way 180°articulating HD camera

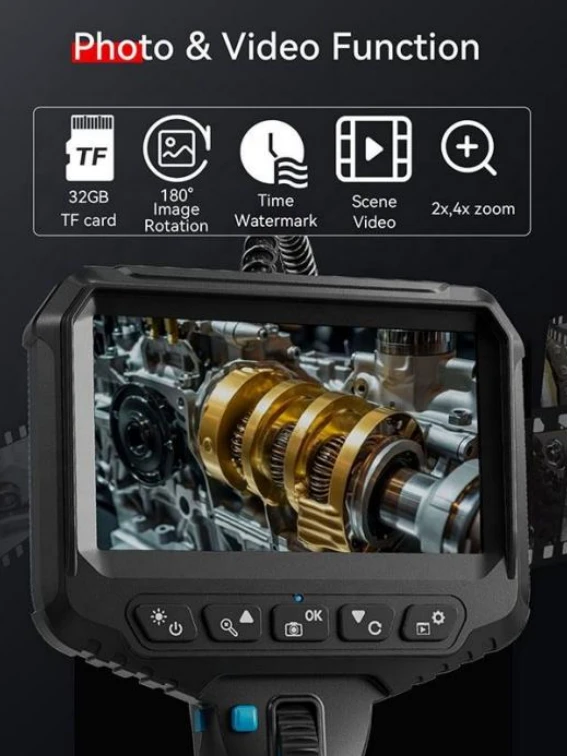

- One-click photo/Video capture

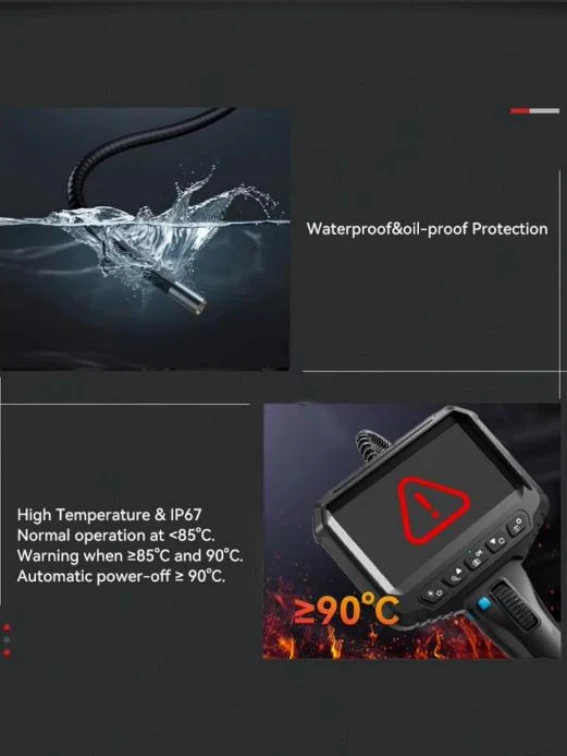

- High Temperature protection, Over 90°C power off
- IP67 Waterproof & Oil-proof with flexible tube

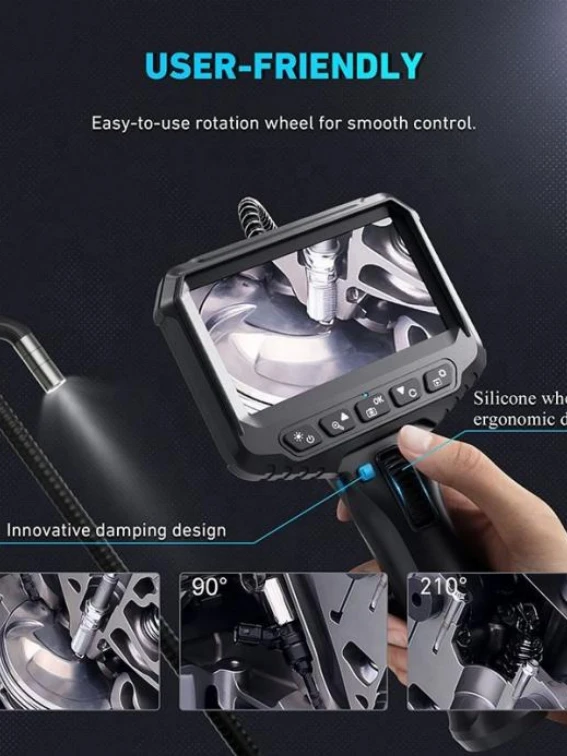

- Silicone wheel design smooth steering control
- One button Probe lock
The VW Series 4.3-inch Two-Way Articulating Wheel Control HD Videoscope can be widely used in automotive maintenance, sewer inspection, pipeline maintenance, HVAC system checks and home DIY. It is ideal for auto mechanics, pipeline maintenance workers, industrial equipment inspectors, municipal sewer operators and DIY enthusiasts. Inspecting internal components (such as engines and pipes) for faults, blockages and wear without disassembly
| Host system | ||
| Screen size | 4.3-inch IPS Display | |
| Display resolution | 480*272 | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| Language | Multiple | |
| Temperature display | Rear-time temperature | |
| Function | Photo/Video/Zoom | |
| Camera System | ||
| Diameter | 6.2mm | 8.5mm |
| Optical Total Pixels | 1.0 Mega:1280*720 | 2.0 Mega:1600*1200 |
| Light | 6 LEDs high light | |
| FOV | 90° | |
| DOF | 15-100mm | 30-70mm |
| Steering Radius | 30mm | |
| Steering Angle | Two-way 180° | |
| Steering Life | ≥20000 times | |
| Waterproof rating | IP67 | |
| Tube Material | Flexible Metal Tube | |
| Tube Length | 1m | |
| High Temperature protection | Over 90°C power off | |
| Power Supply | ||
| Battery Charging | DC5V 2A, 3.7V | |
| Battery | Built-in 2200mAh Li-battery | |
| Working time | 3 hours | |
| Operating Environment | ||
| Working temperature | -10~50（℃） | |
| Relative humidity | Less than 90% | |
| Configuration | ||
| Standard configuration | 4.3-inch display articulating endoscope*1 | |
| USB cable*1, Li-battery *1, Toolbox*1 | ||
