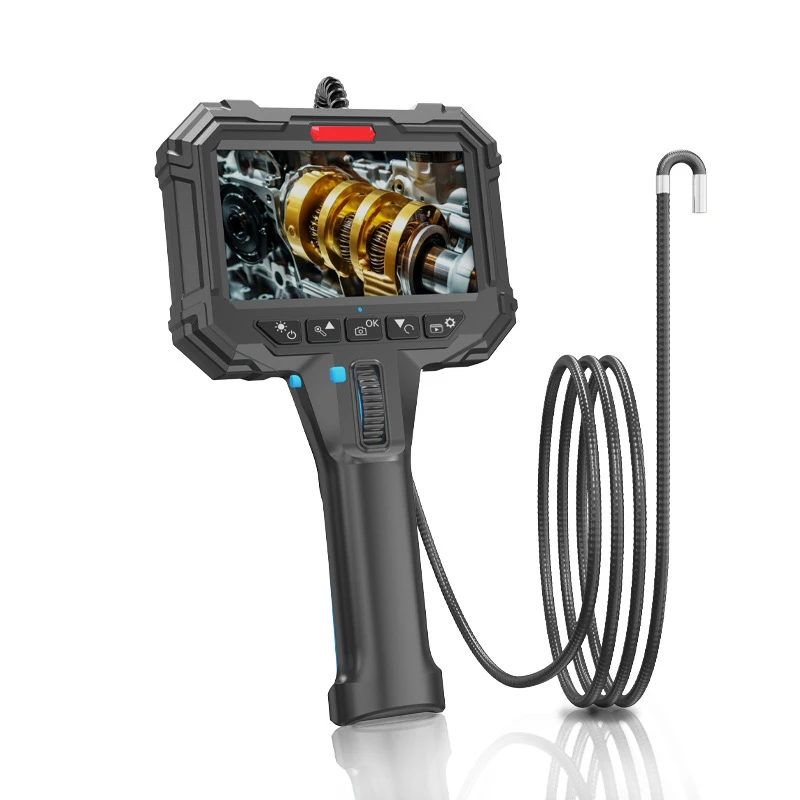

VL Series 5” Wheel Control Videoscope
Two-Way Articulating 1080P HD
5” Wheel Control Videoscope
- 5inch HD large screen
- 1Mega Pixel 1080P HD camera
- Two-way 180°articulating camera
- IP67 Waterproof & Oil-proof
- Wheel control and Probe lock
- One-click photo/Video capture
- High Temperature protection
- 4400mAh Rechargeable Li-battery
The VL Series is a ” 5-inch Two-Way Articulating HD Videoscope”. Designed for automotive maintenance, pipeline and sewer inspection, and appliance repair. It features a two-way 180°articulating (up to 210°single direction) HD camera with 8 adjustable LEDs, it captures clear photo/video from different angles even in dim, cramped spaces. Equipped with high-temperature protection (auto-shutdown above 90°C) and IP67 waterproof rating ensures safety use in heated or wet environments. 5-inch HD display, silicone wheel control, one-click photo/video capture and a one-button probe lock design to instantly record inspection details and keep the probe steady. And a 4400mAh battery supports up to 5 hours of continuous work.
- 5 inch HD screen
- Two-way 180°articulating HD camera
- One-click photo/Video capture
- High Temperature protection, Over 90°C power off
- IP67 Waterproof & Oil-proof
- 4400mAh Li-battery
- Silicone wheel design smooth steering control

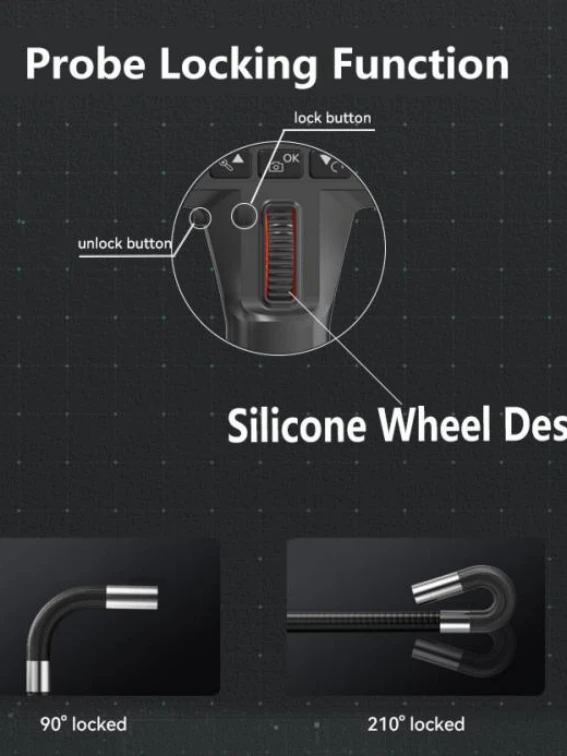

- One button Probe lock

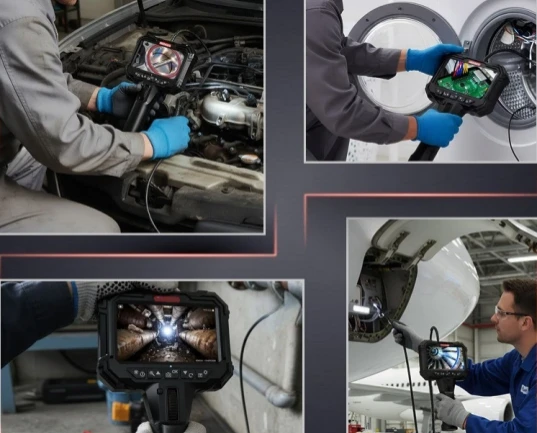

The VL Series 5-inch Two-Way Articulating Wheel Control HD Videoscope can be widely used in automotive maintenance, sewer inspection, pipeline maintenance, Home Appliance repair etc. It designed for mechanics, plumbers, technicians, and DIY users, it helps easily access confined spaces, identify hidden faults, and complete inspections faster with less effort and higher accuracy
| Host system | ||
| Screen size | 5-inch IPS Display | |
| Display resolution | 854*480 | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| Language | Multiple | |
| Temperature display | Rear-time temperature | |
| Function | Photo/Video/Zoom | |
| Camera System | ||
| Diameter | 3.9mm | 5.5mm |
| Optical Total Pixels | 1.0 Mega:1280*720 | |
| Light | 6 LEDs | 8 LEDs |
| FOV | 90° | |
| DOF | 20-60mm | 15mm-∞ |
| Steering Radius | 25mm | 30mm |
| Steering Angle | Two-way 180° | |
| Steering Life | ≥20000 times | |
| Waterproof rating | IP67 | |
| Tube Material | Flexible Metal Tube | |
| Tube Length | 1m | 1.5m |
| High Temperature protection | Over 90°C power off | |
| Power Supply | ||
| Battery Charging | DC5V 2A, 3.7V | |
| Battery | Built-in 4400mAh Li-battery | |
| Working time | 5 hours | |
| Operating Environment | ||
| Working temperature | -10~50（℃） | |
| Relative humidity | Less than 90% | |
| Configuration | ||
| Standard configuration | 5-inch display articulating endoscope*1 | |
| USB cable*1, Li-battery *1, Toolbox*1 | ||
