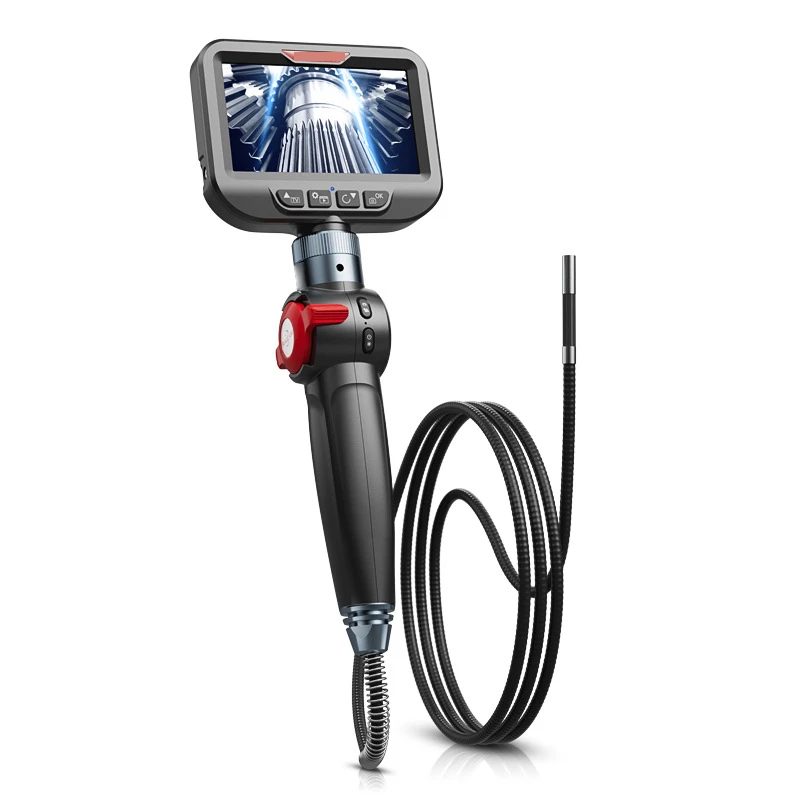

VK Series 4.3” Knob Control Videoscope
Two-Way Articulating 1080P HD
4.3” Knob Control Videoscope
- 3inch screen
- 1Mega Pixel 1080P HD camera
- Two-way 180°articulating camera
- IP67 Waterproof & Oil-proof
- One-click photo/Video capture
- High Temperature protection
- 2200mAh Rechargeable Li-battery

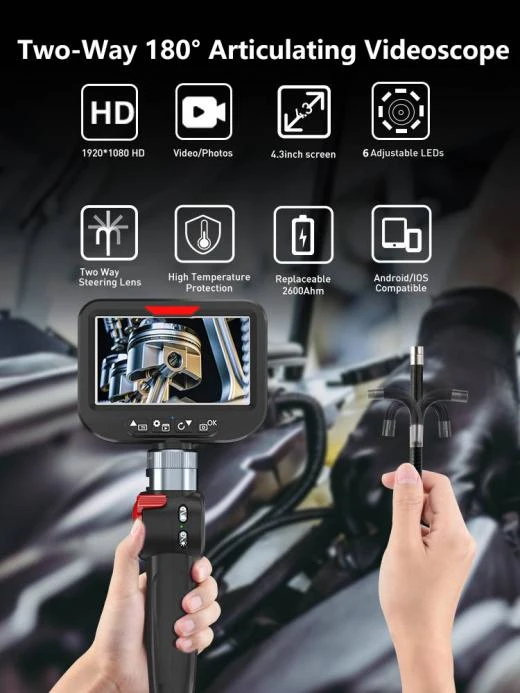

The VK Series is a ” 4.3-inch Two-Way Articulating HD Videoscope”. Ideal for automotive maintenance, pipeline, appliance, sewer testing. It features a 4.3-inch screen and two-way 180°articulating HD camera (with 6 adjustable LEDs) that delivers clear visuals even in dim, cramped spaces and inspecting to hard-to-reach corners effortlessly. Built-in high-temperature protection (auto-shutdown above 90°C) ensures safe use in heated environments. With one-click photo and video capture, you can record inspection details instantly. It also boasts IP67 waterproof for wet-area checks, and a 2200mAh battery supports up to 3 hours of continuous work—turning narrow, inaccessible spaces into easy-to-inspect areas.
- 3inch IPS screen
- Two-way 180°articulating HD camera

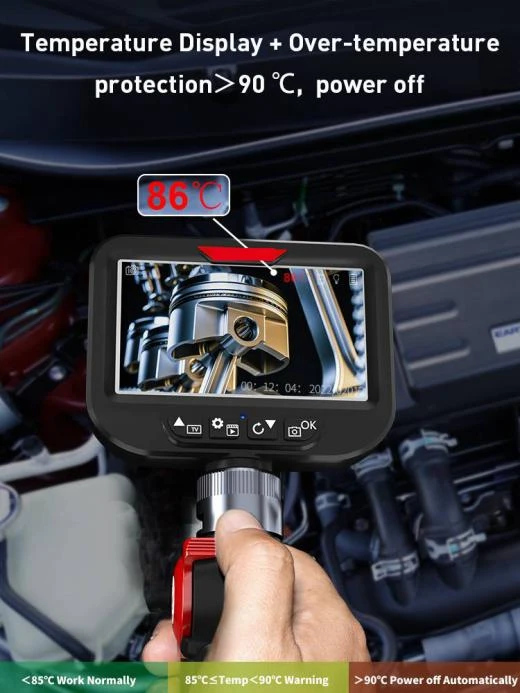

- High Temperature protection, Over 90°C power off

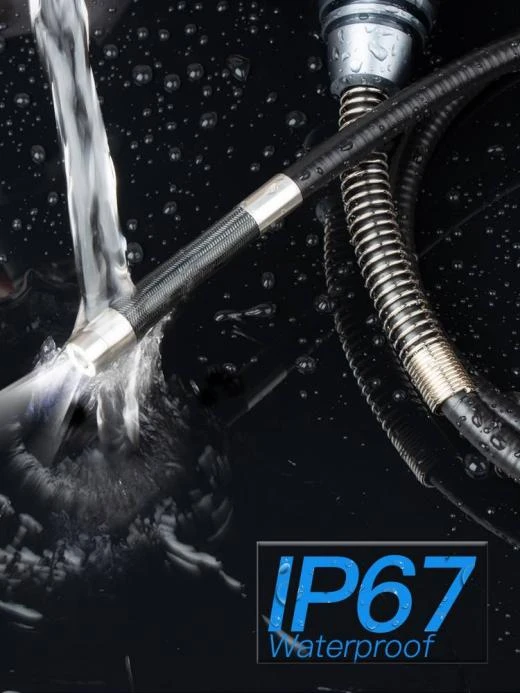

- IP67 Waterproof & Oil-proof
- Flexible Cable

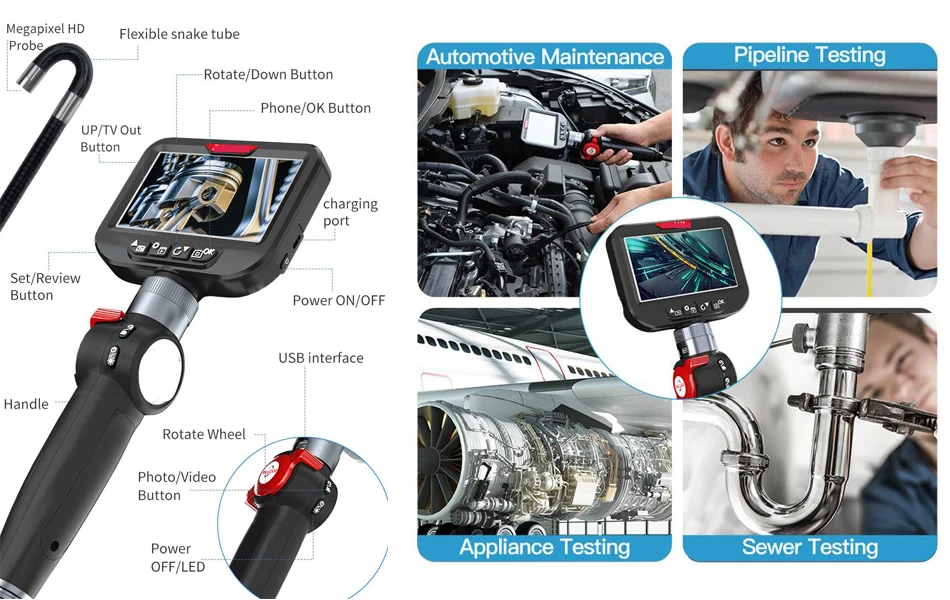

The VK Series 4.3-inch Two-Way Articulating HD Videoscope can be widely used in automotive maintenance, pipeline testing, industrial appliance (including aircraft component) inspection, and sewer troubleshooting. It is ideal for automotive technicians, pipeline maintenance workers, industrial equipment inspectors, and municipal sewer operators. Without disassembling complex parts or entering confined, dangerous spaces—boosting maintenance efficiency while reducing operational risks.
| Host system | ||
| Screen size | 4.3-inch IPS Display | |
| Display resolution | 480*272 | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| Language | Multiple | |
| Temperature display | Rear-time temperature | |
| Function | Photo/Video/Zoom | |
| Camera System | ||
| Diameter | 6.2mm | 8.5mm |
| Optical Total Pixels | 1.0 Mega:1280*720 | 1.0 Mega:1600*1200 |
| Light | 6 LEDs high light | |
| FOV | 90° | |
| DOF | 15-100mm | 30-70mm |
| Steering Radius | 30mm | |
| Steering Angle | Two-way 180° | |
| Steering Life | ≥20000 times | |
| Waterproof rating | IP67 | |
| Tube Material | Flexible Metal Tube | |
| Tube Length | 1m | |
| High Temperature protection | Over 90°C power off | |
| Power Supply | ||
| Battery Charging | DC5V 2A, 3.7V | |
| Battery | Built-in 2200mAh Li-battery | |
| Working time | 3 hours | |
| Operating Environment | ||
| Working temperature | -10~50（℃） | |
| Relative humidity | Less than 90% | |
| Configuration | ||
| Standard configuration | 4.3-inch display articulating endoscope*1 | |
| USB cable*1, Li-battery *1, Toolbox*1 | ||
