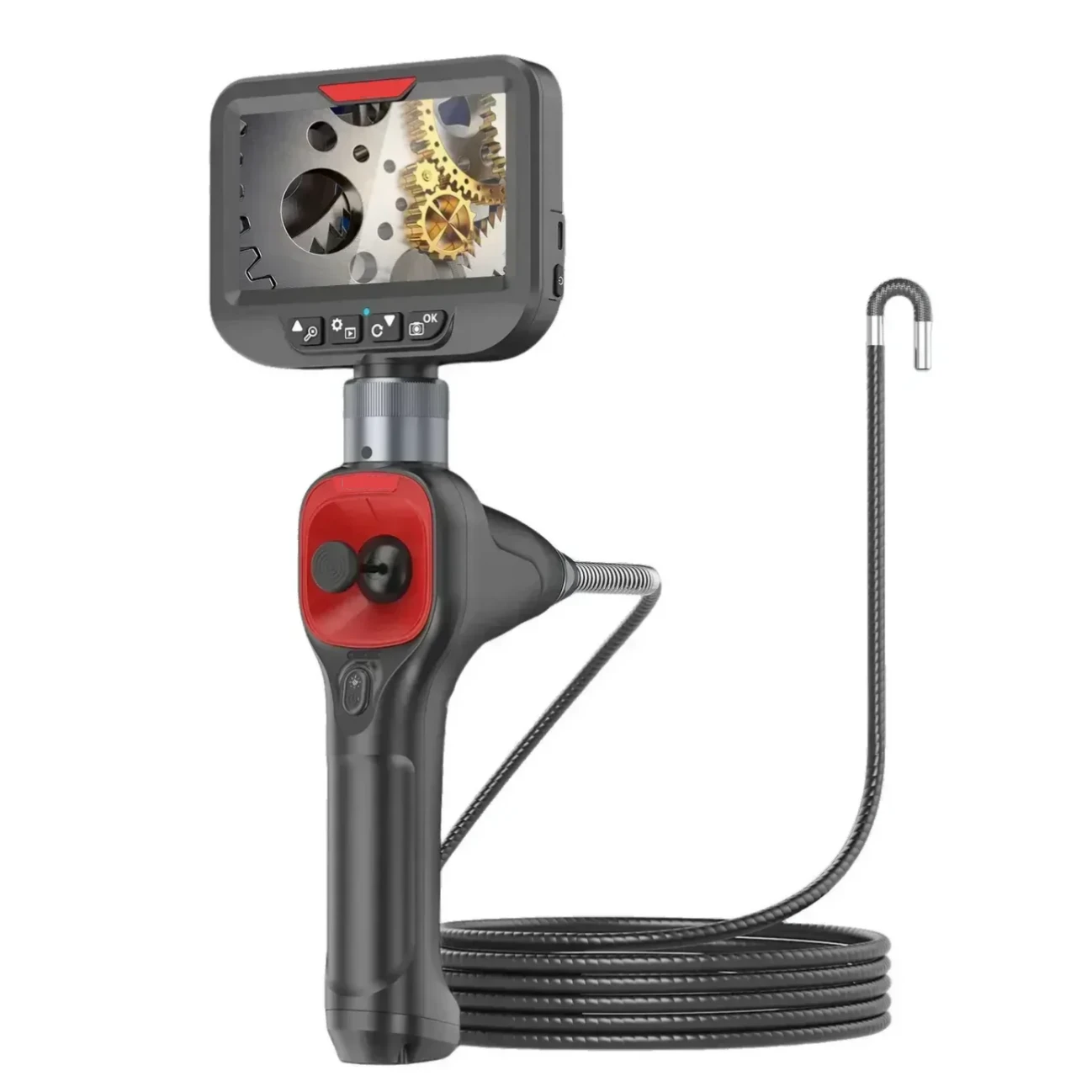

VA Series 4.3” All-Way Articulation Videoscope
360° Rotation 1080P HD Modular Design
4.3” All-Way Articulation Videoscope
- Detachable 4.3inch HD screen
- 1Mega Pixel 1080P HD camera
- All-way 360°articulating camera
- IP67 Waterproof & Oil-proof

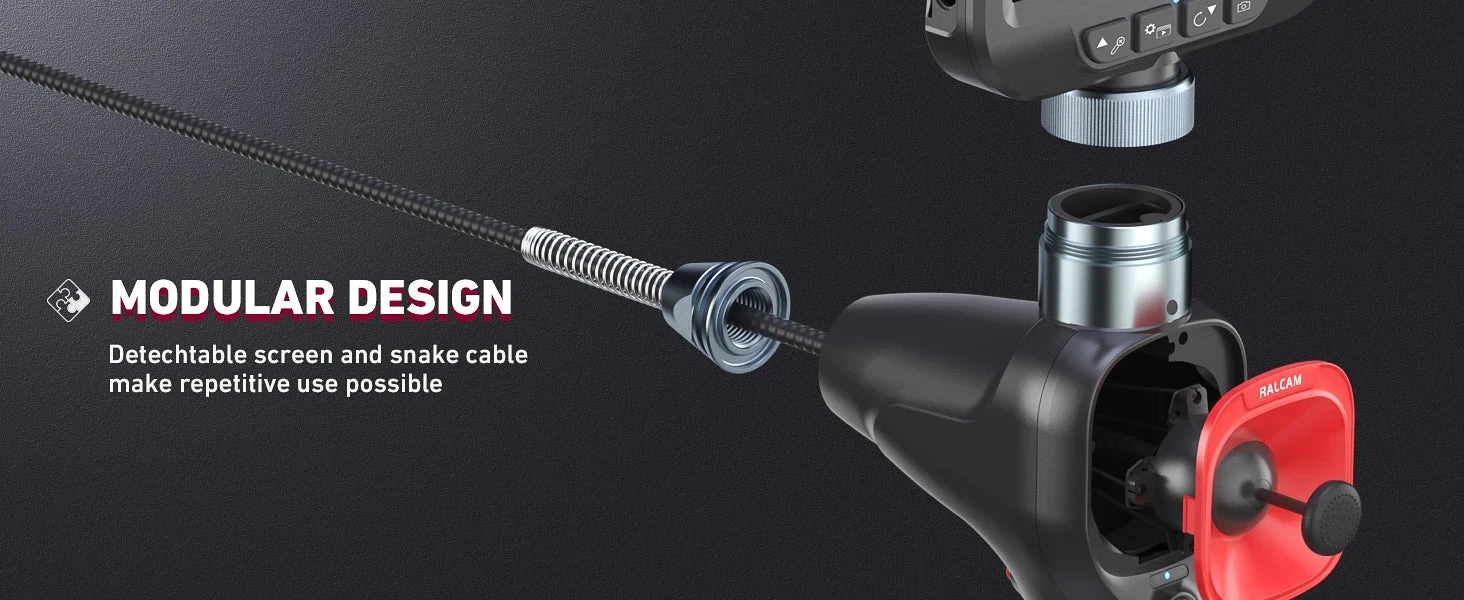

- Joystick control and Modular design
- One-click photo/Video capture
- High Temperature protection
- 4400mAh Rechargeable Li-battery
The VA Series is a ” 4.3-inch All-Way Articulation HD Videoscope”. Perfect for sewer drain pipe inspection, car maintenance, air-conditioning repair, wall inspection, chimney cleaning, air-conditioning maintenance and other fields. It features a four-way 360°Steering HD camera, inspecting hard-to-reach corners effortless. With 6 adjustable LEDs delivers crystal-clear visuals—even in dim, cramped spaces. Equipped with high-temperature protection (auto-shutdown above 90°C) and IP67 waterproof rating ensures safety use in heated or wet environments. Detachable 4.3-inch HD display, Joystick control, one-click photo/video capture and tube system modular design. And a 4400mAh battery supports up to 5 hours of continuous work
The VW Series 4.3-inch All-Way Articulation HD Videoscope can be widely used in sewer drain pipe inspection, car maintenance, air-conditioning repair, wall inspection, chimney cleaning, appliance maintenance and other fields. It can help you quickly find the problem, and make the right judgment.
| Host system | ||
| Screen size | 4.3-inch IPS Display | |
| Display resolution | 480*272 | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| Language | Multiple | |
| Temperature display | Rear-time temperature | |
| Function | Photo/Video/Playback/Image rotation/Zoom | |
| Camera System | ||
| Diameter | 3.9mm | 6.2mm |
| Optical Total Pixels | 1.0 Mega:1280*720 | 1.0 Mega:1280*720 |
| Light | 6 LEDs high light | |
| FOV | 90° | |
| DOF | 8-100mm | 15-100mm |
| Steering Radius | 30mm | |
| Steering Angle | Four-way 360° | |
| Steering Life | ≥20000 times | |
| Waterproof rating | IP67 | |
| Tube Material | Flexible Metal Tube | |
| Tube Length | 1m | |
| High Temperature protection | Over 90°C power off | |
| Power Supply | ||
| Battery Charging | DC5V 2A, 3.7V | |
| Battery | Built-in 4400mAh Li-battery | |
| Working time | 5 hours | |
| Operating Environment | ||
| Working temperature | -10~50（℃） | |
| Relative humidity | Less than 90% | |
| Configuration | ||
| Standard configuration | 4.3-inch display articulating endoscope*1 | |
| USB cable*1, Li-battery *1, Toolbox*1 | ||
