UC Series Ultra-thin Classic Borescope
5” Ultra-thin Classic Borescope

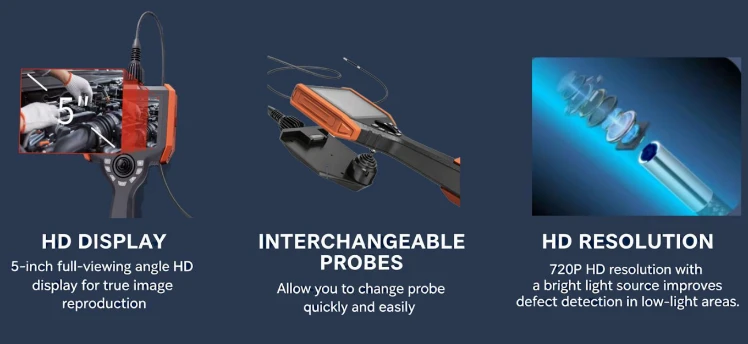

Modular Design HD Display Joystick Control
- 5 inch HD LCD screen
- 720P HD Mega Pixel camera
- 0.75mm-2.8mm probes for optional
- Support WiFi Transmission

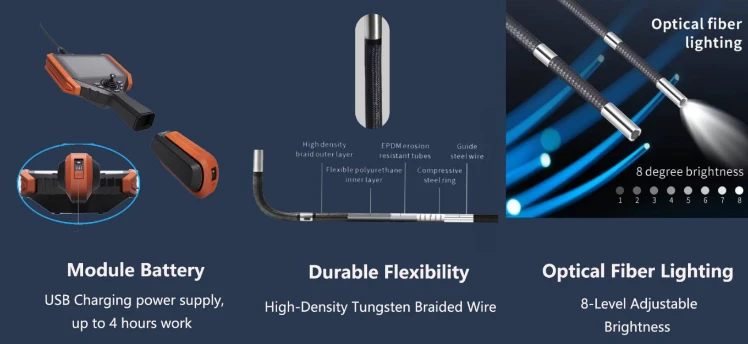

- Rear High Power LED Optic Fiber Illumination
- Modular Design Detachable Probe & Display
- Modular Battery
The UC Series is a ” 5-inch HD Display Ultra-thin Borescope”. It features an ultra-thin probe lineup ranging from 0.75mm to 2.8mm, capable of accessing narrow, enclosed cavities to eliminate hidden blind spots. It adopts high-definition imaging to identify micro defects and subtle abnormalities for accurate visual assessment. Fitted with a high-density tungsten braided insertion tube, it maintains consistent reliable performance in harsh industrial environments. Equipped with adjustable high-power fiber-optic LED lighting and a user-friendly intuitive control panel, it supports flexible real-time image optimization for simple, efficient operation. Widely applicable to aerospace, automotive, precision manufacturing and other industrial sectors.
The UC Series 5-inch HD Display Ultra-thin Borescope can be widely used in precision manufacturing, automotive maintenance, aerospace inspection, pipeline detection and electronic quality control. Thanks to its ultra-slim flexible probe, it easily accesses tiny, narrow cavities that conventional inspection tools cannot reach, such as engine fuel injectors, micro cooling channels of molds, aircraft turbine cooling holes and miniature circuit board gaps. Equipped with a 5-inch high-definition screen, it delivers sharp real-time imaging to spot tiny cracks, blockages, rust and assembly defects without disassembling equipment, greatly boosting inspection efficiency and lowering maintenance costs across industrial non-destructive testing scenarios.
| Host system | |||||
| Screen size | 5-inch HD LCD display | ||||
| Display Resolution | 1280*720 | ||||
| Zoom In/Out | 5X | ||||
| White Balance | Auto white balance/manual | ||||
| Photo/Video Format | JPEG/MP4 | ||||
| File Storage | Standard TF card: 32G | ||||
| Output Port | HDMI video output, Micro USB port | ||||
| Language | Multiple | ||||
| Host size | 350*155*59mm | ||||
| Compatibility | Interchangeable monitor and tube with different diameters | ||||
| Software Function | Freeze, photograph, zoom, flip, video playback, analog ruler function | ||||
| Camera System | |||||
| Diameter | 2.8mm | 1.8mm | 1.2mm | 0.95mm | 0.75mm |
| Viewing Direction | Front View | ||||
| Camera pixel | 0.16 Mega | ||||
| Image Resolution | 640*480 / 960*720 / 1280*720 | ||||
| Video Resolution | 640*480 / 960*720 / 1280*720 | ||||
| Light | Rear-mounted LED +Optic fiber | ||||
| Brightness Levels | 0-8 level adjustment | ||||
| FOV | 120° | ||||
| DOF | 3-70mm | ||||
| Steering Angle | Four-way 360° | Two-way180° | No | No | No |
| Bending Angle | 180° | 160° | No | No | No |
| Tube Material | wear-resistant tungsten braided wire | ||||
| Tube Length | 1m (Customization) | ||||
| Power Supply | |||||
| Battery | Li-on Battery Module | ||||
| Working time | 4 hours | ||||
| Operating environment | |||||
| Host operating temperature | -20℃-50℃ | ||||
| Probe operating temperature | -20-70℃ | ||||
| Storage temperature | -20-60 ℃ | ||||
| Relative humidity | Max 90%，No condensation | ||||
| Water/Dust Proof | Probe/tube: IP67; Host: IP54 | ||||
| Configuration | |||||
| Standard configuration | 5-inch ultra-thin videoscope*1, Card reader*1 | ||||
| Data cable*1, Charger*1, Toolbox*1 | |||||
