TV Series Handheld Telescopic Pole 1080P HD Under Vehicle Inspection Camera
Handheld Telescopic Pole 1080P HD
Under Vehicle Inspection Camera
- 7 inch monitor with sunshade
- 1080P 5 Mega Pixel HD camera DVR system
- Double HD digital Camera Head
- Durable Omnidirectionalwheels suit for all kinds roads
- With 2m Telescopic Pole for all-purpose usage
- 5000mAh Li-battery, 8 hours working time

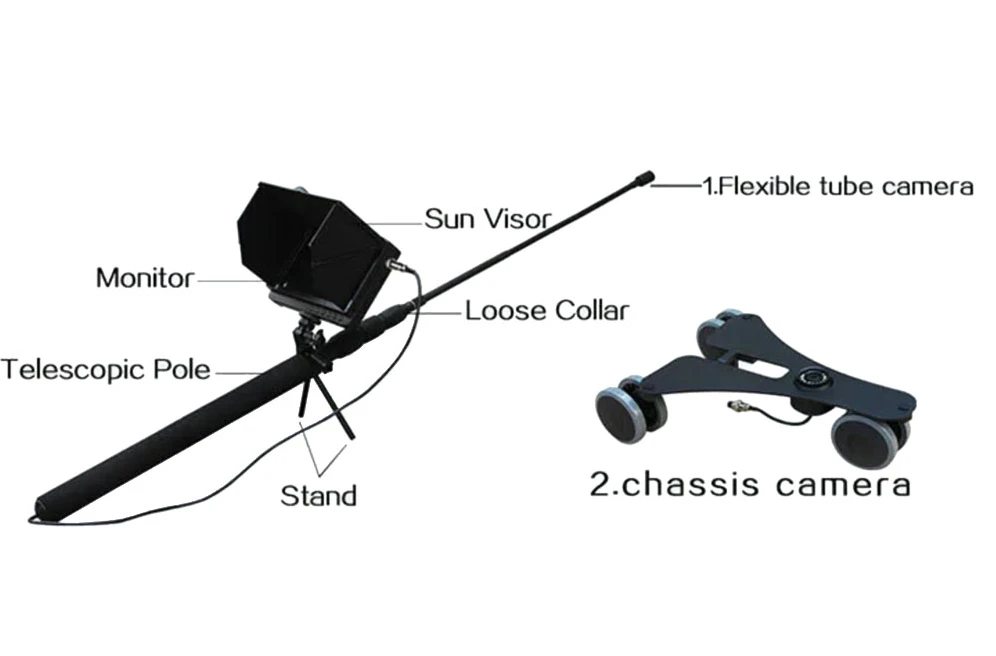

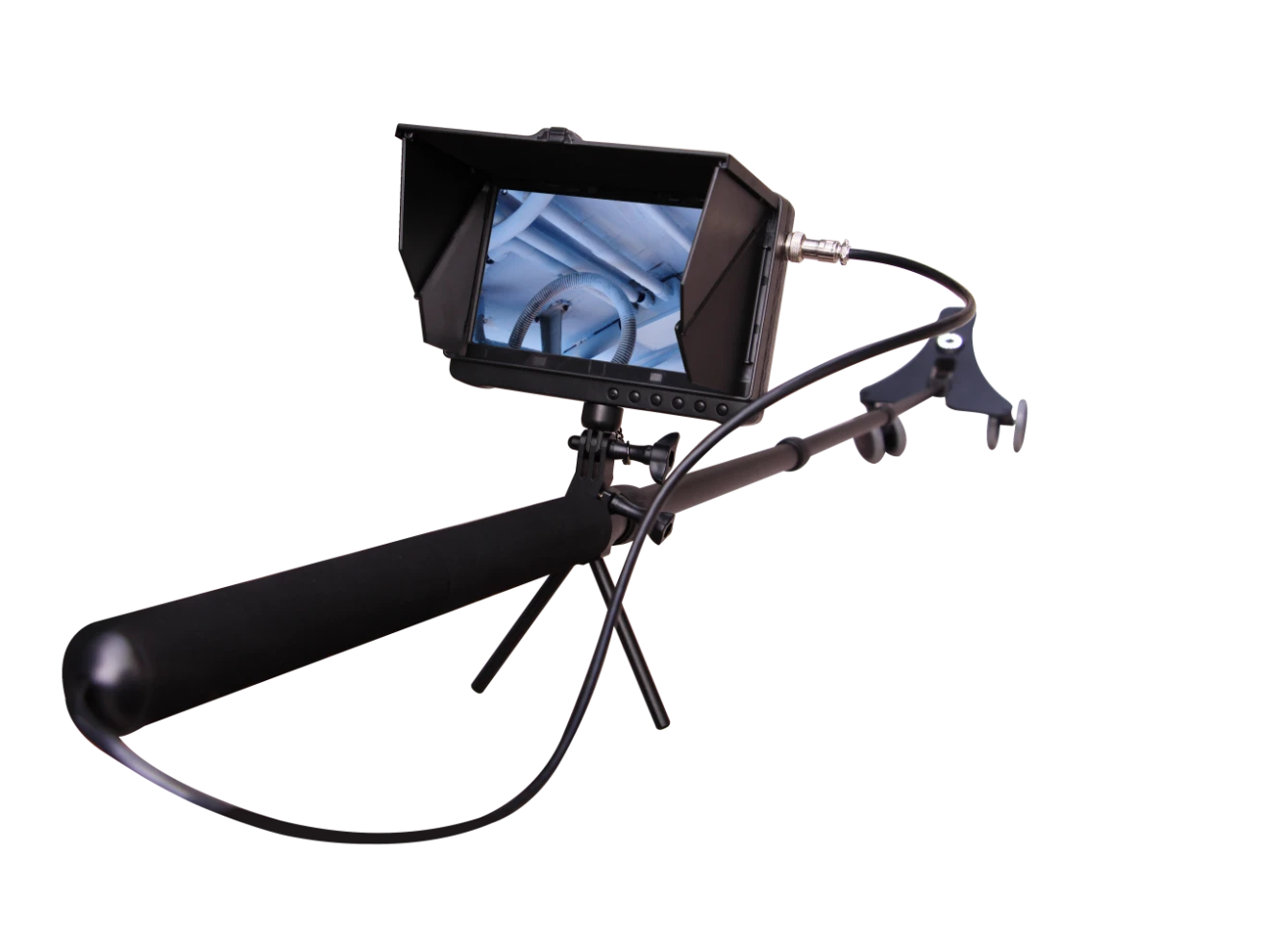

The TV Series is a multifunctional ” Telescopic Pole Super HD Under Vehicle Inspection Camera System”. It is a real 1080P Full HD vehicle checking camera blends top-tier clarity, durability, and versatility—perfect for mechanics, vehicle enthusiasts, or on-site checks. It features dual high-quality cameras to cover all inspection needs: the first (fitted with 16 bright LEDs) with universal wheel, the second is 19.5mm camera (with 6 bright LEDs) paired with a 0.25m flexible tube. With full HD 1080P resolution and 5MP sensor, it delivers crystal-clear visuals for precise problem identification. The 7-inch HD monitor (equipped with a sunshade) ensures easy viewing even in bright outdoor environments,2 meters telescopic pole camera, extend your hands and eyes to every narrow corner to help to take photo or make video easily. 5000mAh battery make your outdoor working more easy.
7-inch HD monitor with sunshade
Double 5MP HD Camera
Telescopic Pole with stand
1080P HD Photo and Video
64GB Storage and HDMI output
5000mAh Battery with AL case

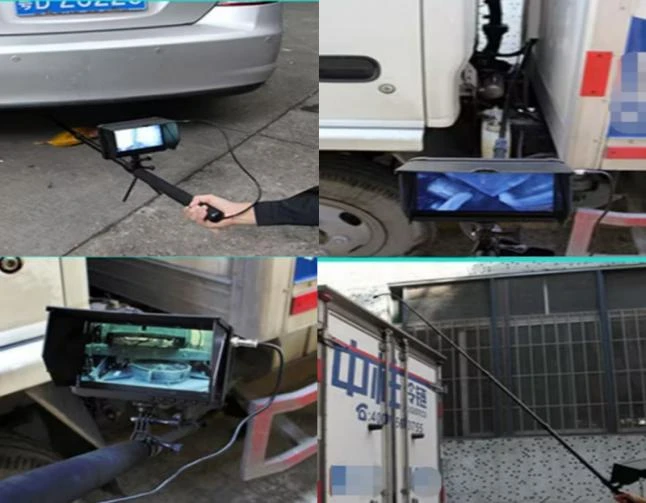

The TV Series Telescopic Pole HD Under Vehicle Inspection Camera can be widely used for inspecting passenger cars, trucks, buses, semi-trailers, and trailers. It is ideal for security personnel at large events and key facilities, logistics staff and drivers performing routine checks, as well as law enforcement and port inspectors. By delivering a clear, real-time view of the vehicle undercarriage, it eliminates blind spots, reduces the need to crawl under vehicles, and makes inspections faster, safer, and more efficient.
| Host system | ||
| Screen size | 7-inch HD DVR Display | |
| HD Video Output | HDMI:1920* 1080;1280*720 | |
| Video Storage Pixels (16:9) | HDMI:1920* 1080;1280*720 | |
| Video Compression Format | H.264 | |
| Video Storage Format | AVI | |
| HD Digital Video Input Interface | FPD-LinkIII | |
| Audio Frequency Range | 20HZ-20KHz AAC | |
| Audio Compression Format | AAC | |
| Photo Format | JPG 3.15 Mega :3200(H)×1800(V) | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| Operating System | Windows & Mac OS | |
| Port | USB 2.0 | |
| Language | Multiple | |
| Voltage | DC :7-24V USB DC:5V | |
| Current(Monitor mode) | 600 mA | |
| Current(Video mode) | 700 mA | |
| Dimension | 177mm x120mm x 20mm | |
| Sunshade | One-press open sunshade | |
| Weight | 350 g | |
| Camera System | ||
| Camera | Camera For Wheel | Camera For Soft metal tube |
| Diameter | 37mm | 19.5mm |
| Optical Element | 1/2.5 CMOS Sensor SONY | 1/3 CMOS Sensor |
| Optical Total Pixels | 2.5 Mega :2000(H)×1121(V) | 5.0 Mega:3200(H)×1800(V) |
| CMOS Sensor Size | 5.6mm(H)×3.14mm(V) | 5.07mm(H)×3.38mm(V) |
| Light | 16 LEDs high light | 6 LEDs high light |
| Sensitivity | 0.08Lux/F1.2 | 0.2Lux/F1.2 |
| Lens & View angle | 3.6mm F1.2 (H )120 ° | 0.5mm F1.2 120 ° |
| Dimension & Weight | 37 x 46mm, 35g (only camera) | 18 x 28mm, 10g (only camera) |
| Waterproof rating | IP68 | IP68 |
| Cable Material | 5 Cores High-Speed Line | 5 Cores High-Speed Line |
| Cable Diameter | 3.5mm | 3.5mm |
| Cable Length | 2.7m | 3m |
| With | Omni-directional wheel | 25cm soft tube length |
| Telescopic Pole | ||
| Material | Al alloy pole | |
| Constriction Length | 58cm | |
| Unfolded Length | 188cm | |
| Power Supply | ||
| AC Adapter | DC 12V 1A | |
| Battery | Built-in 5000mAh Li-battery | |
| Working time | 8 hours | |
| Operating Environment | ||
| Working temperature | -20~40（℃） | |
| Configuration | ||
| Standard configuration | 7-inch display*1, Sunshade*1, Camera with wheel*1 | |
| Flexible Pole Camera*1, 2m Telescopic Pole*1, Li-battery *1, | ||
| AC adapter*1, Micro-HDMI cable*1, USB cable*1, AL Case*1 | ||
