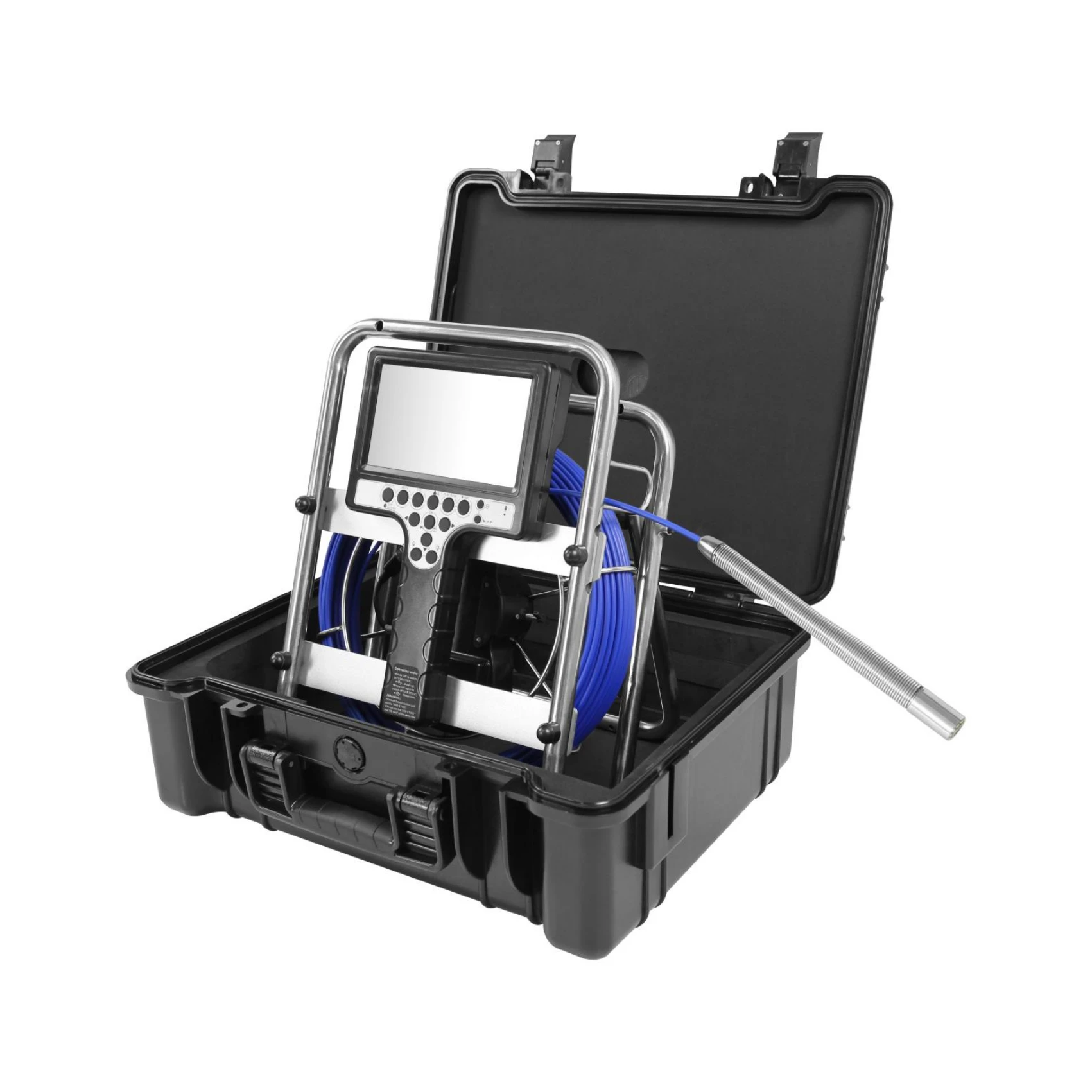

PT Series Handheld Pipeline Endoscope
7” HD 23mm Sewer Inspection Camera
Trace-view Handheld Pipeline Endoscope

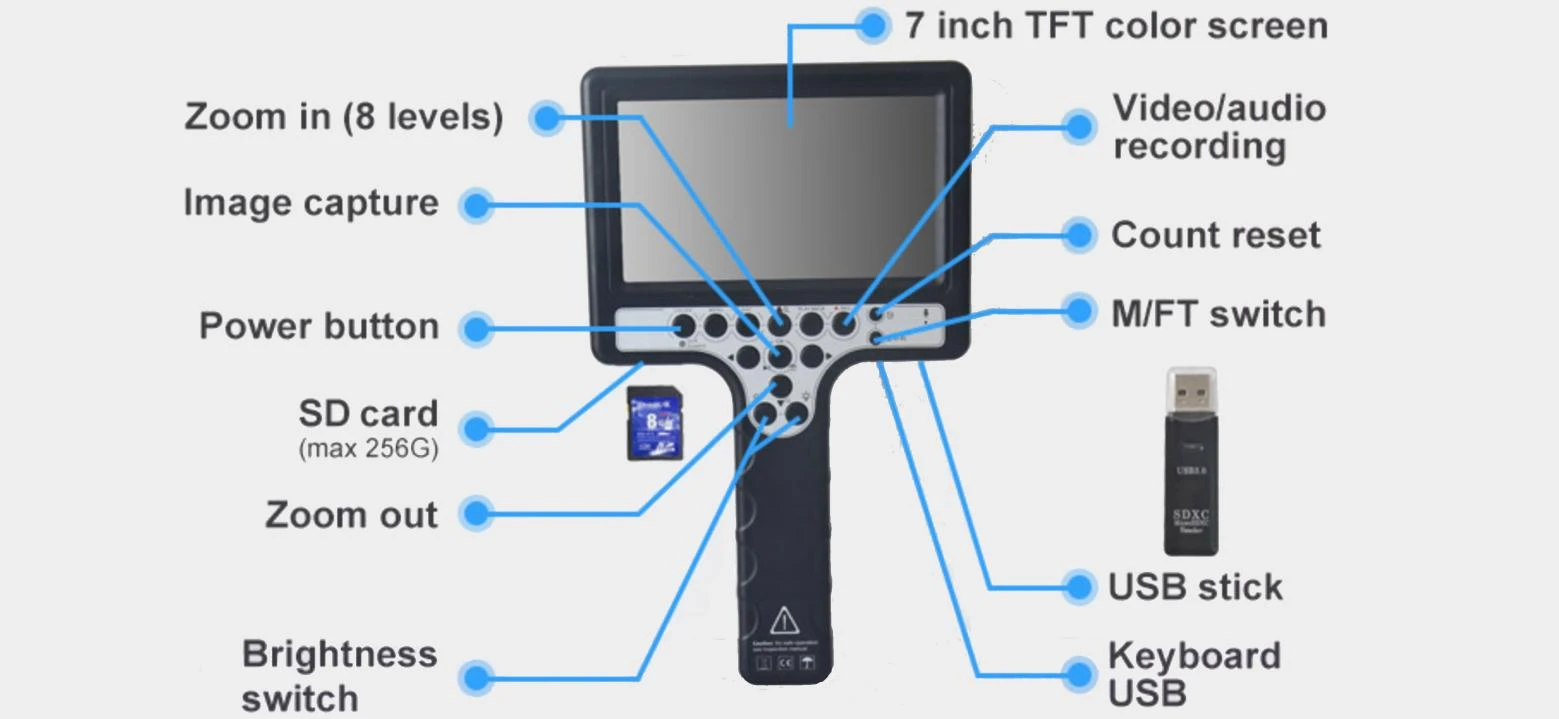

- 7inch TFT color screen with sunshade
- 23mm HD camera, suitable pipe diameter 30-200mm

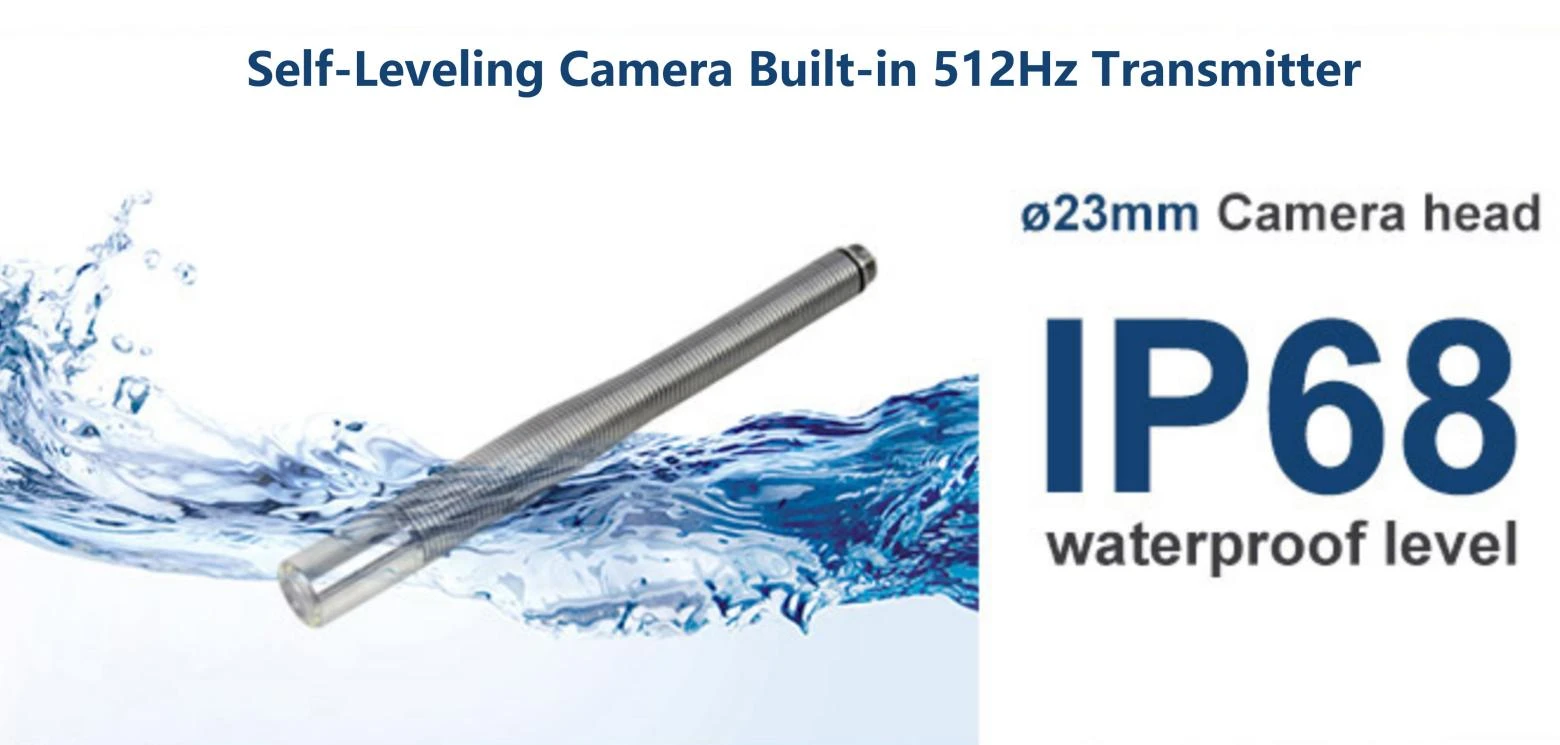

- Build-in 512Hz transmitter & Self leveling
- IP68 Waterproof Probe
- One-click photo and video/audio recording
- Zoom function 8X
- Cable M/FT counter

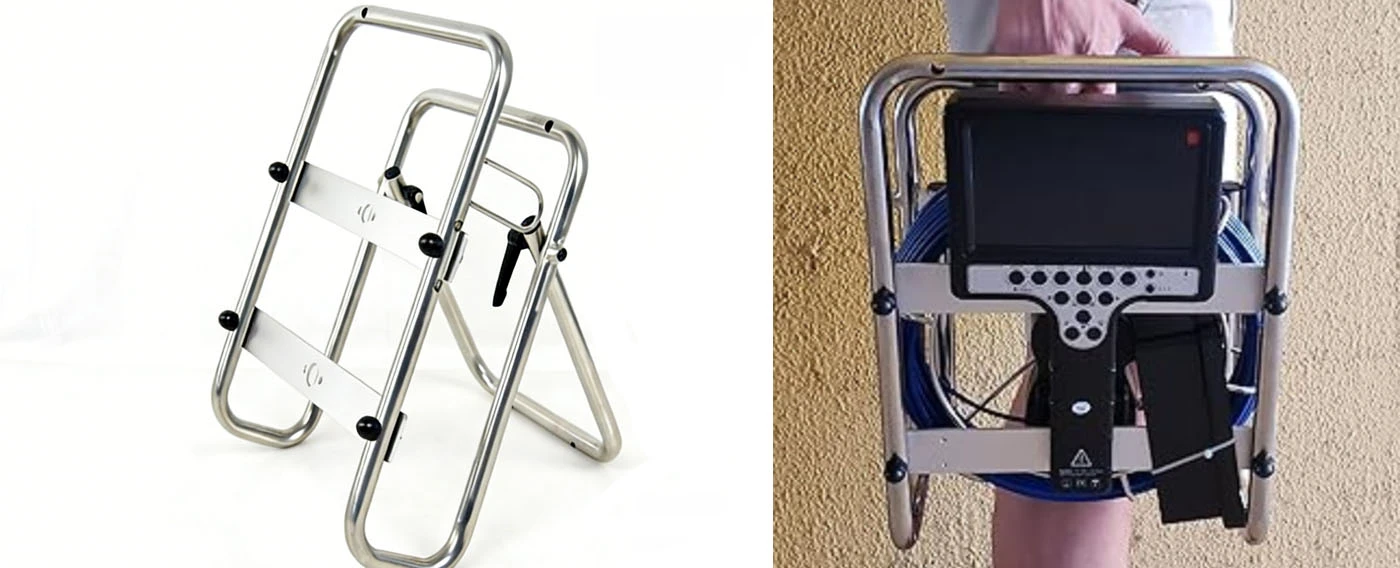

- With stand rail

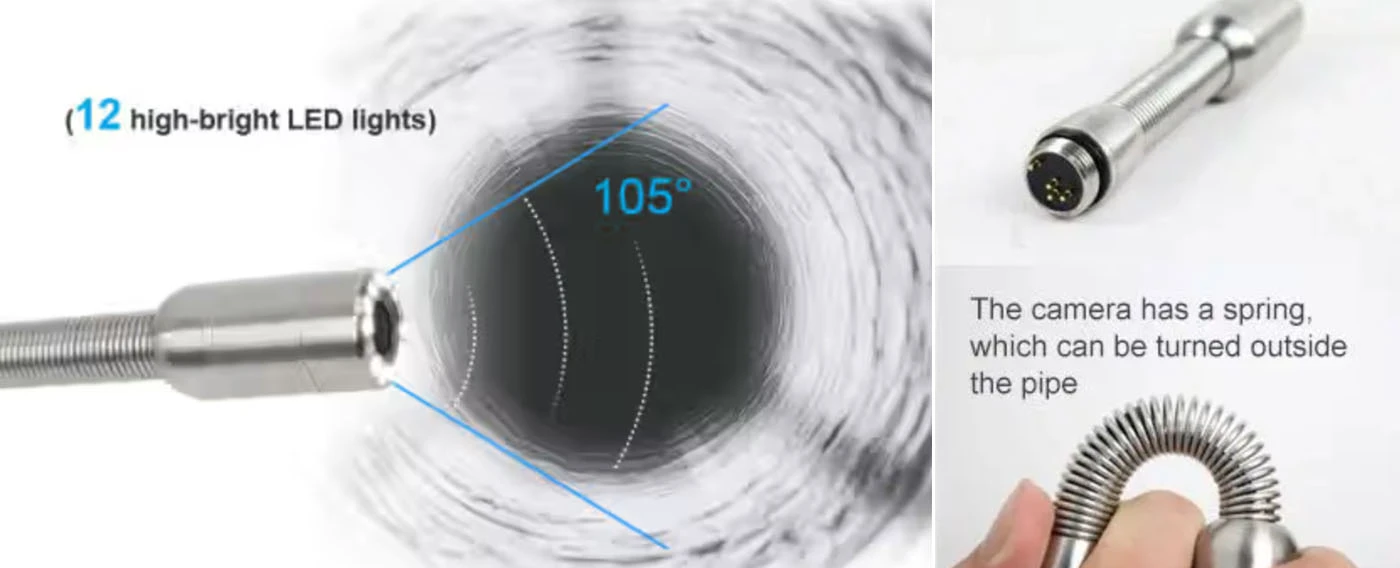

The PT Series is a ” 7-inch HD Trace-view Handheld Pipeline Endoscope “. It features a 23mm HD self-leveling camera head keeps images horizontally oriented, integrated with a 512Hz transmitter, enables accurate probe positioning in complex pipelines. 12pcs high bright LEDs and a 7-inch TFT color screen for clear visual inspection. With stand rail and handheld design, easy to carry and operate. It supports one-touch video/audio recording and image capture, 8-level zoom, a cable M/FT counter for precise distance tracking, and 7-hour battery life, with an IP68 waterproof rating for wet environments, suitable for inspecting pipes range from 30 to 200mm.
The PT Series 7-inch HD Trace-view Handheld Pipeline Endoscope is widely used for endoscopic inspection, dredging guidance, defect diagnosis of pipelines in municipal engineering, industrial factories, petrochemical facilities and air ducts, underground cable pipes, etc.. It’s a ideal tool for pipeline operation and maintenance teams and engineering inspectors, home inspectors, construction workers, plumbers, boat builders and other professionals, it helps quickly pinpoint blockages, cracks, corrosion and other hidden troubles, significantly improving the efficiency and accuracy of pipeline inspection work.
| Host system | |
| Screen size | 7-inch TFT Color Display |
| Display Resolution | 800*480 px |
| DVR Resolution | 720*576 px |
| Video Storage Format | AVI |
| Photo Format | JPEG |
| Storage medium | SD card 8GB, Up to 256GB & USB stick |
| Zoom in/out | 8x |
| Language | Multiple |
| Camera System | |
| Diameter | ø23mm*240mm |
| Light | 12 LEDs high light |
| Video resolution | 720*576 px |
| View angle | 105° |
| Skids | 40/80 mm |
| Waterproof | IP68 |
| Suitable pipe diameter | 30-200mm |
| Cable reel | |
| Material | Fiberglass |

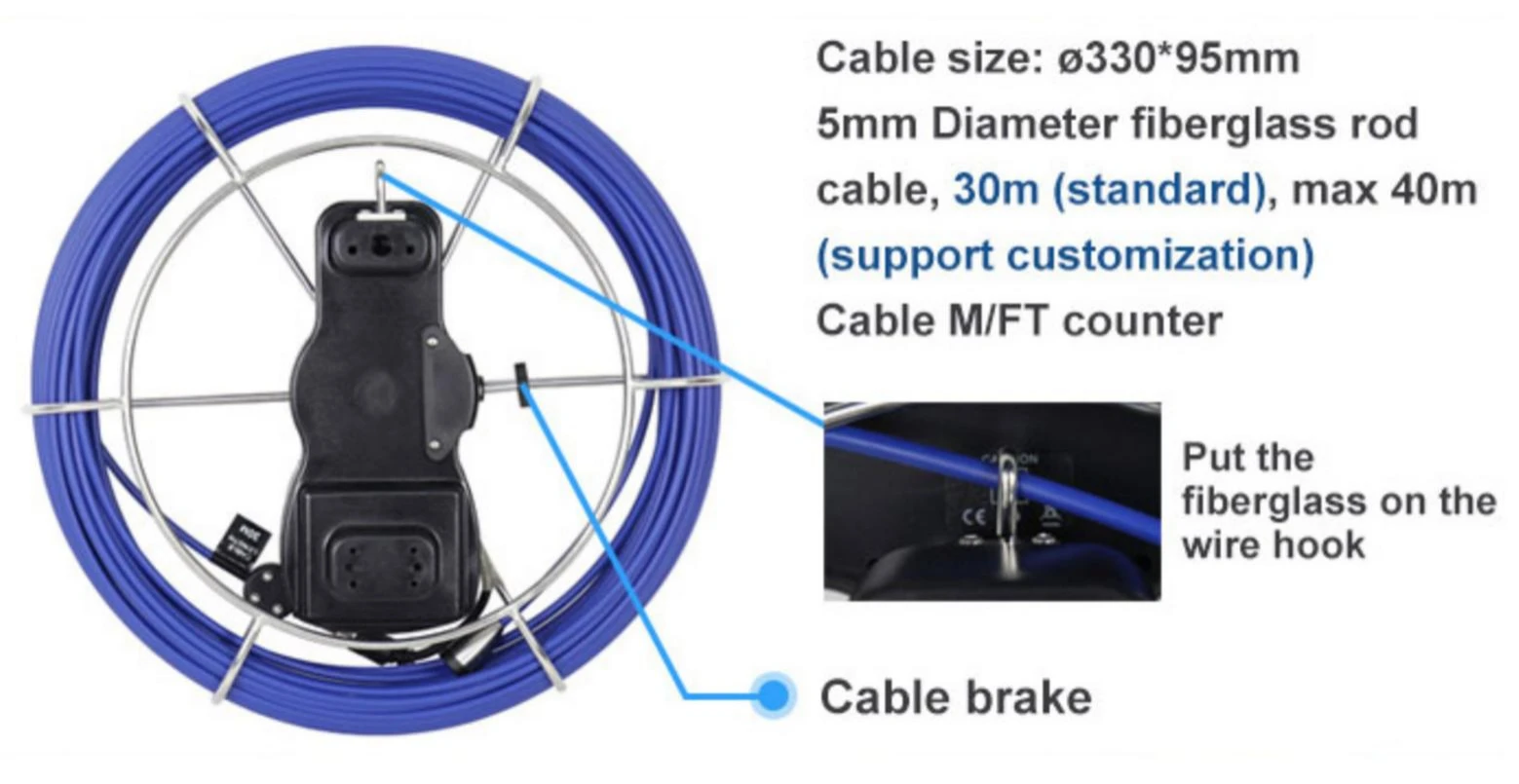

| Cable size | ø330*95mm |
| Cable diameter | ø5mm |
| Length | 30m-40m (Optional) |
| Power Supply | |
| Battery | Built-in rechargeable Li-battery |
| Charge time | 5 hours |
| Working time | 7 hours |
| Package | |
| Size | 511(L)*430(W)*200(H)mm |
| Case material | Engineering plastic |
| Configuration | |

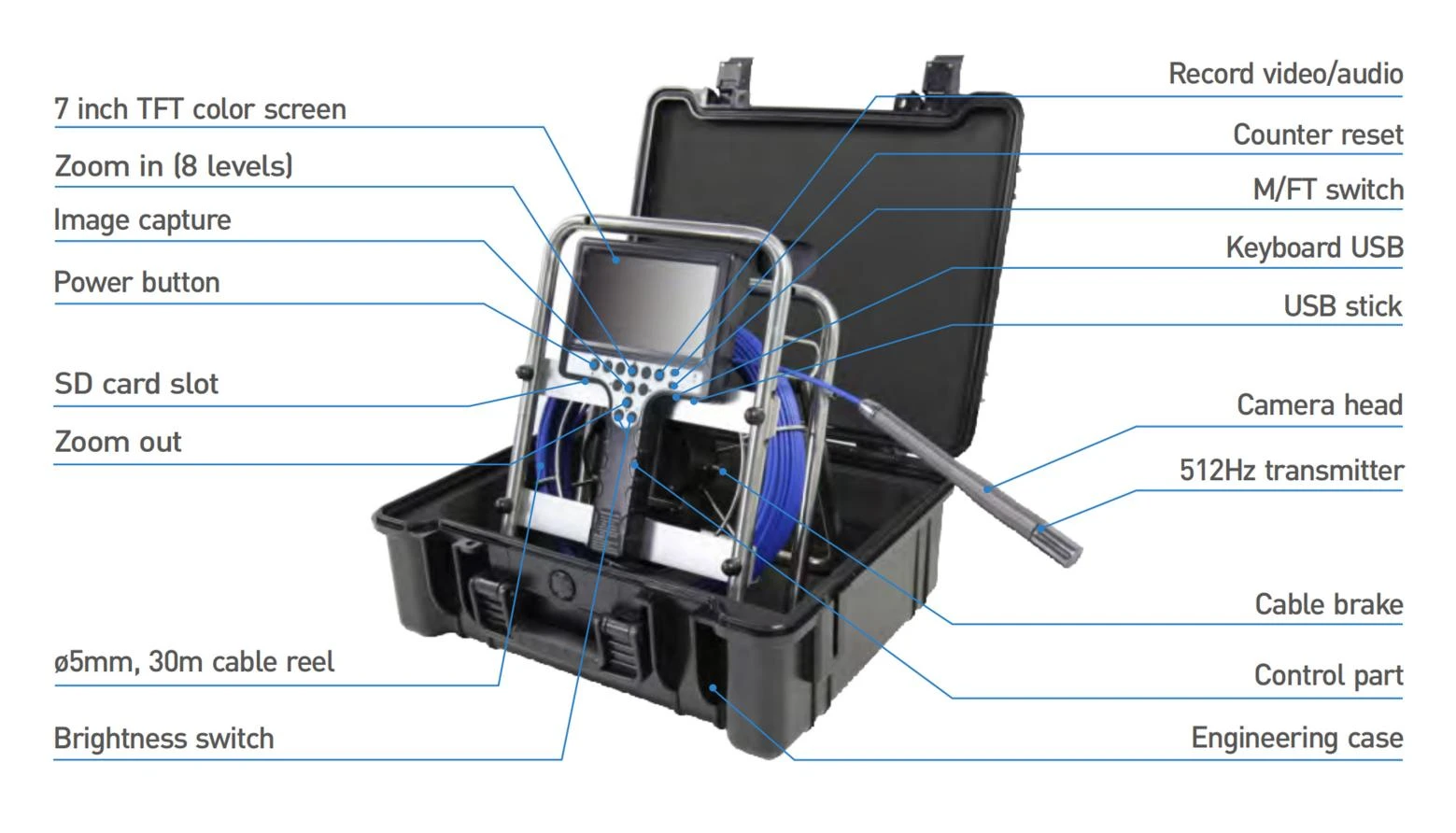

| Standard configuration | 7-inch display control*1,23mm 512Hz transmitter & Self leveling Camera *1, |
| Cable reel *1, Li-battery*1, Stand rail*1, Skid*2 | |
| Charger*1, ABS Case*1 | |
