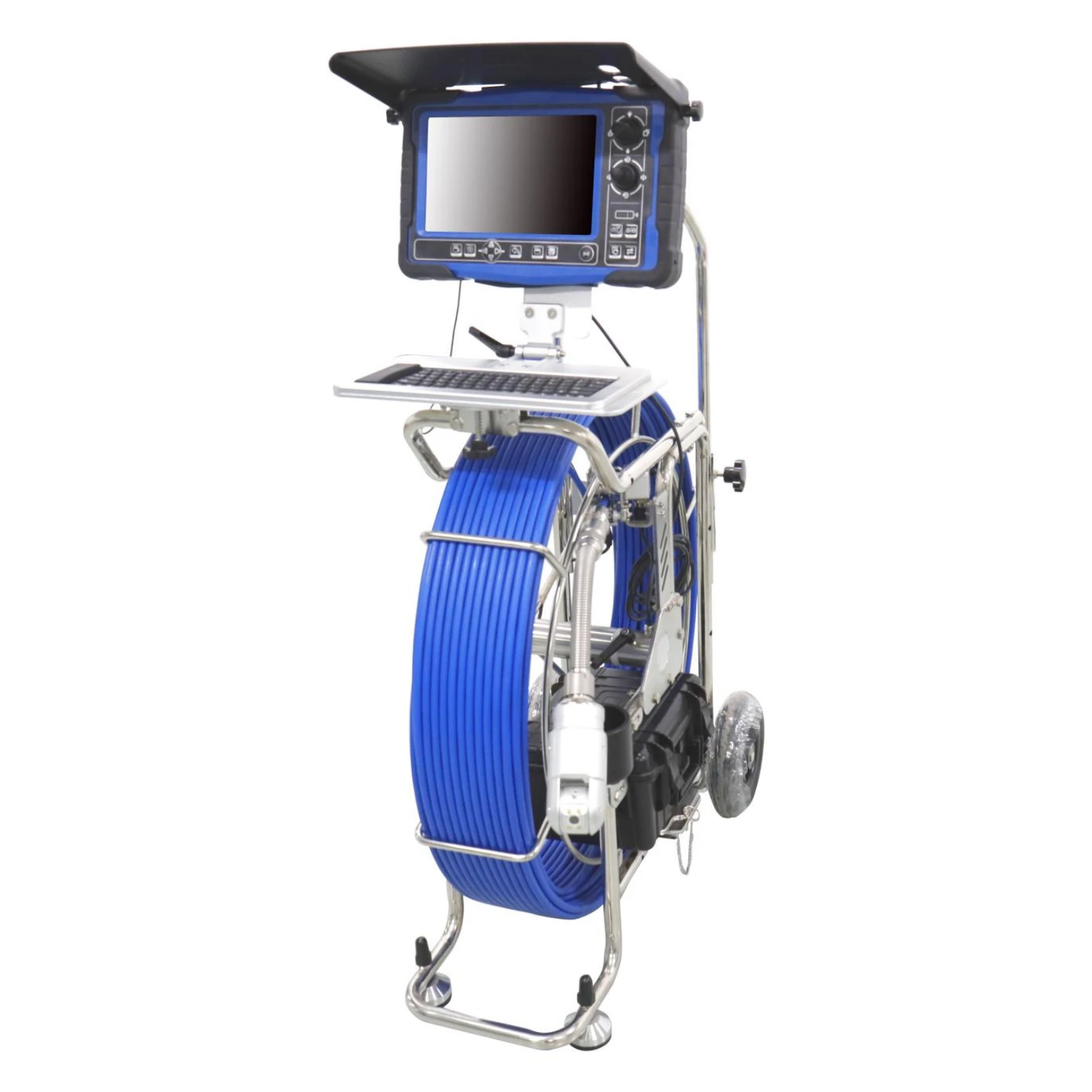

PR Series FHD Pipeline Endoscope
10.1” Sewer Inspection Dual Camera
Rotary FHD Pipeline Endoscope
- 1inch HD LCD screen

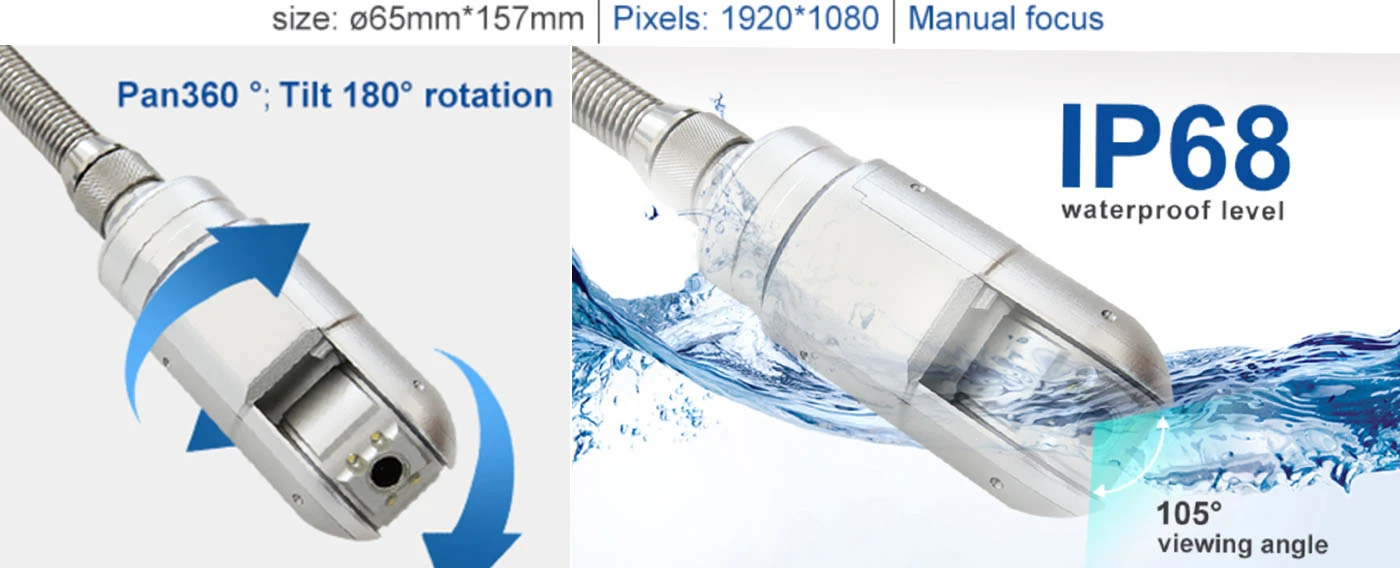

- 65mm FHD Pan 360°; Tilt 180°Rotation camera, suitable pipe diameter 80-900mm

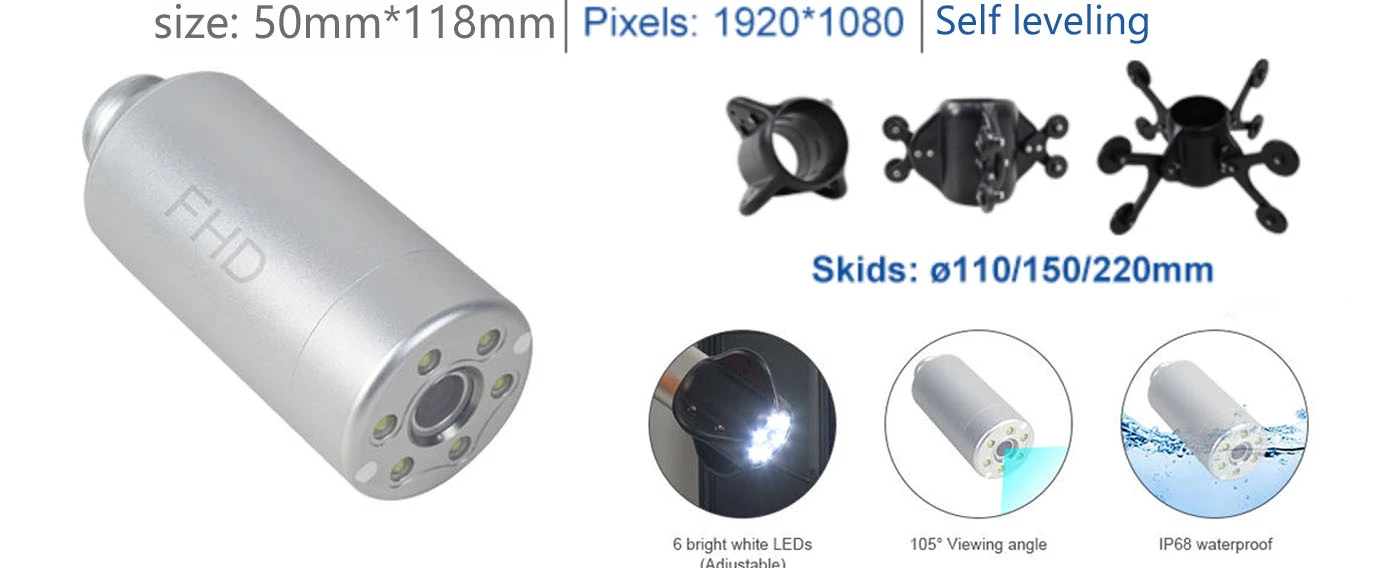

- 50mm FHD Self leveling camera, suitable pipe diameter 60-400mm
- IP68 Waterproof Probe
- One-click photo and video/audio recording
- Zoom function 8X
- Cable M/FT counter and text
- 90°rotating keyboard tray
- Removable 512Hz transmitter

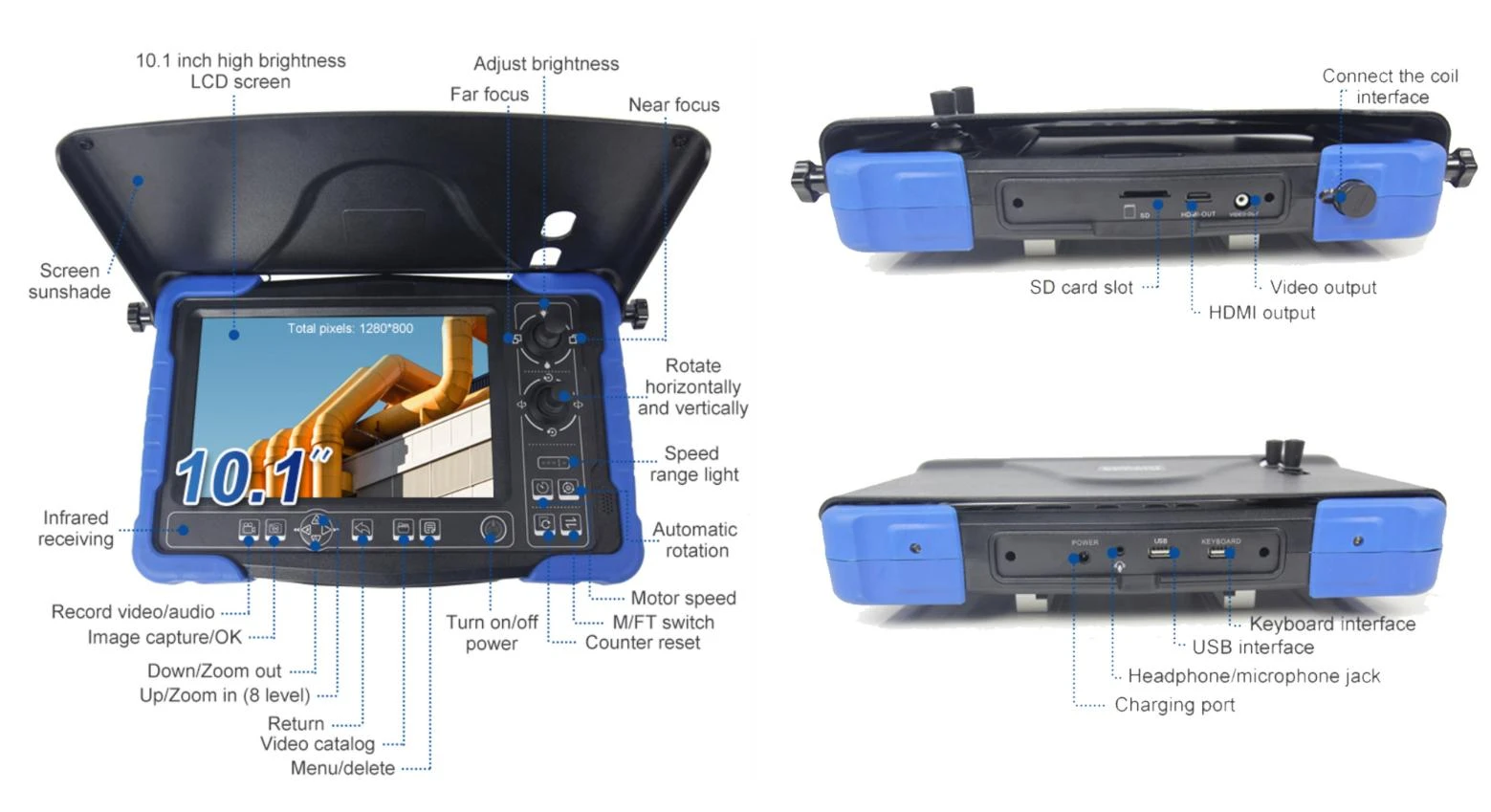

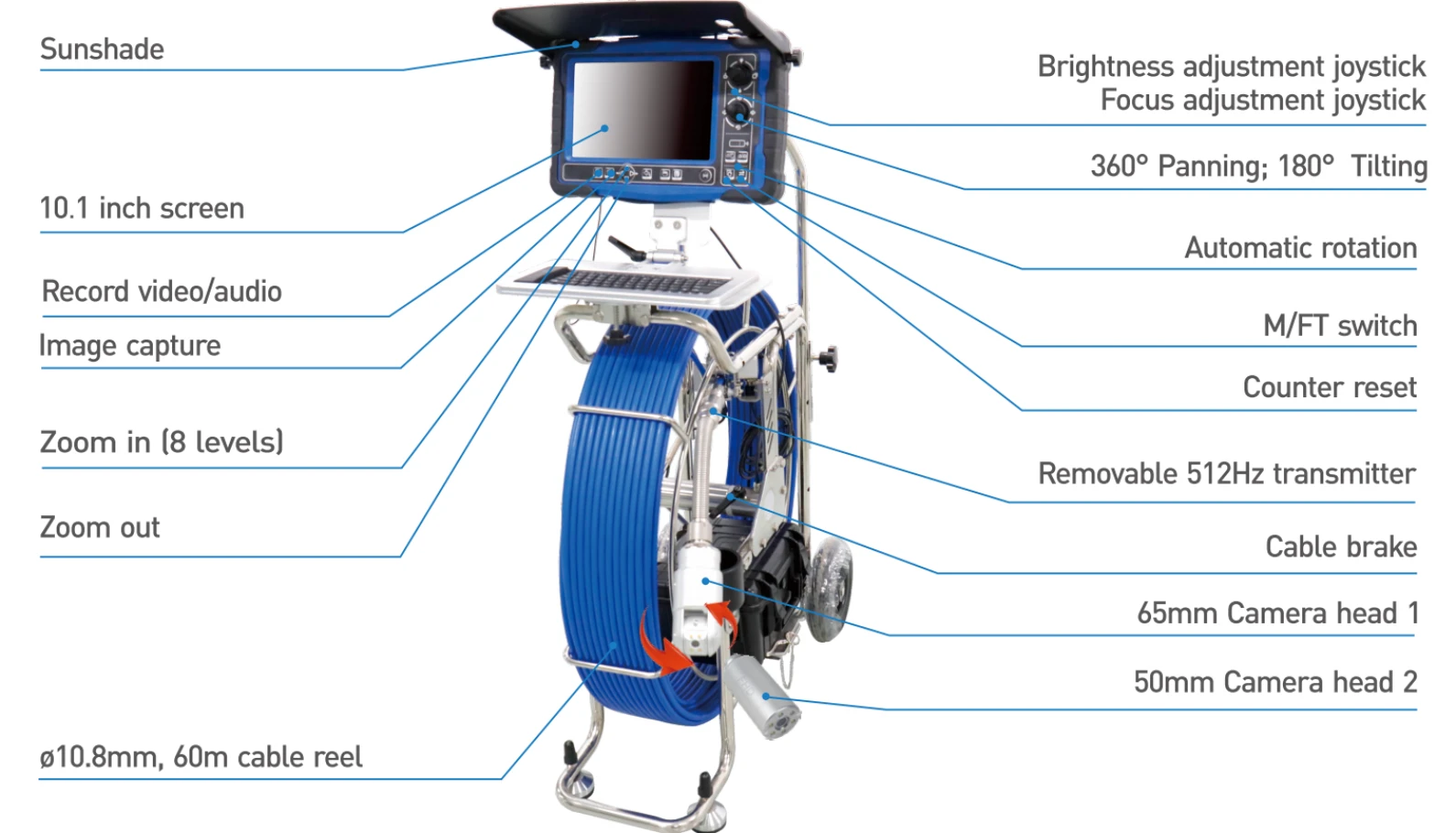

The PR Series is a ” 10.1-inch Rotary FHD Pipeline Endoscope “. Designed with dual camera heads for versatile pipe inspection. The 65mm camera head delivers pan 360°and tilt 180°, enabling full coverage of complex pipe interiors, while the 50mm camera head features a built-in self-leveling function to ensure images remain upright and clear at all times. Both FHD cameras boast an IP68 waterproof rating and high-brightness adjustable LEDs for reliable performance in wet, low-light environments. Its 10.1-inch HD screen, paired with a sunshade, offers excellent visibility outdoors, supports 8 levels of digital zoom, one-touch video/audio recording, and image capture. The integrated 90°rotating keyboard, meter counter and a removable 512Hz transmitter, streamline inspection tracking and annotation. 60m cable reel with a cable brake ensures smooth cable deployment, and the system is ideal for inspecting pipes diameter range from 60mm-900mm

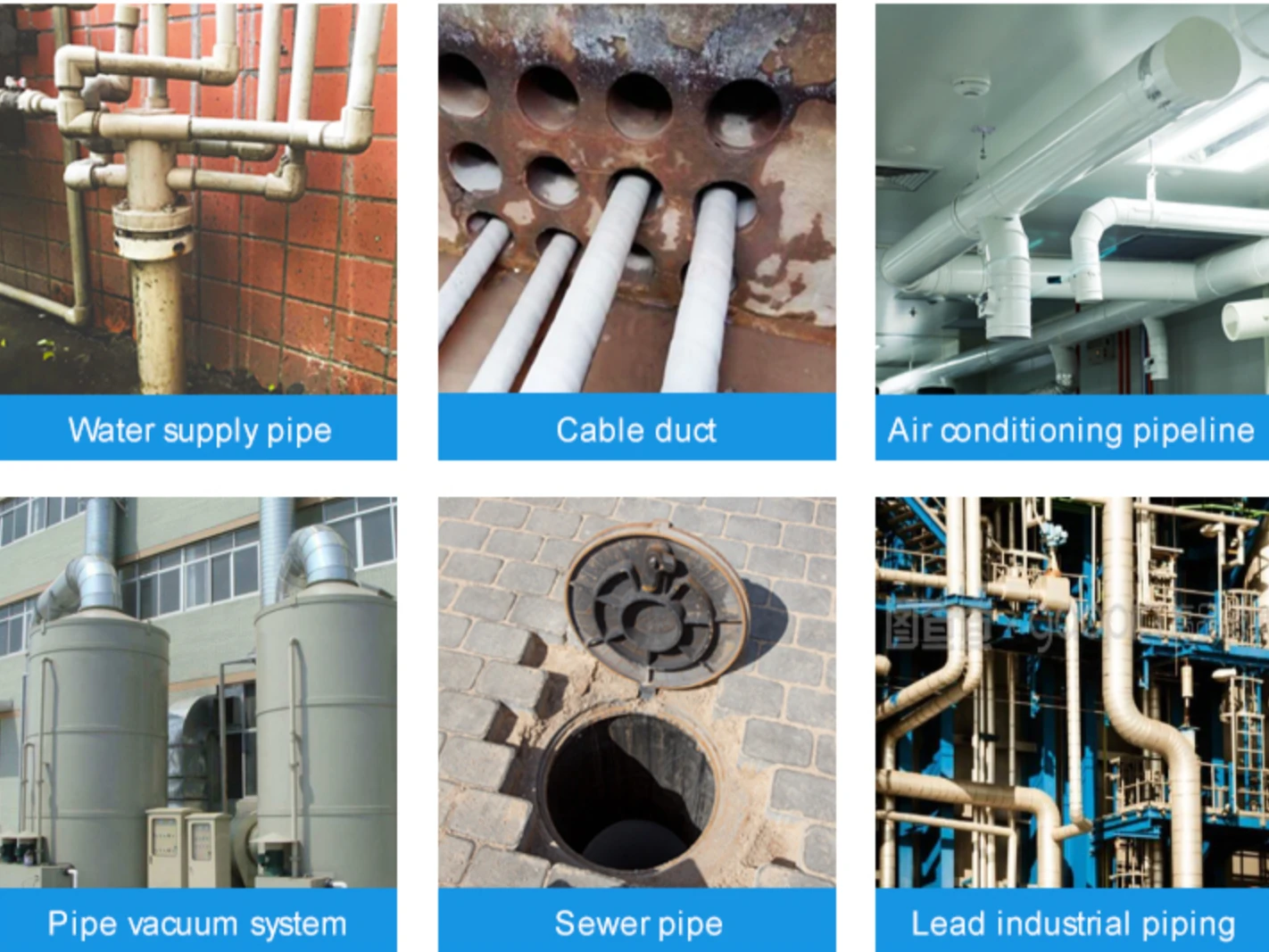

The PR Series 10.1-inch Rotary FHD Pipeline Endoscope is widely used for water supply pipes, large pipe sewer, underground tunnels, air ducts, underground cable pipes etc.. It is an essential tool for municipal maintenance teams, professional pipeline inspection companies, facility managers, and construction engineers, solving pain points like inspection blind spots, inefficient manual checks, and difficulty in accurately locating blockages, cracks or corrosion. It enables non-destructive, time-saving and precise pipeline assessments, helping avoid costly repairs and service disruptions.
| Host system | ||
| Screen | 10.1-inch HD Display | |
| Screen size | 401*240*86.5mm | |
| Display Resolution | 1200*800 px | |
| Video Storage Format | AVI | |
| Photo Format | JPEG | |
| Storage medium | SD card 64GB, Up to 256GB & USB stick | |
| Zoom in/out | 8x | |
| Output Port | HDMI/RCA video output | |
| Language | Multiple | |
| Camera System | ||
| Diameter | Ø65mm*157mm | Ø50mm*118mm |
| Light | 4 LEDs high light | 6 LEDs high light |
| Resolution | 1920*1080 px | |
| Sensor size | 1/3'' CMOS | |
| Lens material | Sapphire glass | |
| View angle | 105° | |
| Skids | 80mm/170-300mm(telescopic) | 110/150/220mm |
| Waterproof | IP68 | |
| Suitable pipe diameter | 80-900mm | 60-400mm |
| Feature | Pan 360°, Tilt 180° | Self leveling |
| Cable reel | ||
| Material | Fiberglass | |
| Cable size | 875*978*460mm | |
| Cable diameter | Ø10.8mm | |
| Length | 60m | |
| Power Supply | ||
| Battery | Built-in 6000mAh rechargeable Li-battery | |
| Input | AC100-240V 50/60HZ | |
| Output | DC 12V/5A | |
| Configuration | ||
| Standard configuration | 10.1-inch HD display*1 ,65mm FHD PT Camera *1,50mm Self leveling Camera*1 | |
| Cable reel *1, Li-battery*1, Keyboard*1, Skid*5 | ||
| Connecting cable*2, Charger*1, Toolbox*1 | ||
