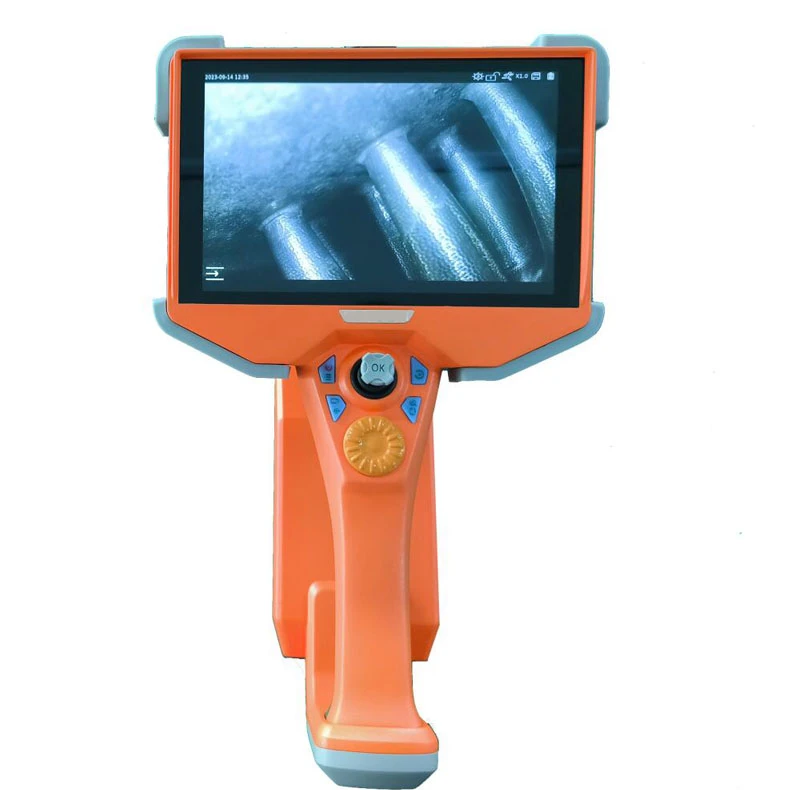

MA Series 360° Articulation 1080P Touch Screen 7” Acute Motor-driven HD Borescope
360° Articulation 1080P Touch Screen
7” Acute Motor-driven HD Borescope
- 7inch HD touch screen

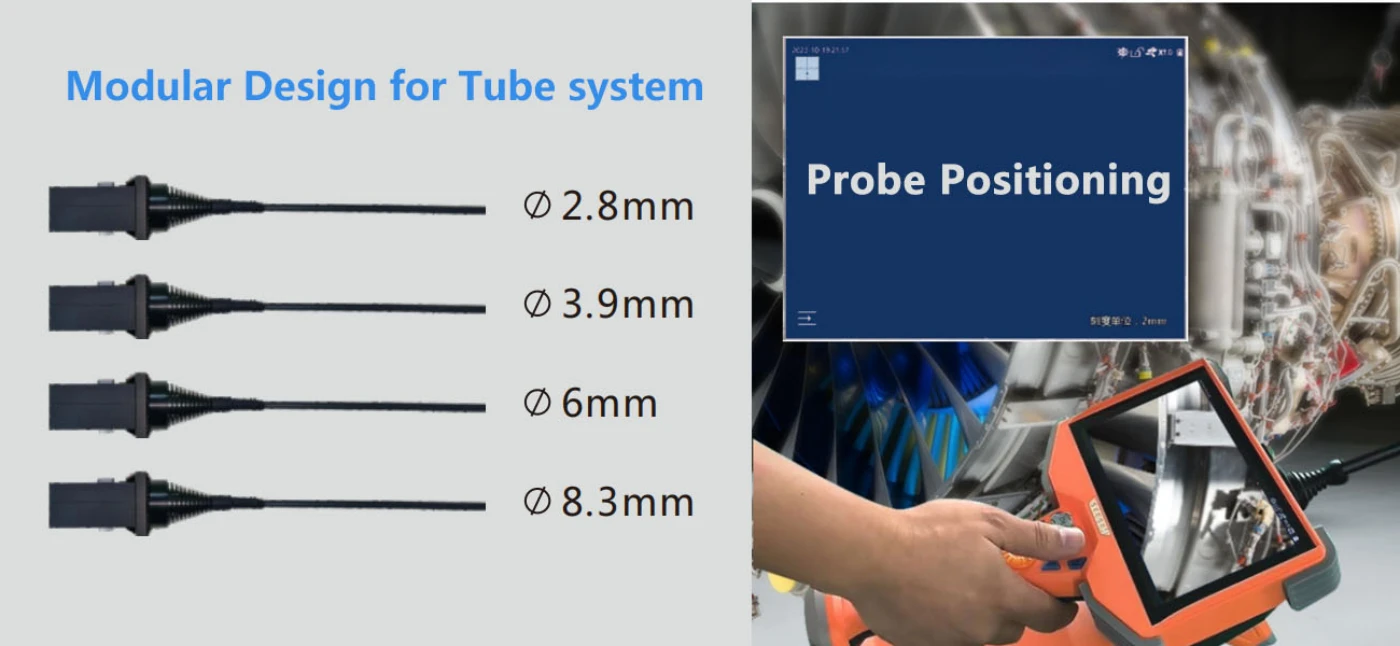

- Modular Design Detachable Tube
- 1Mega Pixel 1080P HD camera
- All-way 360°motor-driven articulation
- Probe lock and fine-tuned

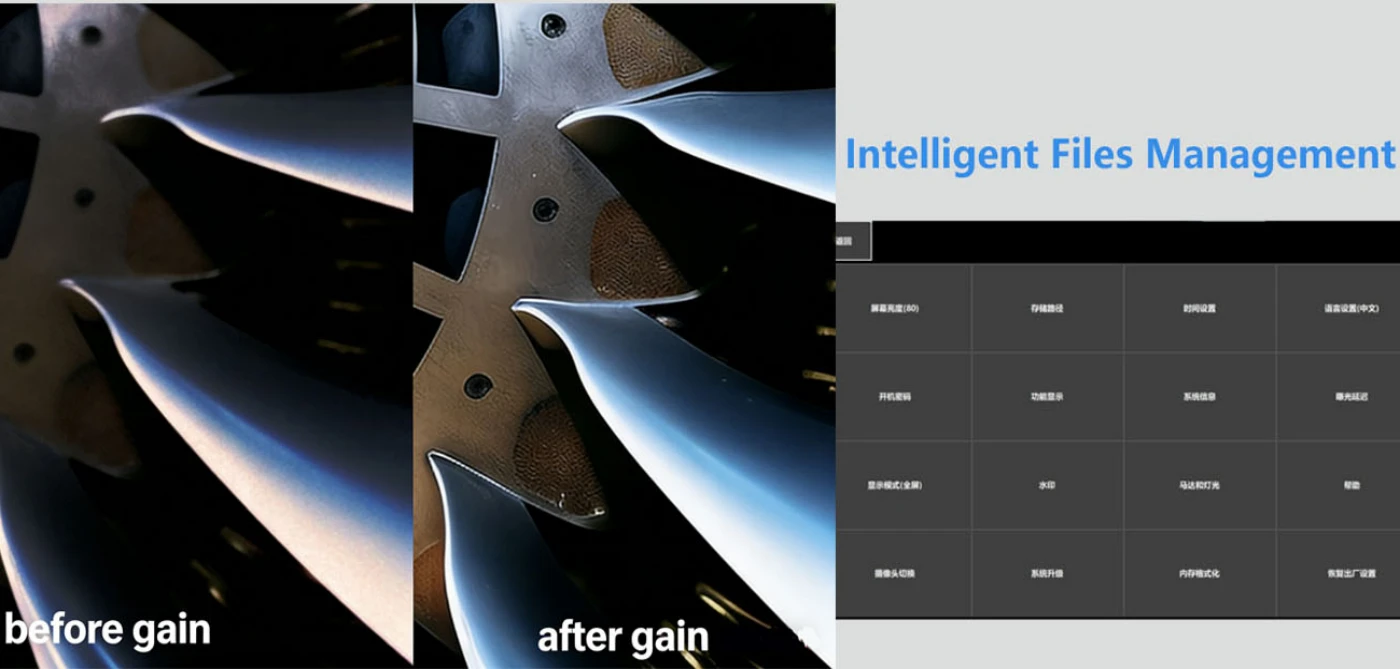

- Manual and automatic gain
- Simultaneous display on different screens
- Real-time 25X zoom, image playback 8X zoom
The MA Series is a ” 7-inch All-Way Motor-driven Articulation HD Borescope”. It features a four-way 360° motor-driven articulation HD camera gives super clear and real restore image effect. Equipped with probe positioning and fine-tuned, it enables more accurate and efficient detection. With 7-inch Ultra HD smart touch screen supports image effect adjustment, manual and automatic gain for image processing systems. Module design, compatible with different tubes system. It supports simultaneous display on different screens, facilitating real-time detail sharing and collaborative defect judgment among teams and also have intelligent files management function.

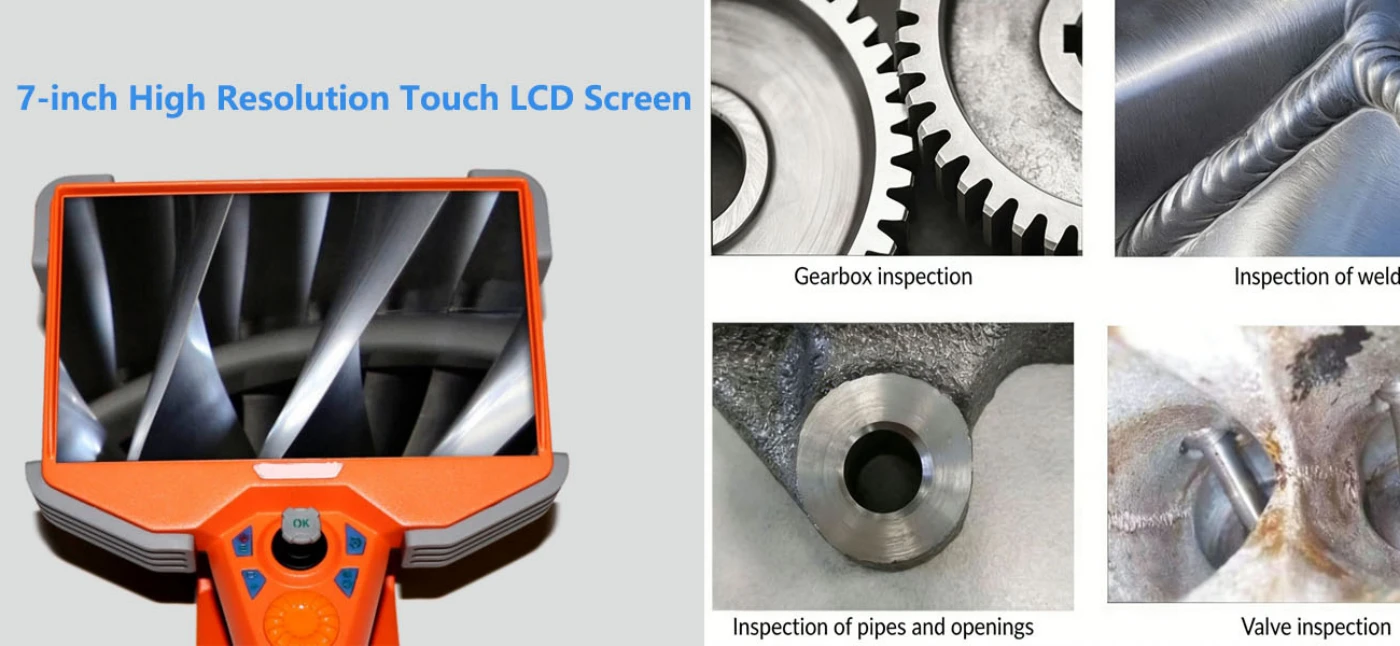

The MA Series 7-inch All-Way Motor-driven Articulation HD Borescope can be widely used in various industrial fields such as aerospace, petrochemical industry, electric power, petrochemical engineering, parts casting, food, pharmaceutical and medical device sectors. With the advantages of accurate and efficient performance, it can fully meet the differentiated needs of different industries in equipment testing, fault troubleshooting, maintenance and repair, and escort the stability and safety of production and operation in various fields
| Host system | |
| Screen size | 7-inch HD IPS touchscreen |
| Display Resolution | 1920*1200 |
| Rotation Mode | 360° Motor driven articulation control |
| Zoom In/Out | Support real-time 25X zoom, image playback 8X zoom |
| Image rotation | Real time images can rotate 0 °/90 °/180 °/270 ° |
| Image Effect | Negative film/ black & white/standard/color with gain control |
| Photo Format | JPEG/BMP |
| Video Format | MP4/AVI, capture the shot during video |
| Video Playback | Video playback can be fast forward or rewind |
| File Storage | Build-in 32G storage, also support TF card and USB Flash |
| Output Port | HDMI, 3.5 audio port, USB |
| Simultaneous display | Different screens can display the same content |
| Language | Multiple |
| Compatibility | Tube with different diameters |
| Host size | 318mm*196mm*158mm |
| Host weight | ＜3kg (including battery) |
| Shell material | Aluminum alloy+PC |
| Graffiti notes | Text, arrows, circles, boxes, time and watermarks |
| File management | File preview can be displayed in list or grid view, with options to view in full-screen mode, delete files, copy files, and rename files |
| Camera System | |

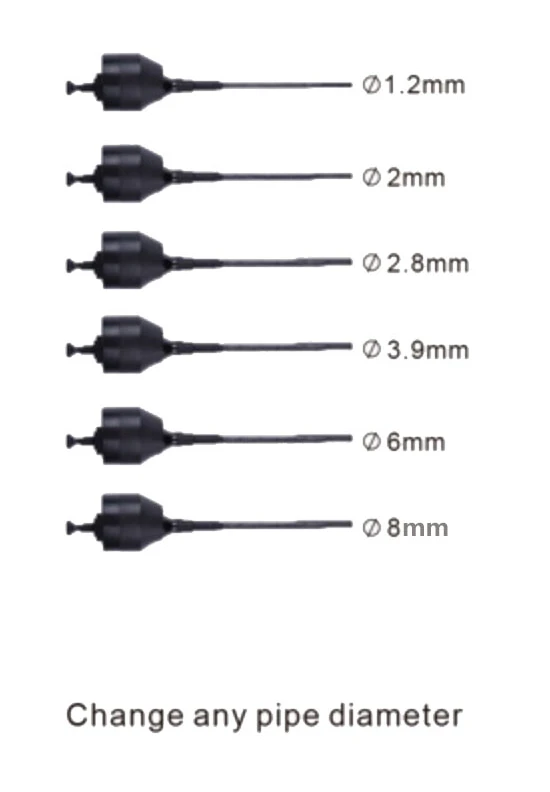

| Diameter | 2.8mm/3.9mm/6.0mm/8.3mm |
| Viewing Direction | Front/Side/Dual View |
| Camera pixel | 1.0 Mega/0.52 Mega |
| Light | LED/ Optic Fiber |
| LED Adjustment | Two modes: multi-level and auto adjustment |
| FOV | 120° |
| DOF | 7-150mm/3-50mm |
| Steering Angle | Four-way 360° |
| Bending Angle | max:180° |
| Probe Positioning | Articulation lock, fine turn the probe |
| Probe material | Titanium alloy |
| Tube Material | 4-layer tungsten alloy wire braided |
| Tube Length | 1m/2m/3m |
| Power Supply | |
| Working voltage | DC 15V3A |
| Maximum power | >30W |
| Battery | 5000mAh Li-battery, Voltage: 10.8V, Power: 54Wh |
| Charging | AC220V power adapter power supply and charging |
| Working time | ≥4 hours |
| Operating environment | |
| Host operating temperature | -25℃-60℃ |
| Probe operating temperature | -25-85℃ |
| Storage temperature | -40-60℃ |
| Relative humidity | 15%~90% without condensation |
| Water/Dust Proof | Probe/tube: IP67; Host: IP54 |
| Configuration | |
| Standard configuration | 7-inch display Motor driven articulation videoscope*1 |
| Li-Battery*1, Power adapter*1, Toolbox*1 | |
