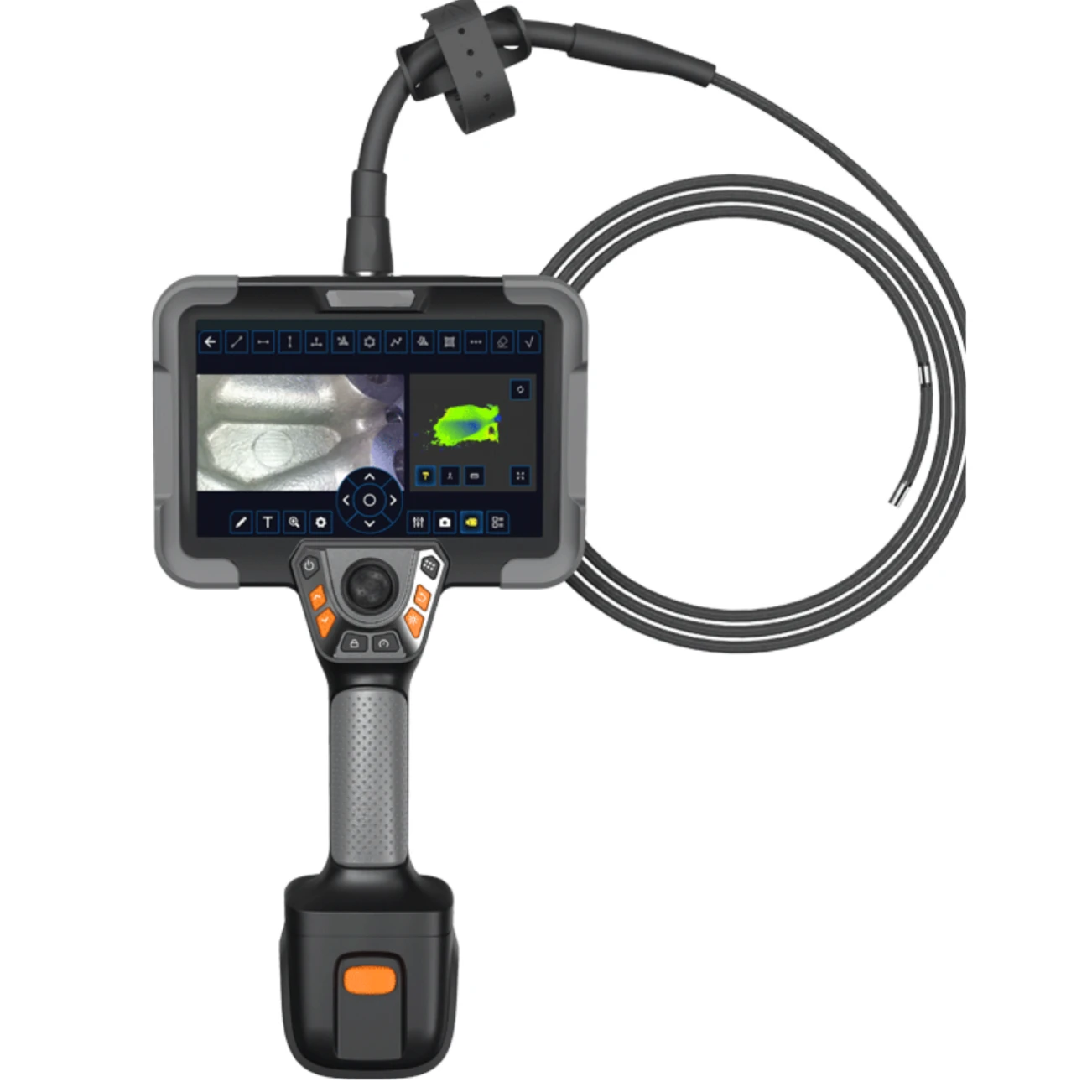

DE Series 360° Articulation Ultra HD Touch Screen 7” Elite Motor-Driven 3D Measurement Borescope
360° Articulation Ultra HD Touch Screen
7” Elite Motor-Driven 3D Measurement Borescope
- 7inch HD touch screen

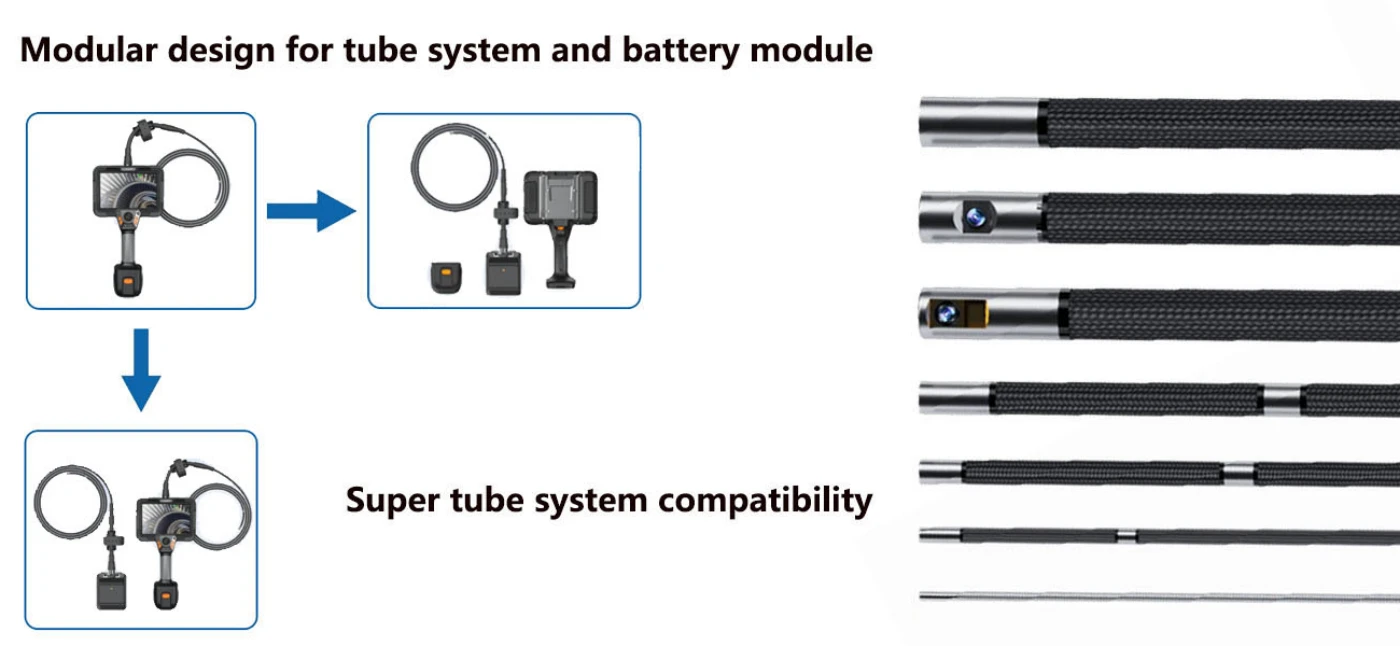

- Modular Design Detachable Tube & Display
- 1Mega Pixel 1080P HD camera

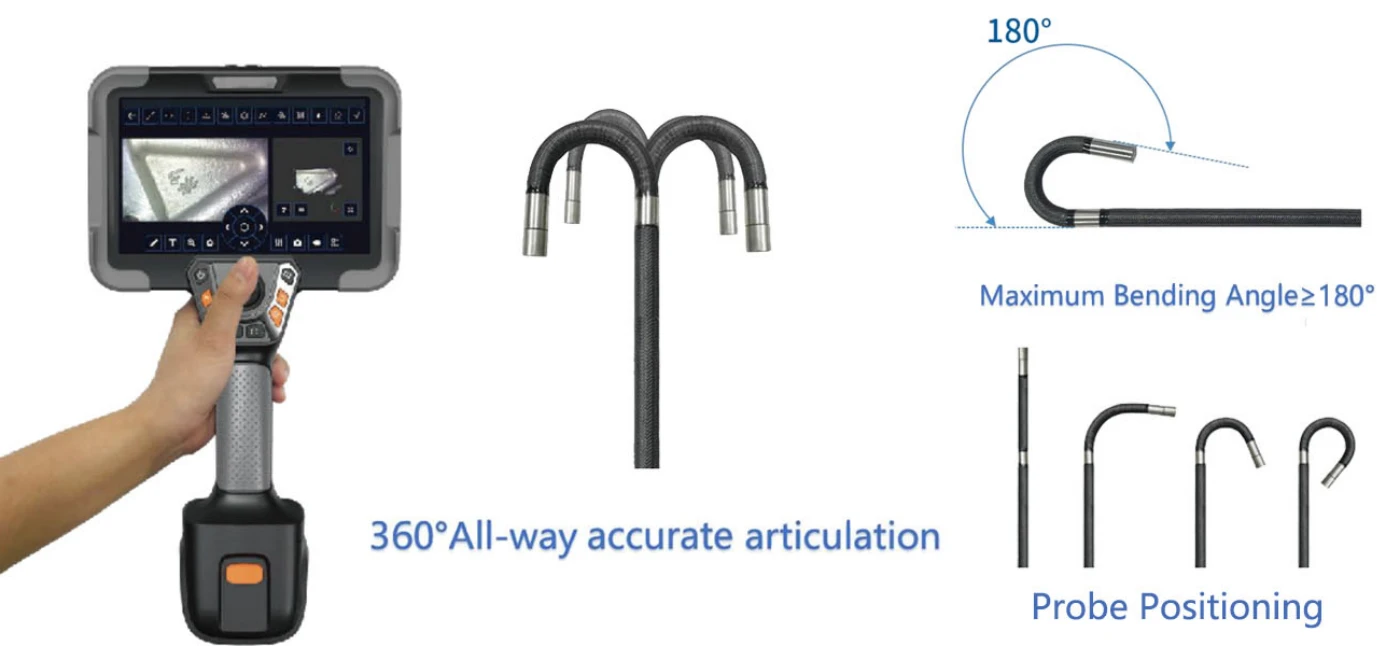

- All-way 360°motor-driven articulation
- Fast/slow model, auto reset
- One click probe lock and Photo/Video
- Probe Positioning and Fine tuning
- Strong intelligent image processing system
- MDI report generation
- Intelligent and convenient file management
- Craftsmanship with Military Quality

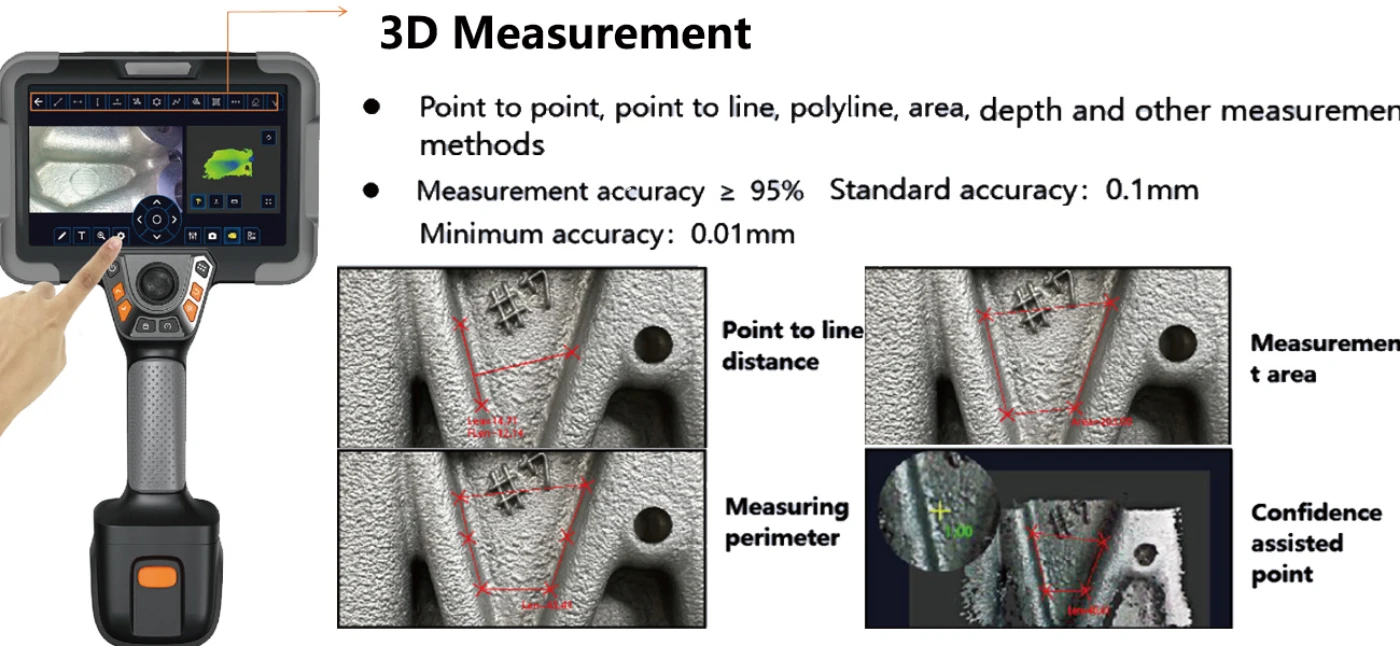

- Ultra-high precision 3D Measurement function

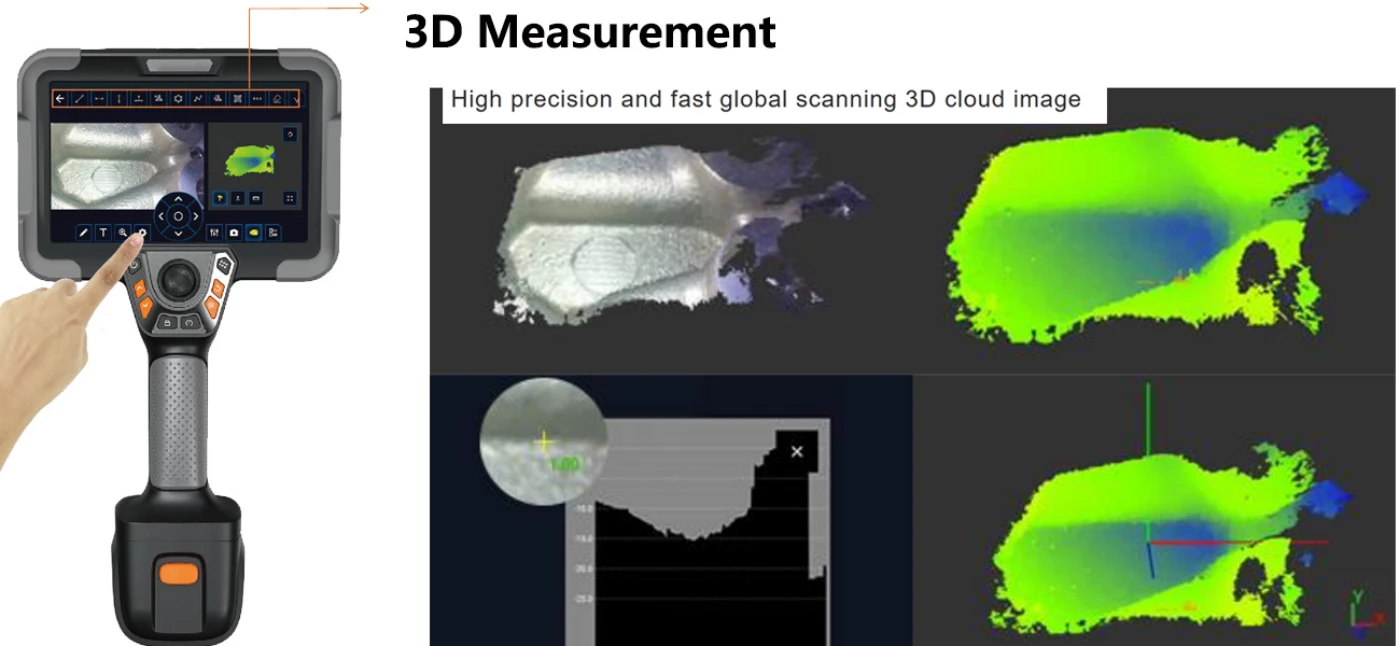

The DE Series is a ” 7-inch All-Way Motor-driven Articulation 3D Measurement Borescope”. It features a four-way 360° motor-driven articulation HD camera with adjustable LED lights, delivering ultra-clear imaging. Boasting one-key probe lock, precise steering positioning, step fine-tuning, and fast/slow model control, the device ensures more efficient and hassle-free detection operations. It features a 7-inch HD smart touch screen with a joystick, enabling sensitive touch response and accurate operation. Adopting a modular design, it is compatible with different tube systems to meet diverse on-site needs. In addition, the built-in MDI report generation and intelligent file management functions allow users to generate professional, standardized inspection reports with ease. What’s more, the borescope supports fast, high-precision global scanning, which enables 3D point cloud modeling and 3D measurement. The measurement accuracy can reach more than 95%!

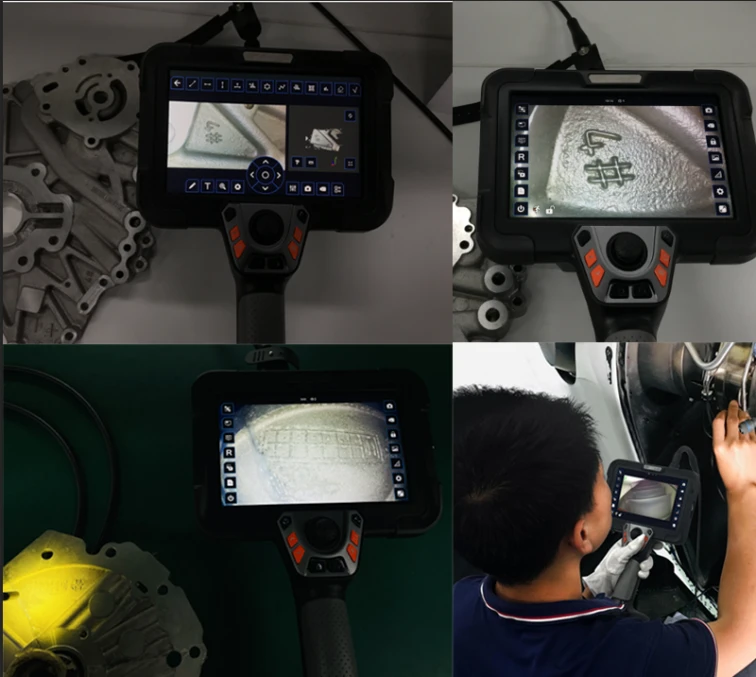

The DE Series 7-inch All-Way Motor-driven Articulation 3D Measurement Borescope can be widely used in industrial fields demanding high safety and precision, like automotive manufacturing, inspections, aerospace, precision casting and more. It enables non-destructive testing of key parts such as complex cavities and hidden welds. It collects 3D data in real time for accurate modeling, quickly identifies dimensional deviations and potential defects, greatly improves inspection efficiency, and acts as a core tool for quality control in high-end manufacturing.
|
Host system |
|
|
Screen size |
7-inch HD touchscreen |
|
Display Resolution |
1920*1200 |
|
Rotation Mode |
360° Motor driven articulation control |
|
Zoom In/Out |
8X |
|
Image display scale |
Image 1:1 / full screen |
|
Image Effect |
Negative film / black & white / standard |
|
Image freeze |
Freeze the view and call the brush to save the graffiti in real time |
|
Image Adjustment |
Brightness, contrast, gamma, chroma, saturation, sharpness, white balance |
|
Image mirroring and rotation |
0° / 90° / 180° / 270° |
|
Photo Format |
JPG |
|
Video Format |
MP4, capture during video and re-record after pause |
|
File Storage |
Internal memory, SD card, USB flash disk |
|
Output Port |
HDMI same screen output |
|
Data Port |
HDMI, USB, Type-C, SD card, 3.5mm earphone |
|
Language |
Multiple |
|
Compatibility |
Tube with different diameters |
|
Host size |
334 × 167 × 132 mm |
|
Host weight |
About 2.3 kg (including battery) |
|
Shell material |
Engineering alloy & aviation aluminum alloy |
|
Guidance control |
Fast/slow motor-driven guidance, automatic reset |
|

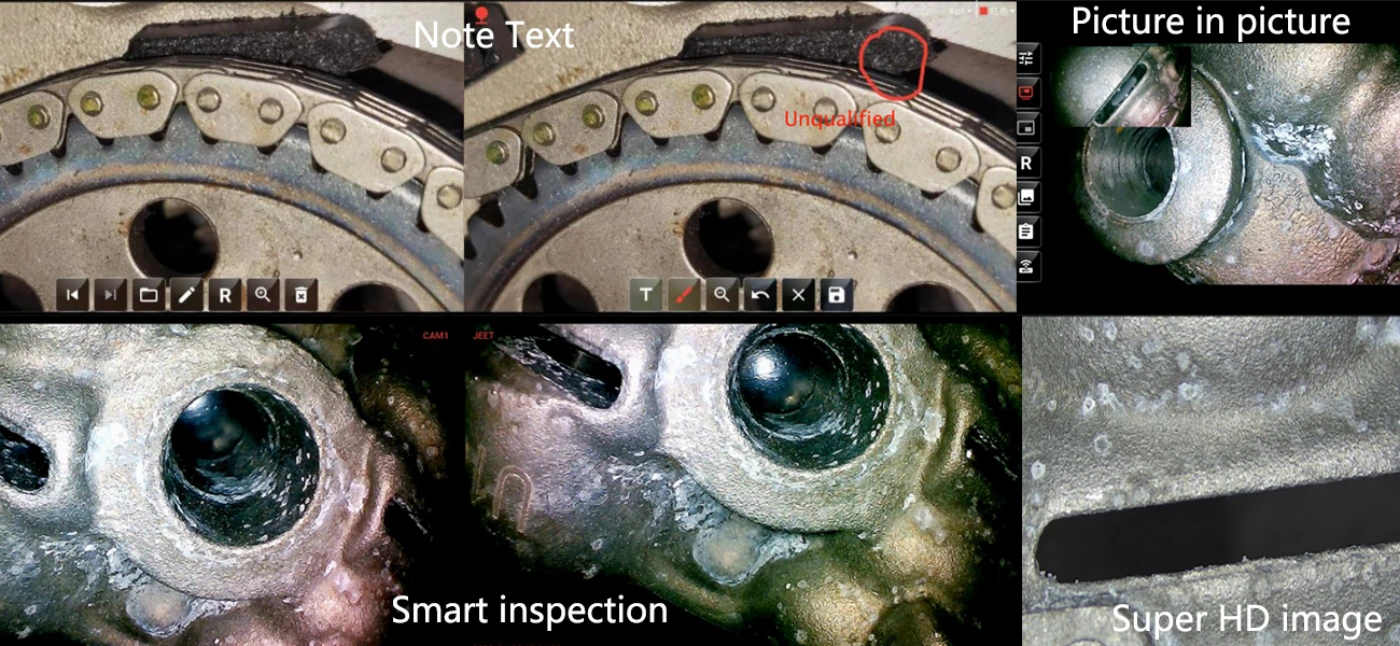

Graffiti notes |
Text notes, graffiti, watermark |
|
Dual camera preview |
Dual camera dynamic display on same screen |
|
Picture in picture |
Main screen and small window switchable |
|
WiFi Transmission |
Wireless transmission to mobile phones and computers |
|
Standard Accuracy |
0.1 mm |
|
Minimum Accuracy |
0.01 mm |
|
Measurement Accuracy |
≥95% |
