BP Series 360° Articulation 1080P HD Joystick Control 5.1” Pro Borescope
360° Articulation 1080P HD Joystick Control
5.1” Pro Borescope
- 1inch IPS HD large screen
- Modular Design Detachable Probe & Display
- 1Mega Pixel 1080P HD camera
- All-way 360°Joystick control articulation
- Strong intelligent image processing system
- High Temperature Warning
- WiFi transmission
- Dual battery design, Up to 8 hours
The BP Series is a ” 5.1-inch All-Way Articulation HD Pro Borescope”. It features a four-way 360° Joystick control articulating HD camera with high bright adjustable LED lights gives crystal-clear images, precise probe locking technology, make the detection more accurate and efficient. With 5.1-inch high-definition full-view display and strong intelligent image processing system to truly restore the detection image effect. Module design, the display and tube can be easily dismantled and replaced. Compatible with different tubes and front view/ side view/dual camera probes. High-temperature warning and IP67 waterproof rating ensures safety use in heated or wet environments. Dual battery design, makes work effortless

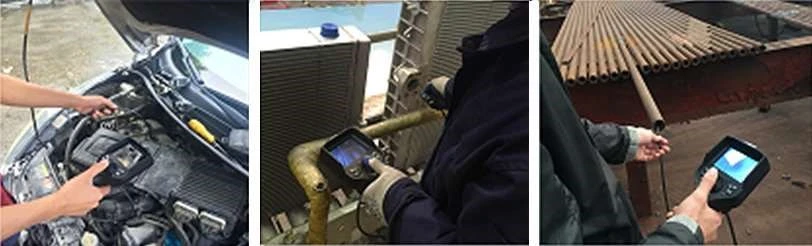

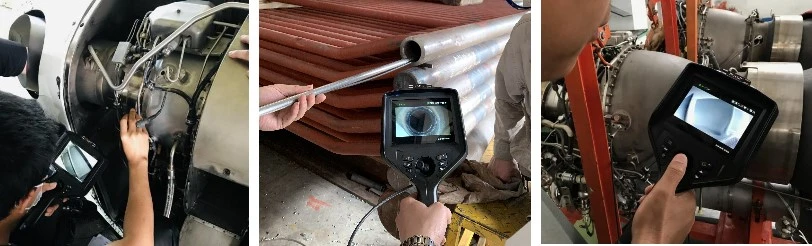

The BP Series 5.1-inch Multifunctional All-Way Articulation HD Pro Borescope can be widely used in aerospace, automobile manufacturing, police safety, energy and power, military manufacturing, special inspection systems, petrochemicals, food and drug machines, machine casting, rail transit, municipal pipelines to inspect engines, pipes, and confined spaces, offering a comprehensive, high-quality visual inspection solution.
| Host system | |||
|---|---|---|---|
| Screen size | 5.1-inch IPS display with sunshade design | ||
| Display Resolution | 1280*960 | ||
| Zoom In/Out | 8X | ||
| Image Effect | Negative film/ black & white/standard | ||
| Image Rotate | 0° / 90° / 180° / 270° | ||
| White Balance Suppression | 5 levels adjustable | ||
| White Balance | Auto white balance | ||
| Screen Scale Function | Concentric circle scale / Cross line-scale | ||
| Photo/Video Format | JPEG/MOV | ||
| File Storage | Standard TF card: 16G | ||
| Output Port | HDMI video output, Micro USB port | ||
| Language | Multiple | ||
| Host size | 324.3*161.3*91.2mm | ||
| Compatibility | Interchangeable monitor and tube with different diameters | ||
| Host weight | ≤0.8Kg (including battery) | ||

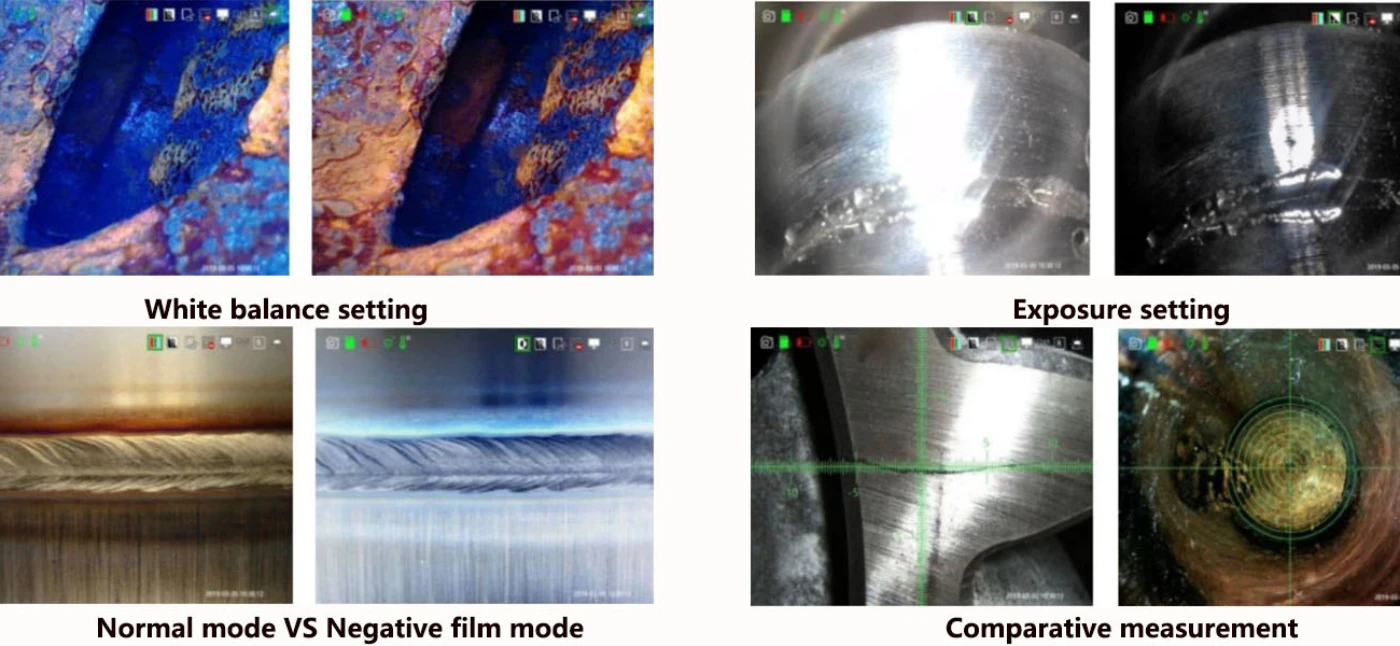

| Software Function | Image effect, exposure adjust, image freezing, scale on the screen, aspect ratio adjust, digital zoom, image rotate, white balance adjust | ||
| Camera System | |||
| Diameter | 6mm | 4.2mm | 3.8mm |
| Viewing Direction | Front/Side/Dual View | Front View | Front/Side/Dual View |
| Camera pixel | 1.0 Mega | ||
| Image Resolution | 1280*720 | ||
| Video Resolution | 1280*720 | ||
| Light | LED/ Optic Fiber | ||
| Brightness Levels | 0-9 level adjustment | ||
| FOV | 120° | ||
| DOF | 10-100mm / 5-80mm / 5-150mm / 50mm-∞ | ||

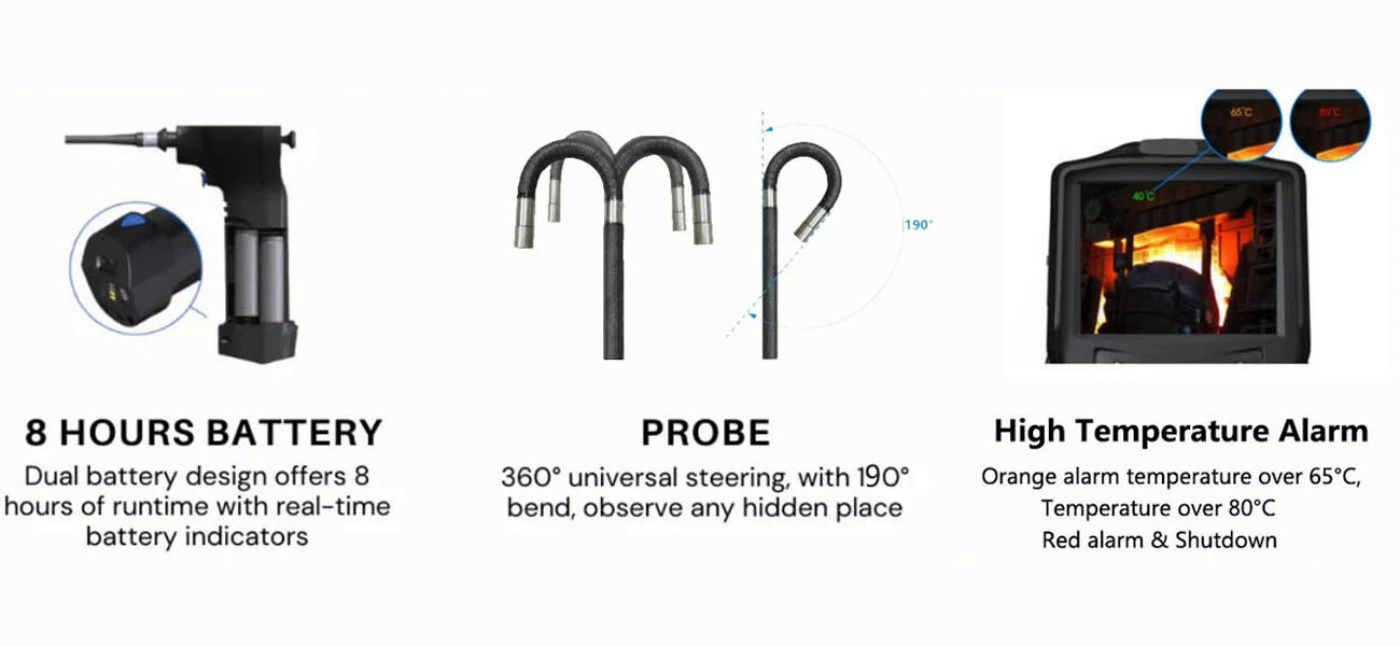

| Steering Angle | Four-way 360° | ||
| Bending Angle | max:190° | ||
| Probe Positioning | Damping positioning & articulation lock device | ||
| Tube Material | wear-resistant tungsten alloy wire | ||
| Tube Length | 1m/1.5m/2m/3m | ||
| Power Supply | |||
| Battery Charging | DC5V 1A, 3.7V | ||
| Battery | 3200mAh Li-battery ×2 | ||
| Working time | 8 hours | ||
| Operating environment | |||
| Host operating temperature | -10℃ ~ 50℃ | ||
| Probe operating temperature | -20℃ ~ 70℃ | ||
| Storage temperature | -20℃ ~ 60℃ | ||
| Relative humidity | Max 90%, No condensation | ||
| Water/Dust Proof | Probe/tube: IP67; Host: IP65 | ||
| Configuration | |||
| Standard configuration | 5.1-inch display articulating videoscope ×1 | ||
| Charging cable ×1, 3200mAh battery ×2, Charger ×1, Toolbox ×1 | |||
