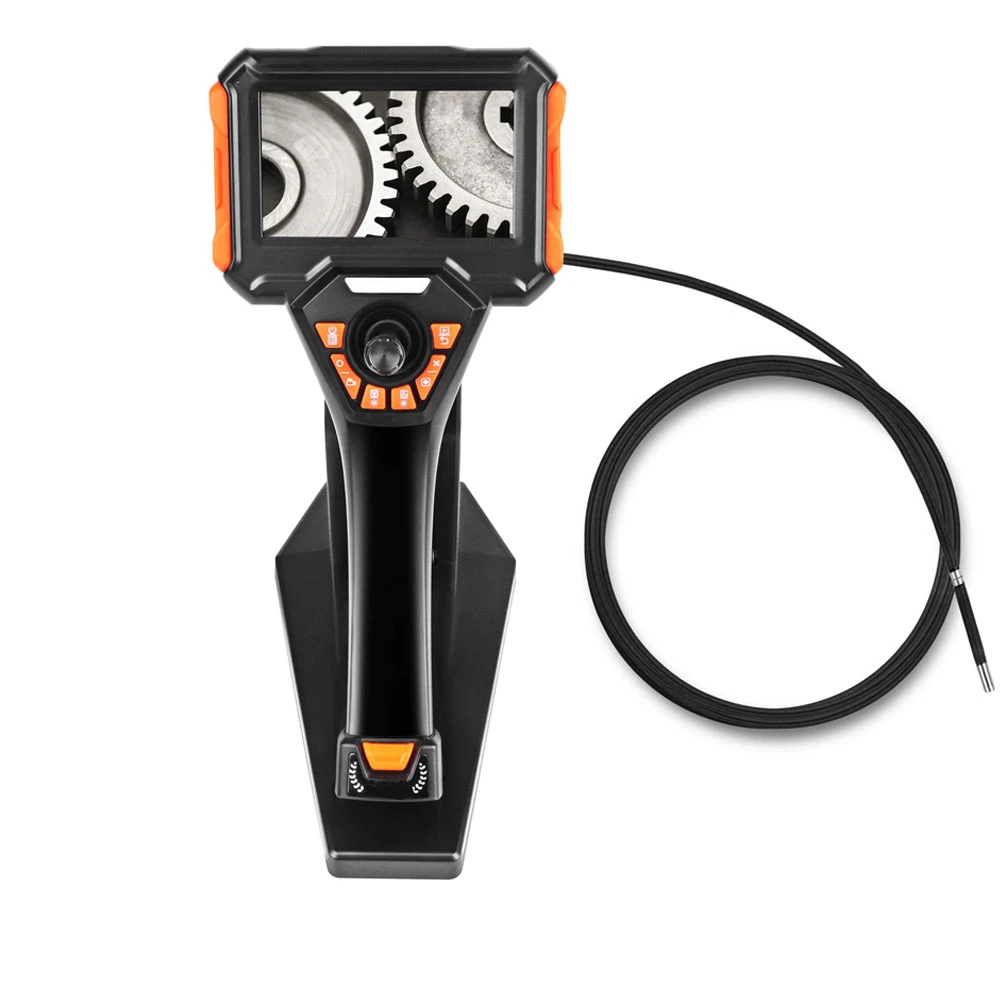

BO Series 360° Articulation 1080P HD Joystick Control 4.3” Optimal HD Borescope
360° Articulation 1080P HD Joystick Control
4.3” Optimal HD Borescope
- 3inch WVGA Sunscreen
- 1Mega Pixel 1080P HD camera

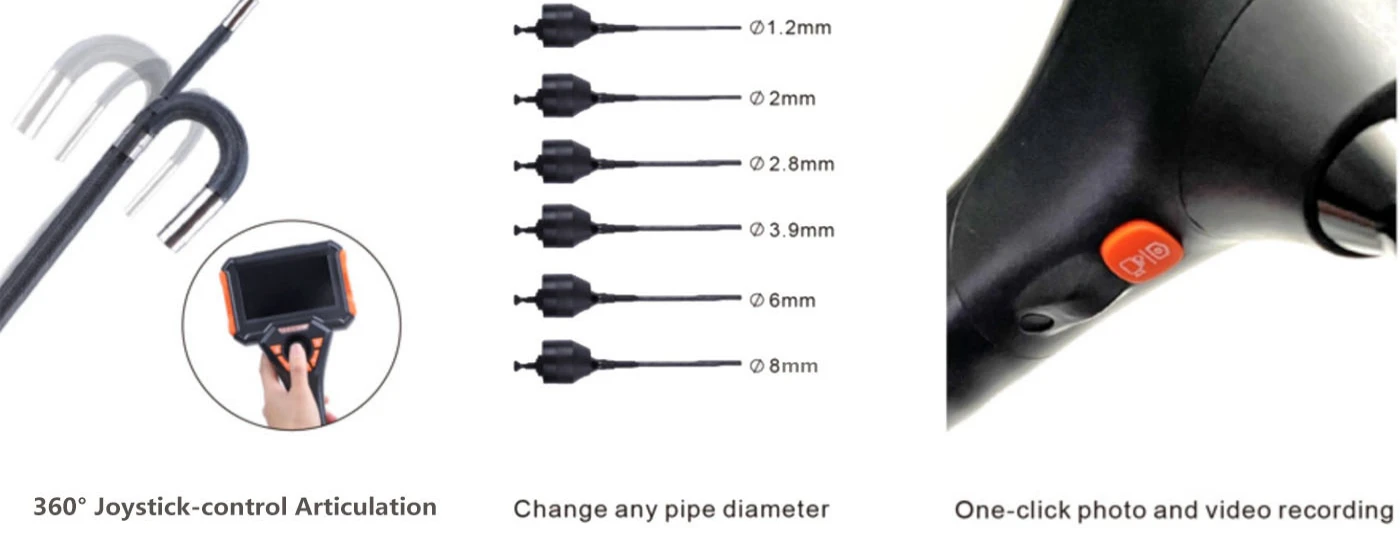

- All-way 360°articulation
- 9mm-8mm Tube system
- IP68 Waterproof Probe
- One-click photo/Video capture
- 4X real-time zoom/8X playback zoom

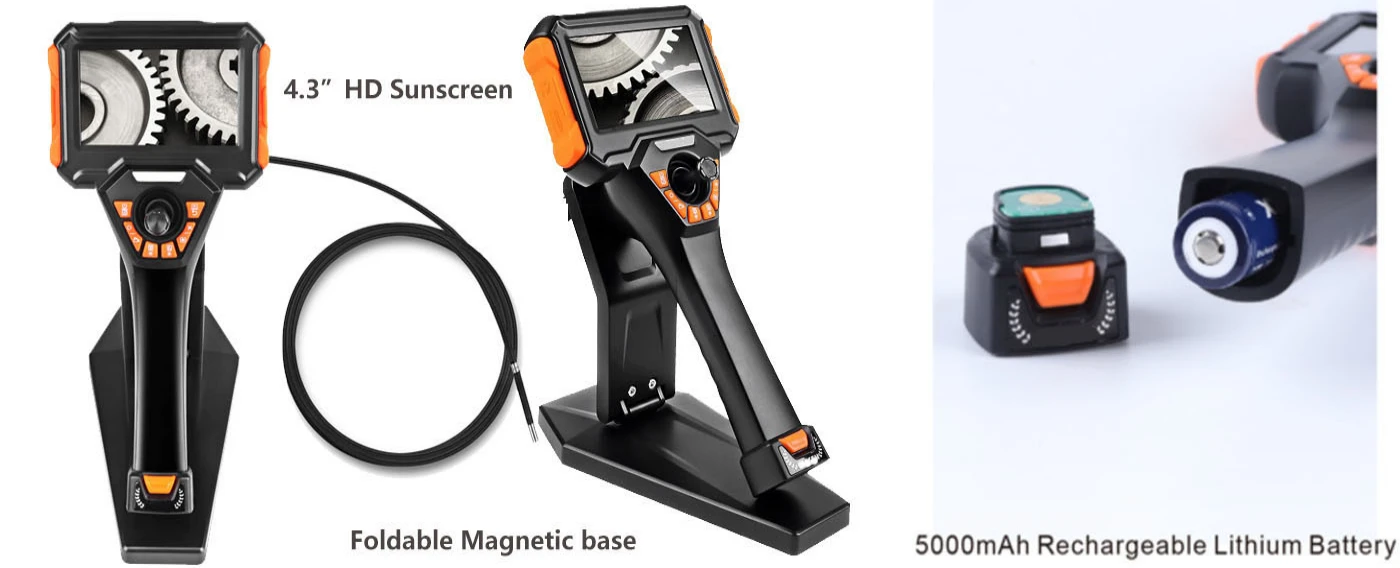

- 5000mAh Rechargeable Li-battery

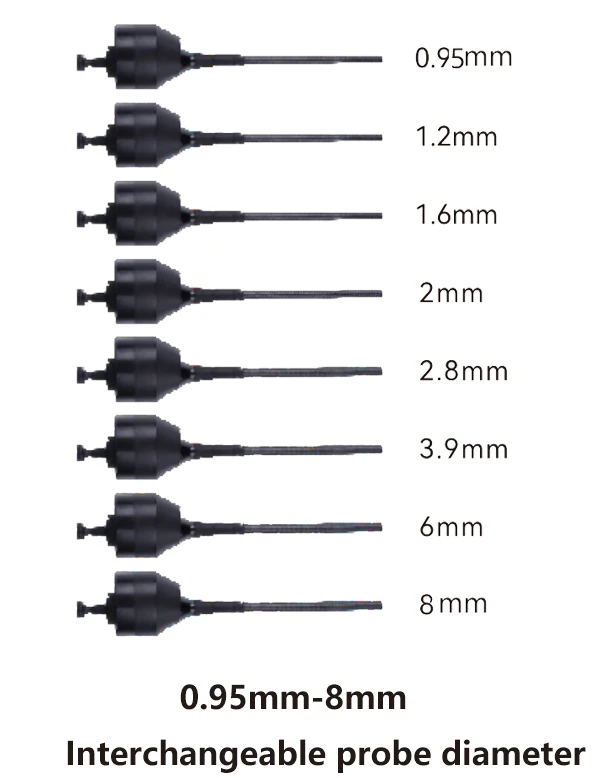

The BC Series is a ” 5.1-inch Classic All-Way Articulation HD Borescope”. Designed for automotive maintenance, industrial inspection and other fields. It features a four-way 360° articulation HD camera with adjustable lighting system, gives clear imaging even in dark internal scenes. Modular design, it supports probes with diameters ranging from 1.2mm to 8mm for wide applications. Equipped with a 5.1-inch HD display, joystick control, one-click photo/video capture. IP68 Waterproof rate makes safe use in wet environments and a 5000mAh battery supports continuous operation.

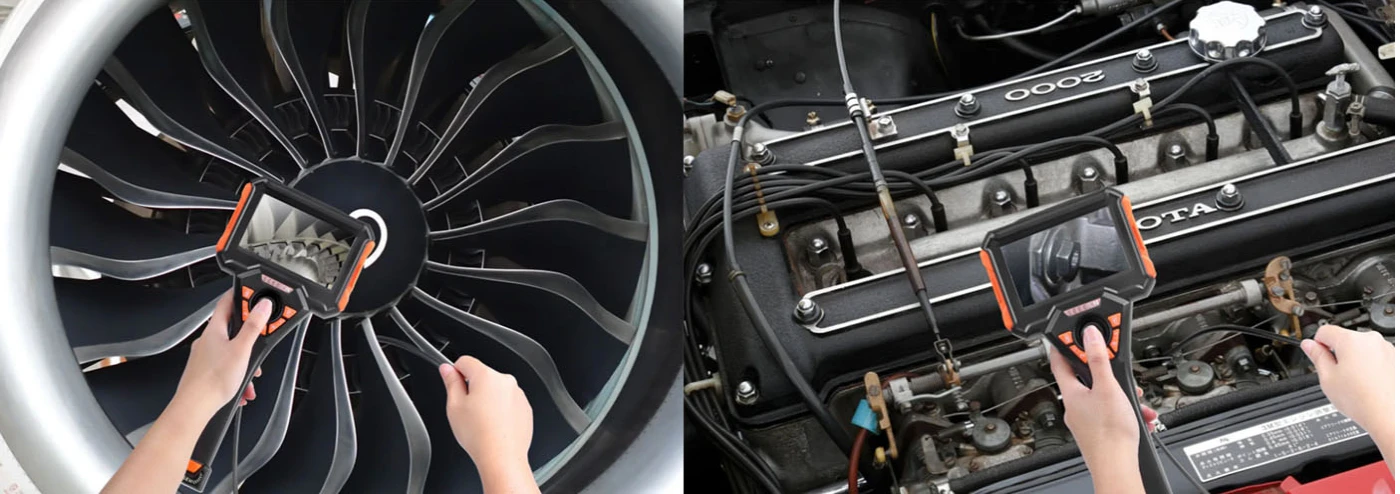

The BC Series 5.1-inch Classic All-Way Articulation HD Borescope is widely used in automotive, industrial, and aerospace fields. It fits engine carbon deposit checks, pipeline corrosion inspections, and aircraft component gap surveys. Used by maintenance technicians, industrial inspectors, and aerospace engineers, it avoids equipment disassembly, enables clear views of hidden areas via its articulated probe, lifting inspection efficiency and accuracy.
| Host system | ||||||||
| Screen size | 5.1-inch HD solar display | |||||||
| Display resolution | 1280*960 | |||||||
| Zoom In/Out | Support real-time 5X zooming in, image playback 9X zooming in | |||||||

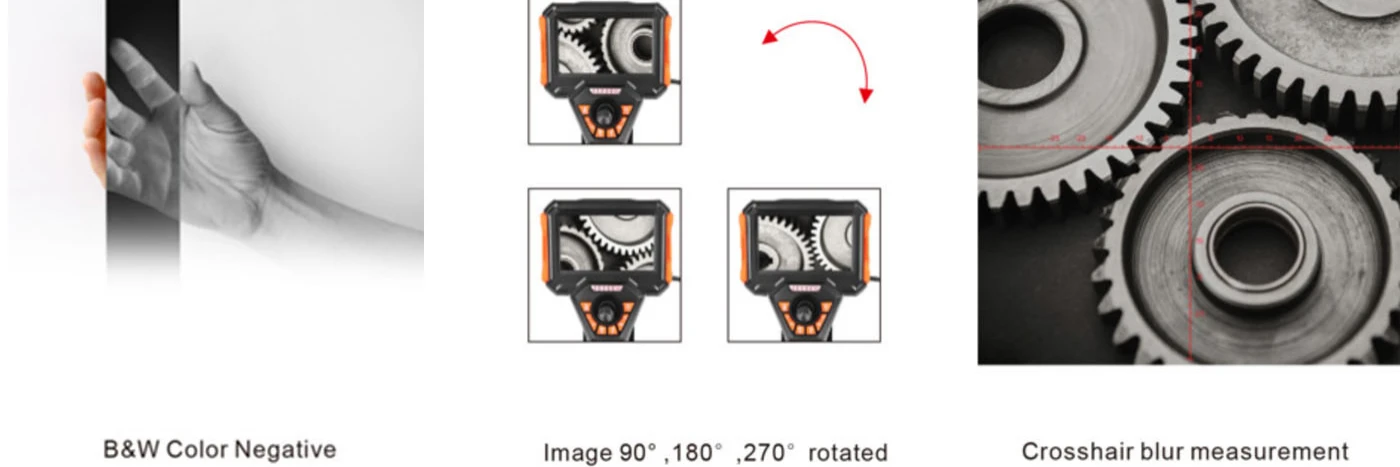

| Image Effect | B&W Color Negative | |||||||
| Image Format | BMP/JPEG | |||||||
| Video Format | MP4 | |||||||
| Image Rotation | Rotation by 0°, 90°, 180°, 270° | |||||||
| Image Preview | Look back using the list | |||||||
| Auxiliary measuring | Cross cursor reference line | |||||||
| File Storage | Standard TF card: 32G | |||||||
| Output Port | Mini HDMI | |||||||
| Language | Multiple | |||||||
| Host size | 318mm*142mm*50mm | |||||||
| Host weight | ≤0.6Kg (including battery) | |||||||
| Function | Photo/Video/Zoom/Auxiliary measuring | |||||||
| Camera System | ||||||||

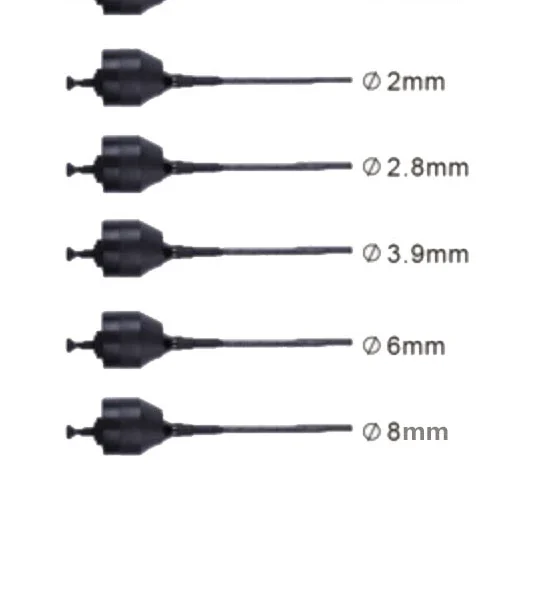

| Diameter | 8mm | 6mm | 3.9mm | 2.8mm | 2.0mm | 1.8mm | 1.6mm | 1.2mm |
| Camera pixel | 1.0 Mega | 0.52Mega | 0.16Mega | |||||
| Light | LED | |||||||
| Illuminance | 18000Lux | |||||||
| FOV | 120° | |||||||
| DOF | 8-150mm | 5-120mm | 3-50mm | |||||
| Steering Angle | Four-way 360° | / | ||||||
| Bending Angle | 150 ° | / | ||||||
| Probe Material | Hard wear resistant titanium alloy | |||||||
| Tube Material | Four layers of tungsten wire braided pipe | |||||||
| Tube Length | 1m/1.5m/2m/3m | 1m | ||||||
| Power Supply | ||||||||
| Battery Charging | DC5V 2A, 3.7V | |||||||
| Battery | Built-in 5000mAh Li-battery | |||||||
| Working time | 5 hours | |||||||
| Operating environment | ||||||||
| Host operating temperature | -10℃-50℃ | |||||||
| Probe operating temperature | -20-80℃ | |||||||
| Storage temperature | -20-60 ℃ | |||||||
| Relative humidity | 15-90% | |||||||
| Water/Dust Proof | Probe/tube: IP68; Host: IP54 | |||||||
| Configuration | ||||||||
| Standard configuration | 5.1-inch display articulating videoscope*1, Mini HDMI cable*1 | |||||||
| Charging cable*1, Li-battery *1, Charger*1, Toolbox*1, Stand*1 | ||||||||
