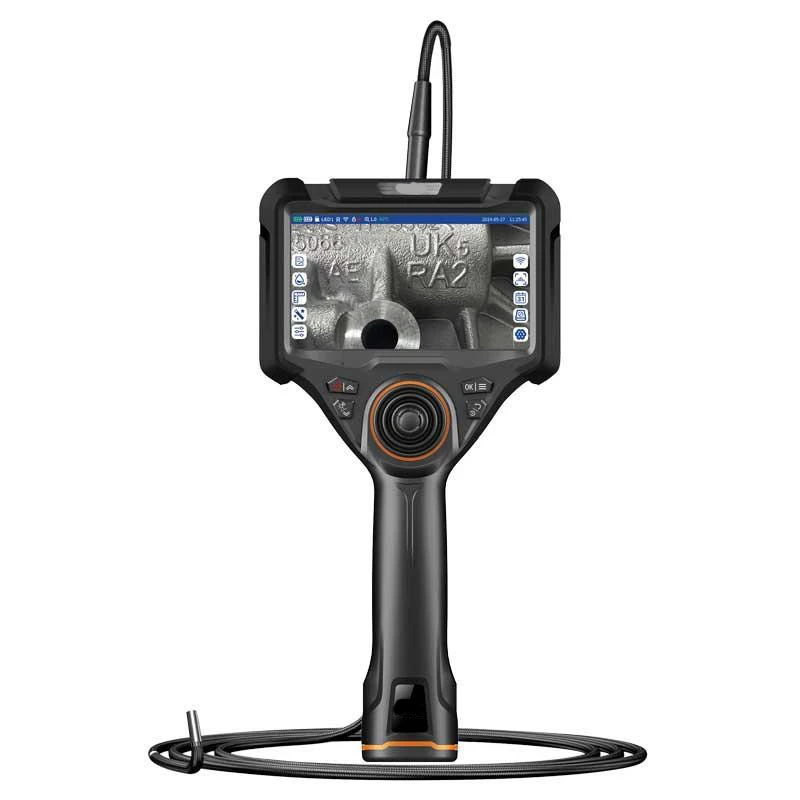

BM Series 360° Articulation 1080P HD Joystick Control 5” Multifunctional Borescope
360° Articulation 1080P HD Joystick Control
5” Multifunctional Borescope

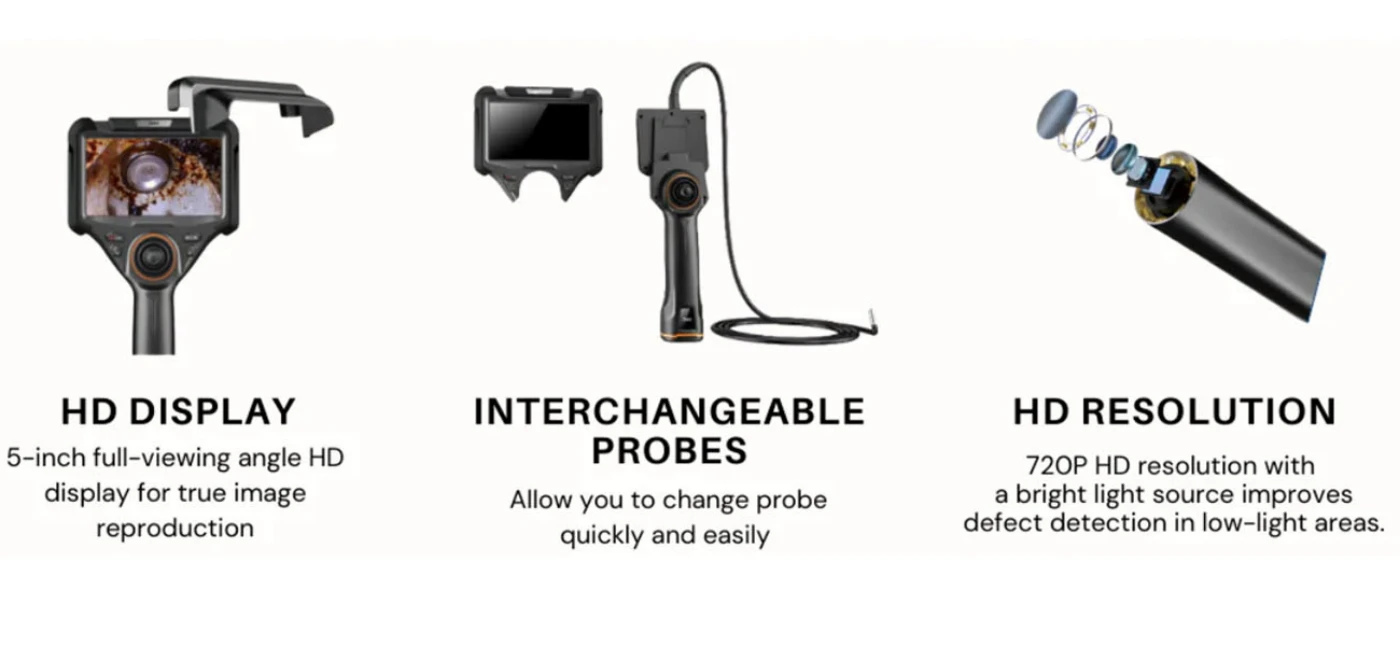

- 5inch IPS HD large screen
- Modular Design Detachable Probe & Display
- 1Mega Pixel 1080P HD camera
- All-way 360°Joystick control articulation
- One-click photo/Video capture

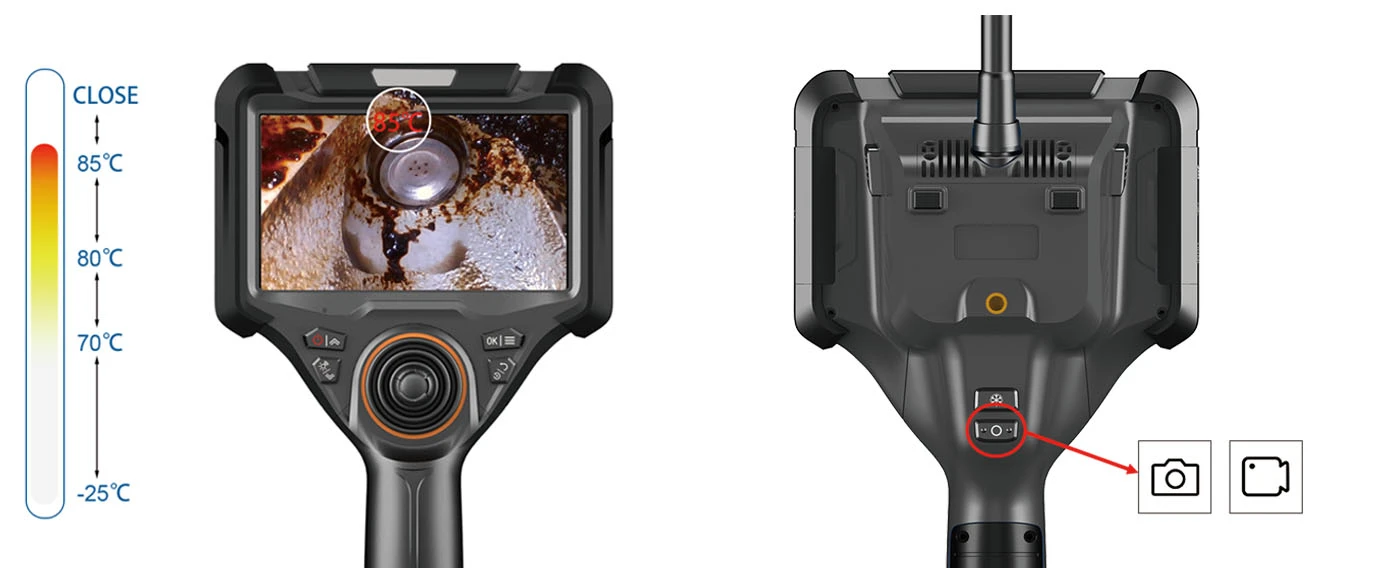

- High Temperature Warning
- WiFi transmission

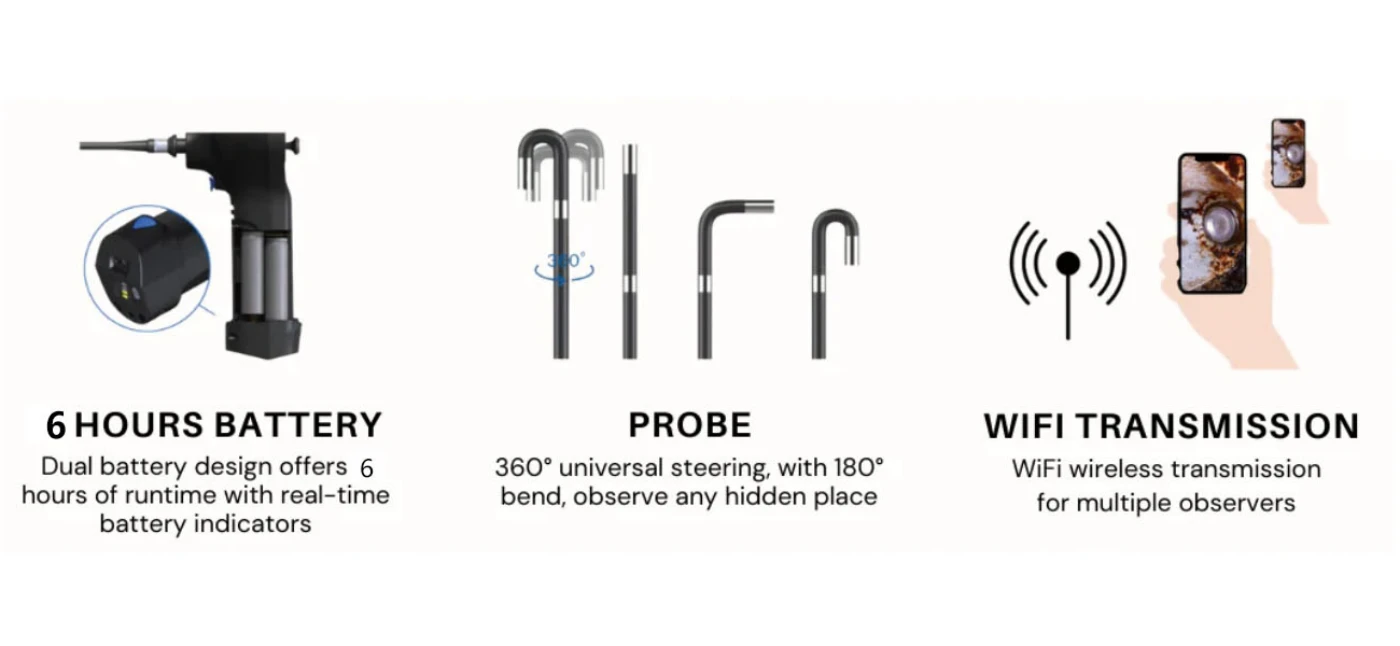

- Dual battery design, Up to 6hours
The BM Series is a ” 5-inch Multifunctional All-Way Articulation HD Borescope”. It features a four-way 360° Joystick control articulating HD camera with high bright adjustable LED lights gives crystal-clear images. With 5-inch high-definition full-view display to truly restore the detection image effect. High-temperature warning and IP67 waterproof rating ensures safety use in heated or wet environments. Modular design, and a plug-in quick-change pipeline system to achieve compatibility with multiple pipeline functions and is suitable for a variety of applications.
The BM Series 5-inch Multifunctional All-Way Articulation HD Borescope can be widely used in internal equipment inspection during mechanical maintenance, hidden space exploration in construction, and blind-spot checks for auto parts in car maintenance etc.. It’s for auto mechanics, maintenance engineers & other industrial practitioners. Viewing internal details without disassembly, locates faults fast, replaces high-risk inspections—boosts efficiency & safety
| Host system | ||
| Screen size | 5-inch IPS display | |
| Image Effect | Standard (default), black and white, warm light, cold light, negative film | |
| Photo/Video Format | JPG / MP4 | |
| Image Rotate | 0° / 180° / mirror image | |
| Image Adjustment | Brightness, Contrast, and Gamma adjustment | |
| Zoom In/Out | 4X | |
| Freeze | Fast freeze of images with one click | |
| Date Watermark | Turn it on to postmark the date directly into photos and videos | |
| Date Setting | Edit to adjust the device date | |
| Wireless Transmission（WiFi） | wireless access to device video data via a mobile terminal app | |
| Temperature function | Temperature real-time display, high temperature alarm | |
| Recording function (optional) | Record audio in real-time | |
| Compatibility | Interchangeable tube systems with different diameters/length | |
| File Storage | Standard TF card: 16G | |
| Output Port | HDMI, video output, Type-C | |
| Language | Multiple | |
| Host size | 280*143*81mm | |
| Host weight | ≤0.75Kg (including battery) | |
| Camera System | ||
| Diameter | 6mm | 3.9mm |
| Camera pixel | 1.0 Mega | |
| Image Resolution | 1920*1080 | 1280*720 |
| Video Resolution | 1920*1080 | 1280*720 |
| Light | High bright ceramic LED light | |
| Brightness Levels | 0-9 level cyclic adjustment | |
| FOV | 120° | |
| DOF | 10-100mm | |
| Steering Angle | Four-way 360° | |
| Bending Angle | max:190° | |
| Tube Material | wear-resistant tungsten alloy wire | |
| Tube Length | 1m/1.5m/2m/3m | 1m/1.5m/2m |
| Power Supply | ||
| Battery Charging | DC5V 1A, 3.7V | |
| Battery | Built-in 18650 Li-battery | |
| Working time | 6 hours | |
| Operating environment | ||
| Operating temperature | -30℃-50℃ | |
| Storage temperature | -30℃-50℃ | |
| Water/Dust Proof | Probe/tube: IP68; Host: IP54 | |
| Configuration | ||
| Standard configuration | 5-inch display articulating videoscope*1, | |
| USB cable*1,18650 battery *2, Charger*1, Toolbag*1 | ||
