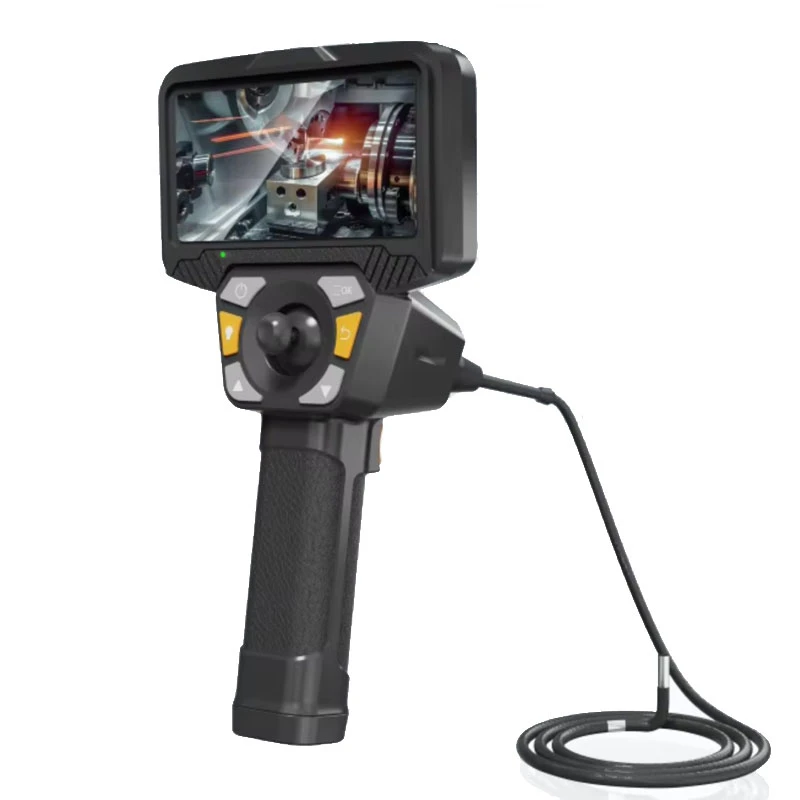

BI Series 360° Articulation 1080P HD Joystick Control 5” Intuitive Borescope
360° Articulation 1080P HD Joystick Control
5” Intuitive Borescope

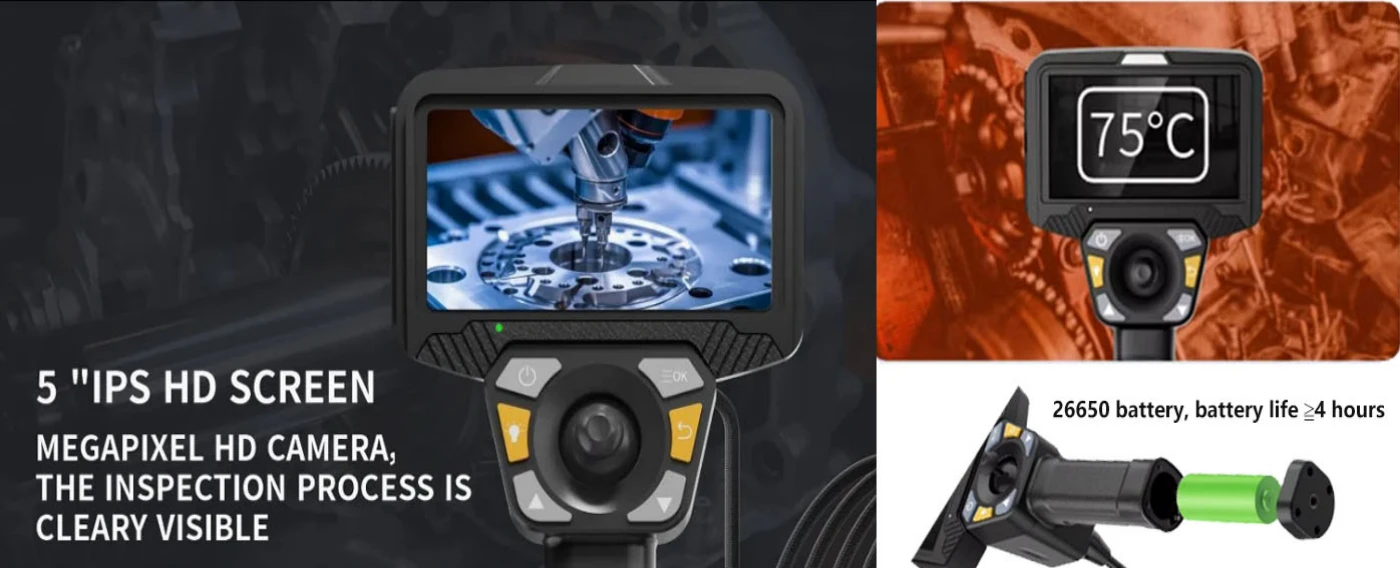

- 5inch IPS HD large screen

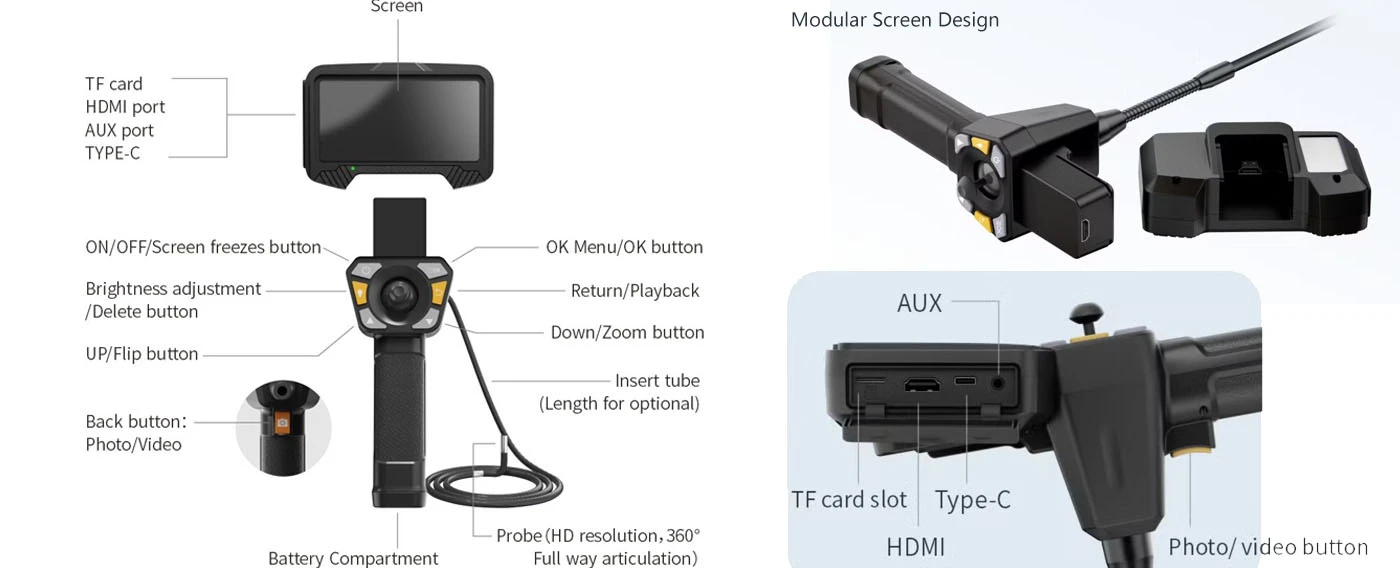

- Modular detachable display
- 1Mega Pixel 1080P HD camera

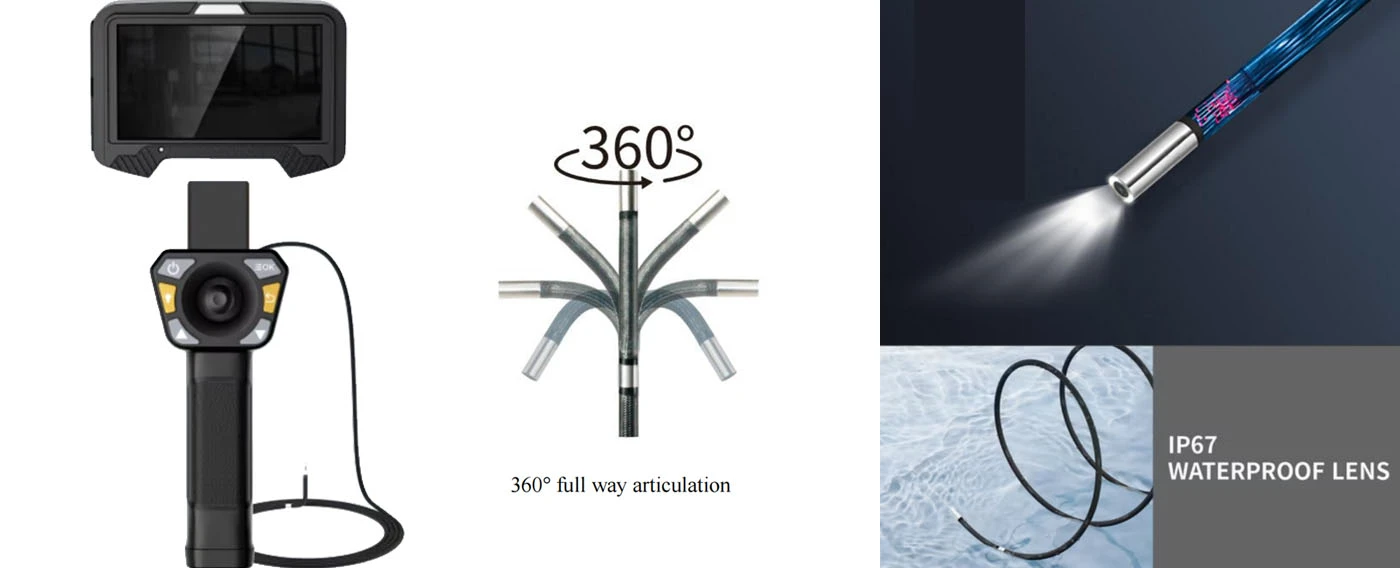

- All-way 360°Joystick control articulation
- IP67 Waterproof & Oil-proof
- One-click photo/Video capture
- High Temperature Warning
- 26650Rechargeable Li-battery
The BI Series is a ” 5-inch All-Way Articulation HD Borescope”. Designed for detailed inspections in hard-to-reach areas. It features a four-way 360° Joystick control articulating HD camera with high bright adjustable LED lights gives crystal-clear images. Available with 2.8mm/4mm/6mm 3 kinds of diameter size lens. High-temperature warning and IP67 waterproof rating ensures safety use in heated or wet environments. Detachable 5-inch HD large display, modular design—making it ideal for professional use in automotive, pipeline, manufacturing and equipment maintenance.
The BI Series 5-inch All-Way Articulation HD Borescope can be widely used in automobile maintenance, urban pipeline inspection, mechanical casting and electrical equipment maintenance and other fields. Ideal for automotive technicians, engineers, and maintenance professionals, it helps reach to the inaccessible internal parts, allowing for thorough inspections without disassembly, improving both efficiency and accuracy in your inspections.
| Host system | |||
| Screen size | 5-inch HD display | ||
| Image Effect | Freeze | ||
| Image Format | JPEG | ||
| Video Format | MOV | ||
| File Storage | Standard TF card: 32G, Support up to 128G | ||
| Output Port | TYPE-C | ||
| Language | Multiple | ||
| Host size | 265*140*132.7mm | ||
| Camera System | |||
| Diameter | 6mm | 4mm | 2.8mm |
| Camera pixel | 1.0 Mega | ||
| Light | LED | ||
| Illuminance | 15000Lux | ||
| FOV | 120° | ||
| DOF | 10mm-∞ | ||
| Steering Angle | Four-way 360° | ||
| Bending Angle | Tube length 1-2m:180 °, Tube length 3m:160 ° | ||
| Tube Material | Flexible Mental Tube | Tungsten Braided Tube | Tungsten Braided Tube |
| Tube Length | 1m/2m/3m | 1m/2m/3m | 1m/1.5m |
| Power Supply | |||
| Battery Charging | DC5V 1A, 3.7V | ||
| Battery | Built-in 26650 Li-battery | ||
| Working time | 4 hours | ||
| Operating environment | |||
| Host operating temperature | -10℃-50℃ | ||
| Probe operating temperature | -20-70℃ | ||
| Storage temperature | -20-60 ℃ | ||
| Relative humidity | Max 90%，No condensation | ||
| Water/Dust Proof | Probe/tube: IP67; Host: IP54 | ||
| Configuration | |||
| Standard configuration | 5-inch display articulating videoscope*1, Mini HDMI cable*1 | ||
| Charging cable*1, 26650 battery *1, Charger*1, Packing case*1 | |||
