Special Inspection

Industry Overview

The special equipment inspection industry is increasingly relying on non-destructive visual testing to enhance safety and detection accuracy. Traditional inspections for boilers, pressure vessels, and pipelines often face blind spots and high risks, as they require manual entry into confined spaces or destructive disassembly. Known as the “microscopic detective” in special inspections, industrial borescopes have become an indispensable tool for inspection teams. With high-definition imaging and flexible probes, they can penetrate narrow and harsh environments to detect weld defects, corrosion, cracks, and residual foreign objects inside equipment. They enable precise defect measurement and real-time data recording, providing reliable evidence for compliance inspections and preventive maintenance while eliminating the risk of secondary damage to equipment.

Applications

The industrial borescope is a professional non-destructive testing tool, enabling clear, real-time visual inspection of internal, hidden and hard-to-reach parts of special equipment without damaging the structure, thus ensuring operational safety and compliance.
Pressure Equipment Inspection: Inspect inner walls of boilers, pressure vessels and pipelines for corrosion, scaling, cracks, weld defects and material fatigue; detect slag accumulation, tube sheet leakage and baffle damage in heat exchangers and condensers.
Electromechanical Equipment Inspection: Examine motors, generators, reducers and pumps internally for bearing wear, gear ablation, winding insulation aging and foreign matter intrusion; check component integrity inside electrical enclosures and control cabinets.
Hoisting Machinery Inspection: Detect cracks, wear and deformation in internal structures of crane hooks, pulleys, wire rope reels and reducer housings; inspect internal lubrication condition and component tightness of hoisting mechanisms.
Hidden Danger Investigation and Life Evaluation of Special Equipment: Locate internal faults undetectable by conventional methods to support risk assessment; assist in evaluating equipment residual service life by detecting internal damage degree.

Selection Guide

Selecting industrial borescopes for the special inspection industry focuses on non-destructive testing accuracy, harsh working condition adaptability and testing data compliance. It should meet the inspection needs of special equipment such as pressure vessels, boilers and pressure pipelines, and comply with standard non-destructive testing specifications and on-site testing requirements. The key selection points are as follows:

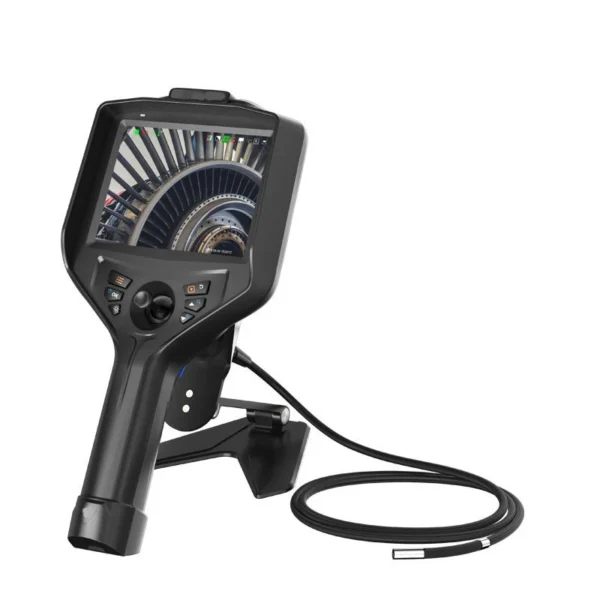

Probe and Imaging Configuration：Prioritize modular probes – ultra-thin variants for narrow cavity inspections, regular ones for pressure vessels and pipelines. Equipped with HD sensors of at least 1 megapixel and wide-angle lenses (≥90°), they clearly capture micro-defects like cracks, corrosion and weld flaws. Paired with high-brightness dimmable LED cold light sources, it ensures sharp, clear imaging even in dim environments.
Protection and Environmental Adaptability: The whole machine has a protection grade of ≥IP65 (IP67 optional for high temperature and humidity). The titanium alloy probe shell and multi-layer tungsten wire braided wear-resistant coating on the probe cable enable oil/corrosion resistance and scratch resistance, adapting to oily, dusty and humid environments. For high-temperature component inspection, select high-temperature resistant probes (≥200℃); for strong electromagnetic interference scenarios, choose EMI-resistant models to prevent image distortion.
Functions: Standard with image freeze, photo, video recording and large-capacity storage for testing data retention. High-precision 3D measurement (accuracy ≤0.01mm) is optional for quantitative analysis of defect sizes. The testing software supports image zoom, comparison and parameter adjustment.

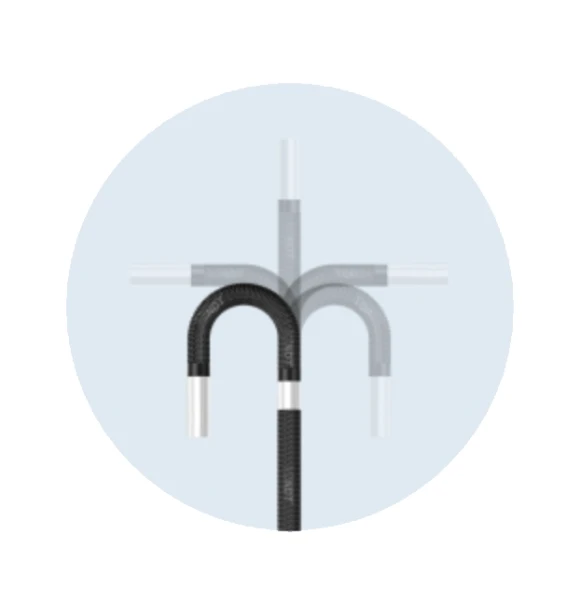

Operation and On-site Practicality: Opt for a handheld HD screen of 4.3 inches or above with outdoor visibility. The probe supports 360° omnidirectional steering for flexible navigation through complex channels, insertion tube length 1–10m optional. It features a battery life of ≥4 hours, fast charging/battery replacement, and a shock-resistant body, suitable for various scenarios like outdoor and workshop sites.

Value Proposition

The industrial borescope is an indispensable tool in the special inspection industry, enabling non-destructive testing of closed or hard-to-reach components. It provides clear high-definition visuals, helping inspectors quickly identify hidden defects, assess equipment safety, and avoid blind disassembly—greatly improving inspection efficiency, reducing costs, and ensuring compliance with safety standards.
Pressure Vessels: It inspects internal corrosion, cracks, and material fatigue of pressure vessels, detects weld defects and medium deposits, and evaluates structural integrity to prevent leakage or explosion risks.
Boilers & Pipelines: It checks boiler tubes for scaling and erosion, and pipeline internals for blockages, corrosion, and weld flaws, ensuring stable operation of thermal and fluid systems.
Special Equipment Joints: It detects hidden faults in joints of elevators, cranes and other equipment, such as wear, looseness and cracks, safeguarding equipment operation safety.
